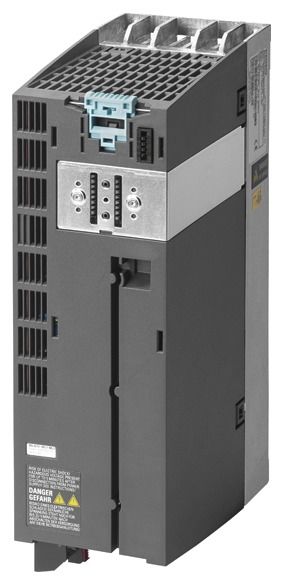

Siemens 6SL32101NE238AG1 SIEM 6SL3210-1NE23-8AG1 SINAMICS G120 Po 3AC380-480V 47-63Hz 18.5kW

SINAMICS G120 Power Module PM230 with integrated class A filter, protection class IP20, 3AC380-480V+10/-10% 47-63Hz, power low overload: 18.5kW at 150% 3S, 110% 57S, 100% 240S, ambient temperature 0 to +40°C (LO) 355x 140x 165 (HxWxD), FSC without control unit and operator unit approved for CU240B/E-2 and CU230P-2 from firmware version V4.4 Power Module SINAMICS Power Module PM230, protection class IP20, the specialist for building technology for the SINAMICS G120P frequency converter. The SINAMICS power unit, in combination with the appropriate control unit CU230P-2 and an IOP/IOP-2 (Intelligent Operator Panel) or BOP-2 (Basic Operator Panel) operator panel, produces the functional SINAMICS G120P frequency converter. The PM230 (protection class IP20) is a built-in device for the control cabinet and generates only minimal network perturbations and apparent power losses. In addition to the energy benefits, the environment is also protected. The PM230 Power Module (protection class IP20) supplies the motors in a power range from 0.37 kW up to 75 kW. Frame sizes FSA to FSF of the PM230 Power Module protection class IP20 and push-through variants are available with an integrated Class A line filter for installations in accordance with Category C2 according to EN 61800-3 or without an integrated line filter. The following accessories are included in the delivery as standard: shield plates and shield connection kits for the EMC-compliant connection of power and control cables, as well as connection plugs for the line and motor output for frame sizes FSA to FSC. SINAMICS - the integrated drive family for every application area
Type: 6SL3210-1NE23-8AG1
