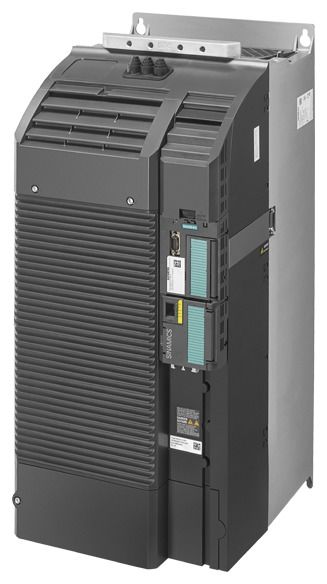

Siemens 6SL32101KE317AF1 SINAMICS G120C Rated power: 90kW 3AC380-480V
|
9.878,76 EUR 10.294,71 EUR |
|||||||||||
|
( 11.755,72 EUR incl. VAT ) ≈ £8,475.98 | ≈ $11,449.48 plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1587447 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 6SL32101KE317AF1 | ||||||||||
| UPC/EAN: | 4042948673300 | ||||||||||
| Weight: | 64 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Frequency converter, soft starter from SiemensFurther products in category Frequency converter, soft starter
All products of Siemens
Product information for Siemens 6SL32101KE317AF1:
SINAMICS G120C Rated power: 90.0kW with 150% overload for 3 sec. 3AC380-480V+10/-20% 47-63Hz integrated filter class AI/O interface: 6DI, 2DO, 1AI, 1AO Safe-Torque-Off integrated Fieldbus integrated:PROFINET-PN Protection class IP20/UL Open Type Size: FSF 708x 305x 357 (HxWxD) external 24V frequency converter SINAMICS G120C the compact and versatile frequency converter with optimal functionality for the requirements of different applications, such as for conveyor belts, mixers, pumps, fans and compressors. The already integrated certified safety function Safe Torque Off (STO), STO via terminal/with PROFIsafe, means that additional external components are not required. Operation/commissioning is quick and easy using a PC via USB or a Basic Operator Control Panel or Intelligent Operator Panel. The drives can be networked using standard field bus systems (PROFINET, PROFIBUS) and there is a card slot for cloning parameter sets for intuitive series commissioning. To increase energy efficiency, the converter is equipped with a precise, energy-optimized SLVC vector control and has an automatic flux reduction. The SINAMICS G120C covers the three-phase voltage range between 380 V and 480 V and is available in seven sizes with a power range from 0.55 kW to 132 kW. The SINAMICS G120C frequency converter can be individually adapted to the user's requirements using various options such as connection cables, line filters, braking resistors, line reactors and other accessories. The variable-speed devices are an integral part of Totally Integrated Automation (TIA) and work optimally with SIMATIC controllers, for example. SINAMICS - simply my drive.
Type: 6SL3210-1KE31-7AF1
Type: 6SL3210-1KE31-7AF1
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Siemens 6SL32101KE317AF1 SINAMICS G120C Rated power: 90kW 3AC380-480V?
The article Siemens 6SL32101KE317AF1 SINAMICS G120C Rated power: 90kW 3AC380-480V is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 6SL32101KE317AF1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siemens 6SL32101KE317AF1 SINAMICS G120C Rated power: 90kW 3AC380-480V always at the best possible price. We can give you a discount of 2% on Siemens 6SL32101KE317AF1 SINAMICS G120C Rated power: 90kW 3AC380-480V if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Siemens 6SL32101KE317AF1 SINAMICS G120C Rated power: 90kW 3AC380-480V we can offer you a price of 9.804,67 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Siemens 6SL32101KE317AF1 SINAMICS G120C Rated power: 90kW 3AC380-480V
 |
Siemens JJY:023454020001 Heine braking resistor for power modules
Heine braking resistor for PM240-2 FSF power module P_max=77kW/12S/5% ED R=7.1 Ohm P_duration=3850W This braking resistor consists of the 2 braking resistors: JJY:023422620001 and JJY:023434020001, ... Lieske Part No.: 325619 Mfg Part No: JJY:023454020001 |
1.545,50 EUR 1.610,57 EUR
 ≈ £1,326.04 | ≈ $1,791.23
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Siemens 6SL32550AA004CA1 6SL3255-0AA00-4CA1, operating unit BOP Bas
SINAMICS G120 Basic Operator Panel (BOP-2) Basic operating unit for direct connection to the converter. SINAMICS Basic Operator Panel (BOP-2). Local operation, monitoring, commissioning, diagnostics. Lieske Part No.: 525654 Mfg Part No: 6SL32550AA004CA1 Type: 6SL3255-0AA00-4CA1 |
50,43 EUR 52,55 EUR
≈ £43.27 | ≈ $58.45
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
|
 |
Siemens 6SL32560AP000JA0 SIEM 6SL3256-0AP00-0JA0 SINAMICS G120 TU 6SL3256-0AP00-0JA0
SINAMICS G120 door mounting kit IP55/ UL Type 12 for Intelligent Operator Panel IOP (IP54), IOP-2 (IP55) and Basic Operator Panel BOP-2 (IP55), includes seal, fastening material and connecting cable ... Lieske Part No.: 645777 Mfg Part No: 6SL32560AP000JA0 Type: 6SL3256-0AP00-0JA0 |
40,33 EUR 42,03 EUR
≈ £34.60 | ≈ $46.74
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Siemens 6SE64003TC145FD0 6SE6400-3TC14-5FD0 MICROMASTER 4, output choke 380-480V 3AC 145A
MICROMASTER 4 output choke 380-480V 3AC 145A (HO/CT)/178A (LO/VT) stand-alone FS F-0.2 MH Electrical choke SINAMICS output choke for the modular frequency converter SINAMICS G120, as well as the ... Lieske Part No.: 653795 Mfg Part No: 6SE64003TC145FD0 Type: 6SE6400-3TC14-5FD0 |
804,76 EUR 838,65 EUR
≈ £690.48 | ≈ $932.72
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
|
|
Siemens 6SL32550AA004HA1 6SL3255-0AA00-4HA1 Handheld f.IOP-2 enthält IOP-2 Handheldgehäuse
Handheld für Intelligent Operator Panel IOP-2 enthält IOP-2, Handheldgehäuse Stromversorgung (International) Akkus (4xAA) RS-232 Verbindungskabel (3m) und USB-Kabel (1m) Hinweis: KC-Zertifikat ... Lieske Part No.: 696510 Mfg Part No: 6SL32550AA004HA1 Type: 6SL3255-0AA00-4HA1 |
372,74 EUR 388,44 EUR
≈ £319.81 | ≈ $432.01
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Siemens 3NA3142 LV HRC fuse 224A Gr.1, gl / gg liv
NH fuse link, NH1, In: 224 A, gG, Un AC: 500 V, Un DC: 440 V, front indicator, live grip lugs NH fuse link SENTRON 3NA3 for selective line and system protection.The NH fuse system offers effective ... Lieske Part No.: 724135 Mfg Part No: 3NA3142 |
50,73 EUR 52,87 EUR
≈ £43.53 | ≈ $58.80
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Siemens 6SL3255-0AA00-4JA2 SINAMICS Intelligent Operator Panel IOP-2
SINAMICS G Intelligent Operator Panel IOP-2 for SINAMICS G120, G120P G110M, G110D, G120D, G120C ET 200PRO FC-2 Language support: German, English, French Italian, Spanish Portuguese, Dutch Swedish, ... Lieske Part No.: 1089441 Mfg Part No: 6SL32550AA004JA2 Type: 6SL3255-0AA00-4JA2 |
199,68 EUR 208,09 EUR
≈ £171.33 | ≈ $231.43
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
|
 |
Siemens 6SL32550AA005AA0 SINAMICS G120, SMART ACCESS
SINAMICS G120 Web Server Module Web server-based operator panel with wireless client connection. SINAMICS G120 Smart Access Module. Mobile. Clever. Faster. With the SINAMICS G120 Smart Access Module, ... Lieske Part No.: 1100672 Mfg Part No: 6SL32550AA005AA0 Type: 6SL3255-0AA00-5AA0 |
199,68 EUR 208,09 EUR
≈ £171.33 | ≈ $231.43
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
