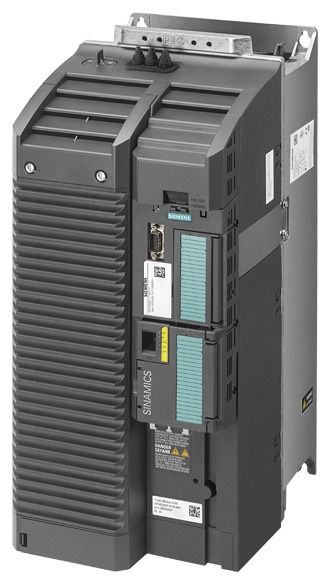

Siemens 6SL32101KE270AF1 SINAMICS G120C Rated power: 37kW with 150% overload

SINAMICS G120C Rated power: 37.0kW with 150% overload for 3 sec. 3AC380-480V+10/-20% 47-63Hz integrated filter class AI/O interface: 6DI, 2DO, 1AI, 1AO Safe-Torque-Off integrated Fieldbus integrated:PROFINET-PN Protection class IP20/UL Open Type Size: FSD 472x 200x 237 (HxWxD) external 24V frequency converter SINAMICS G120C the compact and versatile frequency converter with optimal functionality for the requirements of different applications, such as for conveyor belts, mixers, pumps, fans and compressors. The already integrated certified safety function Safe Torque Off (STO), STO via terminal/with PROFIsafe, means that additional external components are not required. Operation/commissioning is quick and easy using a PC via USB or a Basic Operator Control Panel or Intelligent Operator Panel. The drives can be networked using standard field bus systems (PROFINET, PROFIBUS) and there is a card slot for cloning parameter sets for intuitive series commissioning. To increase energy efficiency, the converter is equipped with a precise, energy-optimized SLVC vector control and has an automatic flux reduction. The SINAMICS G120C covers the three-phase voltage range between 380 V and 480 V and is available in seven sizes with a power range from 0.55 kW to 132 kW. The SINAMICS G120C frequency converter can be individually adapted to the user's requirements using various options such as connection cables, line filters, braking resistors, line reactors and other accessories. The variable-speed devices are an integral part of Totally Integrated Automation (TIA) and work optimally with SIMATIC controllers, for example. SINAMICS - simply my drive.
Type: 6SL3210-1KE27-0AF1
