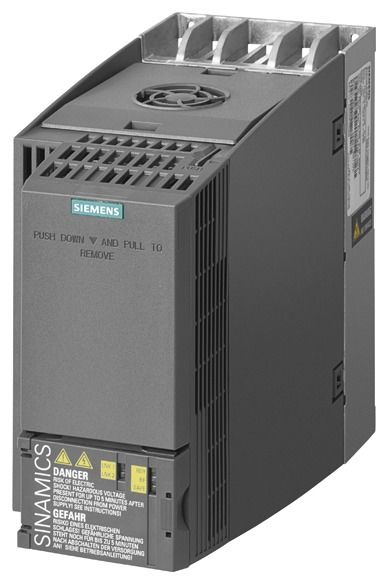

Siemens 6SL32101KE217AF1 6SL3210-1KE21-7AF1 SINAMICS G120C N, 150% overload for 3 seconds. 3AC380-480V +10

SINAMICS G120C Rated power: 7.5kW with 150% overload for 3 sec. 3AC380-480V+10/-20% 47-63Hz integrated filter class AI/O interface: 6DI, 2DO, 1AI, 1AO Safe-Torque-Off integrated Fieldbus integrated: PROFINET-PN Protection class IP20/UL Open Type Size: FSB 196x 100x 225.4 (HxWxD) external 24V frequency converter SINAMICS G120C. Versatile. User-friendly. Compact. For the requirements of different applications, such as conveyor belts, mixers, pumps, fans and compressors. The already integrated certified safety function Safe Torque Off (STO), STO via terminal/with PROFIsafe, means that additional external components are not required. Commissioning/operation is quick and easy using a PC via USB, locally using a Basic Operator Control Panel or Intelligent Operator Panel, or wirelessly using the SINAMICS G120 Smart Access Module. The drives can be networked using standard fieldbus systems (PROFINET, PROFIBUS) and there is a card slot for cloning parameter sets for intuitive series commissioning. To increase energy efficiency, the converter is equipped with a precise, energy-optimized SLVC vector control and has automatic flux reduction. The SINAMICS G120C covers the three-phase voltage range 3AC 380 V to 480 V and is available in seven sizes in a power range from 0.55 kW to 132 kW. The SINAMICS G120C frequency converter can be individually adapted to the user's requirements using various options such as local or mobile control units, connection cables, line filters, braking resistors, line reactors and other accessories. The variable speed devices are an integral part of Totally Integrated Automation (TIA) and work perfectly with SIMATIC controllers, for example. The all-rounder SINAMICS G120C is the successor product to the MICROMASTER 420 frequency converter. SINAMICS - simply my drive.
Type: 6SL3210-1KE21-7AF1
