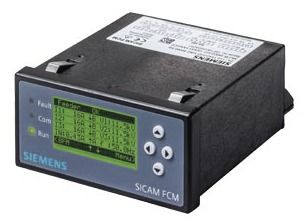

Siemens 6MD2322-1AA00-1AA0 short-circuit and earth fault indicator, directional content_copy

Short-circuit and earth fault indicator with direction indication, voltage measurement via capacitive voltage dividers (LRM voltage testing systems), for low-power current sensors in accordance with IEC 61869-10 and IEC 60044-8, 1 digital input, 2 digital outputs, measurement/calculation of the values U, I, P, Q, S, f, cos phi, energy meter values, communication Modbus RTU, power supply DC 24-250 V/AC 230 V Feeder Condition Monitor ¿ Digital short-circuit indicator with measuring function for medium-voltage switchgear. The key to continuous improvement of the power supply is precise knowledge of the relevant conditions of the local power supply network. Functionality: The SICAM FCM (Feeder Condition Monitor) is a short-circuit and earth fault indicator with direction indication that works with protection algorithms and small signal converter technology in accordance with IEC 60044-8 / IEC 61869-10 or via conventional 1 A/5 A measuring transformers. Alternatively, the SICAM FCM can also be connected to a capacitive voltage tap, thus enabling cost-effective directional fault detection in the cable network. In addition, the SICAM FCM offers the option of providing current measured values via the integrated Modbus RTU interface, thus ensuring a precise assessment of the distribution network. Cost-effective measuring device for use in low-voltage switchgear. The SICAM FCM (Feeder Condition Monitor) is also an impressive cost-effective power meter in the low-voltage network. With its low installation height, it is optimized for installation in LV switchgear panels.
Type: 6MD2322-1AA00-1AA0
