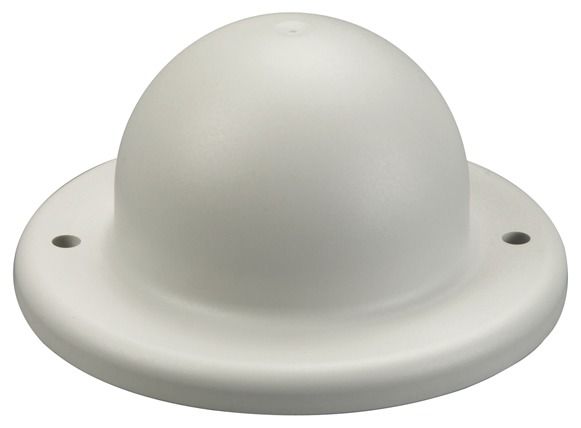

Siemens 6GK57956MN100AA6 6GK5795-6MN10-0AA6 IWLAN Antenna ON, omni-directional characteristic

ANT795-6MN antenna with omnidirectional characteristics, including N-Connect female connector: 6/8dBi, IP65 (-40-+70°C), WLAN 2.4/5GHz and private 5G networks, observe Wi-Fi compliance and country approvals, installation on roofs and vehicles, compact paper instructions in German/English, scope of delivery: 1x ANT795-6MN, the assembly aid 6GK5795-6MN01-0AA6 is available for assembly. SCALANCEAntennaAntenna ANT795-6MNUse for Industrial Wireless LAN (IWLAN) and WLAN according to IEEE 802.11 at 2.4 GHz and 5 GHz with data rates of up to 450 Mbit/s to optimize the transmission and reception conditions. The antenna is connected to access points or clients via an IWLAN antenna connection cable. Examples of use: ¿ Illumination of an area with a mast in the middle for mounting the antennas, ¿ Installation of the antenna on the roof of driverless transport systems for reliable data exchange with the vehicles, ¿ Comprehensive illumination of a production cell or a robot station. ¿ By concentrating the radio field around the antenna, the quality of the connection is improved. ¿ Good transmission properties even directly above/below the antenna. ¿ Flexible installation options: on a control cabinet, on a roof or even under a roof. ¿ Investment protection through conformity with the globally recognized standard IEEE 802.11. ¿ Cost-effective connection to devices in remote, difficult to access or aggressive environments.
Type: 6GK5795-6MN10-0AA6
