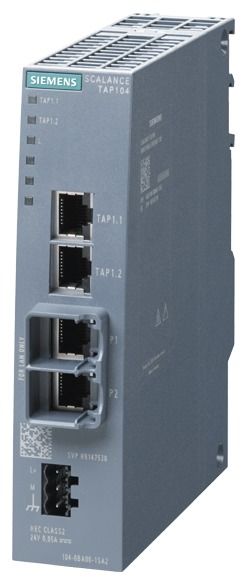

Siemens 6GK51040BA001SA2 SCALANCE TAP104 Test Access Port for telegram export

SCALANCE TAP104 test access port for telegram forwarding, 2 x RJ45 ports, 10/100MBit/s, LED diagnostics, 24V DC power supply, manual. SCALANCE TAP104 test access port, 2x 10/100MBit/s RJ45 network ports, 2x 10/100 Mbit/s RJ45 diagnostic ports for forwarding data traffic. Space-saving installation in the control cabinet in machine-related applications. Simple and cost-effective TAP solution for forwarding data traffic from both transmission directions. No interference with communication due to the integration of the TAP104 between two active network participants. Voltage-free operation without interference with communication, as activation only occurs when telegrams need to be forwarded for diagnostics. Robust network connections with industrial-grade RJ45 connectors with locking on the housing (retaining collar). TAP ports in RJ45 without retaining collar for easy connection and easy differentiation between diagnostic and network ports. Diagnostics on the device via LED (power, data traffic on TAP port). Unmanaged Test Access Port (TAP), DC 24 V, 2x 10/100MBit/s RJ45 ports electrical. Extensive accessories such as SITOP PSU100C 24 V/0.6 A for regulated power supply, a desktop stand for table mounting and a mounting frame for 19-inch racks, RJ45 connectors and various cable variants (also pre-assembled) with stripping tool round off the system.
Type: 6GK5104-0BA00-1SA2
