Siemens 6ES75111CK010AB0 6ES7511-1CK01-0AB0 SIMATIC S7-1500 compact CPU 1511C-1 PN content_copy

The Siemens SIMATIC S7-1500 Compact CPU Type 1511C-1 PN (manufacturer part number 6ES7511-1CK01-0AB0) is a central processing unit for industrial automation systems. It serves as a control device in automation systems and integrates digital and analog inputs and outputs directly into the CPU, creating a compact and cost-efficient solution for small to medium-sized applications. The CPU is designed for operation with the SIMATIC STEP 7 Professional software and requires a SIMATIC Memory Card for functionality, which is not included in the delivery scope.

Applications
The CPU 1511C-1 PN is suitable for applications requiring an integrated control system with digital and analog signals, as well as fast counting and pulse functions. Typical use cases include machine control, manufacturing systems, packaging technology, or process engineering, where fast response times and high reliability are required. The integrated PROFINET IRT interface enables time-critical communication in networked automation environments.

Functions and Features in Detail
The CPU features 16 digital inputs and 16 digital outputs, used for binary signals such as switches, pushbuttons, or relays. Additionally, it includes 5 analog inputs and 2 analog outputs to capture or control continuous measurement values such as pressure, temperature, or current strength. The CPU supports 6 fast counters, suitable for precise pulse counting, for example in speed measurement or positioning applications. Furthermore, 4 fast outputs for PTO (Pulse Train Output), PWM (Pulse Width Modulation), or frequency output are available to control devices such as stepper motors or frequency inverters. The integrated front connector technology with Push-In design simplifies wiring and reduces installation time.

Technology Explained Simply
The CPU operates with a supply voltage of 24 V DC, which is standard in industrial electronics. The working memory is 175 KB for the control program and 1 MB for data processing, sufficient for medium-sized control applications. The PROFINET IRT interface with an integrated 2-port switch enables deterministic communication with a bit execution time of 60 ns, which is crucial for time-critical applications. Communication occurs via Ethernet, allowing the CPU to be integrated into existing networks. The requirement for a SIMATIC Memory Card is essential for operation, as it stores program and configuration data.

Compatibility and Accessories
The CPU is compatible with various accessories that support installation and operation. These include, for example, the stripping tool 6GK1901-1GA00 FASTCONNECT, PROFINET RJ45 connectors 6GK1901-1BB10-2AA0, and various SIMATIC Memory Cards such as the 6ES7954-8LT04-0AA0 (32 GB) or 6ES7954-8LE04-0AA0 (12 MB), which can be selected based on requirements. For wiring, cables such as the 6XV1812-8A ENERGY cable (2x0.75 mm²) or the TP installation cable 6XV1840-2AH10 are suitable. The shielding kit 6ES7590-5CA10-0XA0 can be used to improve EMC protection measures. For mounting in enclosures, the front connector kit 6ES7592-1BM00-0XA0 with Push-In technology is available.

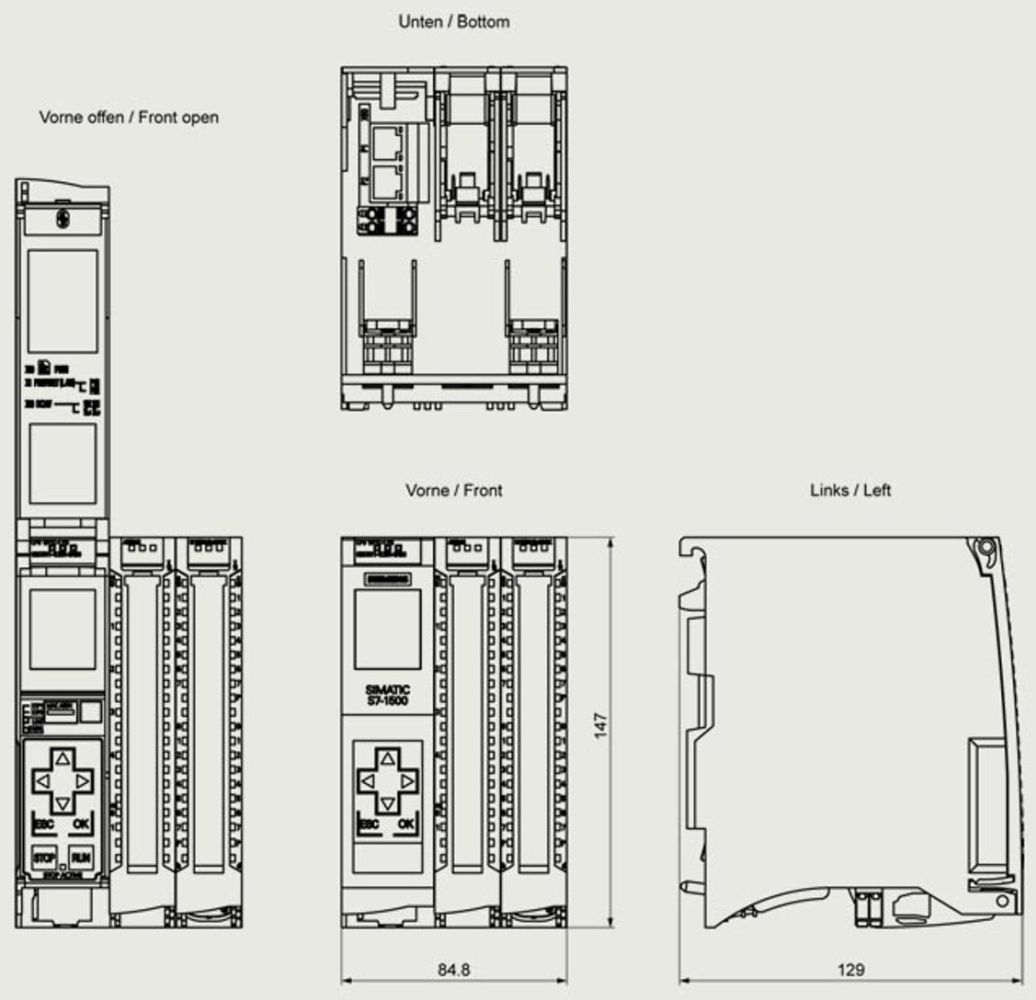

Mounting and Installation
The CPU is mounted in standard enclosures and requires secure fastening. Wiring is done via the integrated front connector with Push-In technology, enabling quick and secure connections. Power supply is via 24 V DC, with wiring to be performed according to safety regulations. The PROFINET connection is established via an Ethernet cable, and the use of shielded cables is recommended to minimize interference. Configuration is performed using the SIMATIC STEP 7 Professional software in the TIA Portal.

Operational Advantages
The CPU 1511C-1 PN offers high system performance with short response times, increasing productivity in automation systems. The integrated I/Os reduce the number of required modules and lower installation and maintenance costs. Seamless integration into the TIA Portal enables unified project engineering and maintenance, shortening the ramp-up time for new systems. The use of SIMATIC Memory Cards ensures secure storage of control data and simplifies data backup and recovery.
