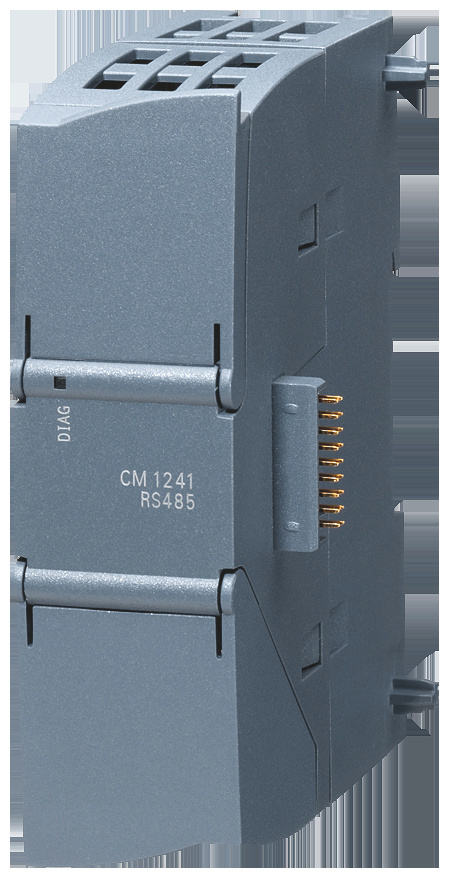

Siemens 6ES72411CH320XB0 6ES7241-1CH32-0XB0 SIMATIC S7-1200 communication module CM 1241 RS422/485 content_copy

The Siemens Communication Module CM 1241, type 6ES7241-1CH32-0XB0, is a specialised interface module for SIMATIC S7-1200 Basic Controllers. It enables serial data transmission via RS422/RS485 interfaces and allows integration of S7-1200 systems into existing industrial communication environments. The module is designed for use in automation systems where a flexible and reliable connection to external devices, such as sensors, actuators or other controls, is required.

Applications

The Communication Module CM 1241 is used in industrial applications where a serial interface is needed for communication with non-PLC systems. Typical applications include connecting machine controls, measuring devices or peripheral devices that communicate via RS422 or RS485. It supports Freeport mode, which allows flexible configuration of communication parameters to interface with various devices and protocols. Common use cases include manufacturing automation, process control, and building automation.

Functions and Features in Detail

The module features a 9-pin Sub-D socket as the physical interface for connecting to external devices. The RS422/RS485 interface enables bidirectional data transmission with high noise immunity, which is essential in industrial environments with electromagnetic interference. Support for Freeport mode allows individual configuration of baud rate, parity, data bits, and stop bits to ensure communication with different devices. The module is designed for use in SIMATIC S7-1200 systems and is directly inserted into the module slot of the controller.

Technology Explained Simply

RS422 and RS485 technology is based on differential signals, which offer higher noise immunity and longer transmission distances compared to conventional serial interfaces. The RS422 interface is suitable for point-to-multipoint connections, while RS485 can also be used in multi-point networks. The module uses the Freeport function to flexibly adapt communication parameters, simplifying integration into heterogeneous systems. Communication is handled by the integrated module, which is controlled by the CPU of the S7-1200 controller.

Compatibility and Accessories

The Communication Module CM 1241 is specifically developed for SIMATIC S7-1200 systems and is used with CPU modules such as 6ES7212-1HE40-0XB0, 6ES7212-1BE40-0XB0, or 6ES7212-1AE40-0XB0. It is part of the modular expansion options for the S7-1200 system and can be combined with other communication modules such as RS232, AS-i, or PROFIBUS to provide a wide range of connection possibilities.

Mounting and Installation

Installation is performed by inserting the module into the free module slot of the S7-1200 CPU. No additional tools or special connections are required. The electrical connection to the external device is made via a 9-pin Sub-D cable connected to the module’s socket. Configuration is done using the STEP 7 Professional software, where communication parameters such as baud rate, parity, and data format are set. Installation typically requires no additional hardware.

Advantages in Operation

The module provides a reliable and flexible communication option for S7-1200 systems. The RS422/RS485 interface ensures stable data transmission even over long distances and in noisy environments. Support for Freeport mode allows adaptation to various devices, increasing system flexibility. Integration into existing S7-1200 systems requires no additional hardware or software modifications, simplifying maintenance and system expansion. Communication is managed via the CPU, ensuring that the controller’s control functions remain unaffected.

General
Product type	Communication module
Model	CM 1241
Interface	RS422/RS485
Connection	9-pin Sub-D (female)
Compatibility	SIMATIC S7-1200
Operating mode	Freeport

---
