Siemens 6ES72141AH500XB0 6ES7214-1AH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C DC/DC/DC 14DI

Your rating:
Average rating
product review for Siemens 6ES72141AH500XB0 6ES7214-1AH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C DC/DC/DC 14DI
( 4.8 / 5 ) 4 ratings

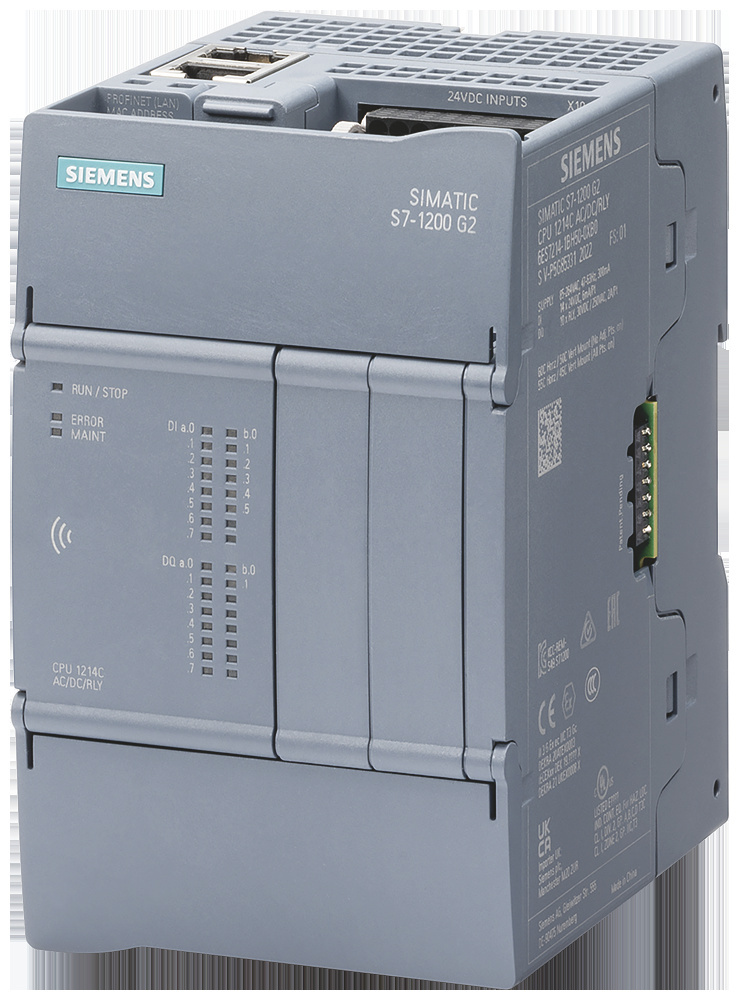

Siemens 6ES72141AH500XB0
This image may differ from the desired article.
562,50 EUR
( 669,38 EUR incl. VAT )
≈ £470.81  |  ≈ $618.19
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline
In Stock: >5 pieces
1x Siemens 6ES72141AH500XB0 6ES7214-1AH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C DC/DC/DC 14DI
Lieske Part No.:817581
Mfg Part No: 6ES72141AH500XB0
UPC/EAN: 4047623412847
Weight:0.409 kg
Type:6ES7214-1AH50-0XB0
Graduated prices net
From piecesPrice per pieces
3554,06 EUR
6545,63 EUR
9537,19 EUR
12528,75 EUR

Product information for Siemens 6ES72141AH500XB0:

The Siemens SIMATIC S7-1200 G2 Compact CPU 1214C DC/DC/DC is a central control unit for automation tasks in the lower and medium performance range. It serves as a base controller in industrial plants and enables flexible and efficient control of machines and processes. The CPU features integrated inputs and outputs as well as an integrated Ethernet interface, enabling direct networking with HMI devices and other networked devices. Programming is done using the STEP 7 Basic software in the TIA Portal, which provides unified data management and a consistent operating concept for all components of a system.

Applications

The CPU 1214C DC/DC/DC is suitable for a wide range of applications, including simple packaging machines, heating systems, and as a subordinated system in larger installations. Due to its compact design and modular construction, it is particularly suitable for installations where space in the enclosure is limited. The integrated I/Os reduce the need for additional modules and support an efficient system architecture.

Functions and Equipment in Detail

The CPU features 14 digital inputs (DI) with a voltage of 24 V DC and 10 digital outputs (DO) also at 24 V DC. These integrated inputs and outputs allow direct control of sensors and actuators without additional modules. The memory includes 250 KB for the program, 750 KB for data, and 20 KB for retained data, which remain available even during power failure. The memory capacity can be expanded via a Memory Card, increasing flexibility during programming and operation.

Technology Explained Simply

The CPU operates with a supply voltage range of 20.4 to 28.8 V DC, ensuring stable power supply in industrial environments. The integrated Ethernet interface supports communication via PROFINET, enabling flexible network integration. Programming is done via the TIA Portal with STEP 7 Basic, providing a unified software environment for the entire automation solution. The CPU is designed for use in enclosures and can be mounted directly on a standard profile rail.

Compatibility and Accessories

The CPU is compatible with various Memory Cards, including models with 4 MB, 12 MB, 24 MB, 256 MB, 2 GB, and 32 GB storage capacity, used to expand memory. Additionally, terminal block modules such as the 6ES7292-2AM50-0XA0 (12 pins) and 6ES7292-2AR50-0XA0 (16 pins) are available to increase the number of inputs and outputs. Standard profile rails in various lengths (e.g. 530 mm, 2 m) allow mounting in standard enclosures. The CPU can also be expanded with signal and communication modules to meet specific requirements.

Mounting and Installation

The CPU is mounted on a standard profile rail installed in standard enclosures. Mounting is done by simply inserting it into the rail, with electrical connections made via the integrated terminals. Power supply is via DC voltage in the range of 20.4 to 28.8 V. Networking is done via the integrated Ethernet interface, which is compatible with PROFINET.

Advantages in Operation

The CPU 1214C DC/DC/DC offers high flexibility through its modular design and integrated I/Os, simplifying system planning and saving space in the enclosure. Programming in the TIA Portal with STEP 7 Basic reduces programming effort and accelerates commissioning. The integrated Ethernet interface enables easy networking with other devices and HMI systems. Expandability via Memory Cards and additional modules provides long-term adaptability to changing requirements.

General
Model designationSIMATIC S7-1200 G2 CPU 1214C DC/DC/DC
Operating voltage20,4-28,8 V DC
Onboard inputs14 DI 24V DC
Onboard outputs10 DO 24V DC
Program memory250 KB
Data storage750 KB
Remanent memory20 KB
Communication interfaceEthernet
Communication standardPROFINET
Design softwareSTEP 7 Basic in TIA Portal


Questions & answers

What is the delivery time of Siemens 6ES72141AH500XB0 6ES7214-1AH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C DC/DC/DC 14DI?

The article Siemens 6ES72141AH500XB0 6ES7214-1AH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C DC/DC/DC 14DI is currently in stock

According to our experience the article is ready for dispatch within 1 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 6ES72141AH500XB0 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siemens 6ES72141AH500XB0 6ES7214-1AH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C DC/DC/DC 14DI always at the best possible price. We can give you a discount of 2% on Siemens 6ES72141AH500XB0 6ES7214-1AH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C DC/DC/DC 14DI if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Siemens 6ES72141AH500XB0 6ES7214-1AH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C DC/DC/DC 14DI we can offer you a price of 554,06 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
