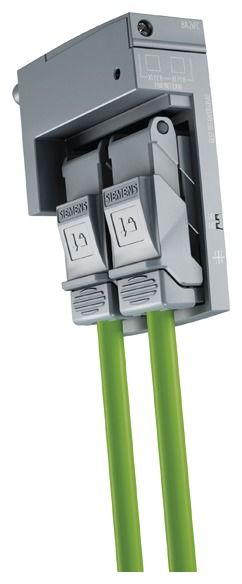

Siemens 6ES71936AF000AA0 6ES7193-6AF00-0AA0 Simatic ET 200SP bus adapter Ba 2Xfc 2x Fast Con. content_copy

The article 6ES7193-6AF00-0AA0 is a bus adapter for the SIMATIC ET 200SP system by Siemens. It is a decentralised peripheral system designed for use in compact enclosures and features protection class IP20. The bus adapter includes two Fast-Connect connectors, enabling quick and secure connections within the fieldbus network. The ET 200SP system is characterised by a space-saving design, supporting easy commissioning and integration into existing automation structures.

Applications

The SIMATIC ET 200SP system is used in industrial automation applications, particularly in environments requiring decentralised peripherals with high flexibility and reliability. It is intended for use in enclosures installed indoors and is suitable for applications in manufacturing automation, process control, and machine control. The support for Multi Hot Swapping allows modules to be exchanged during operation, simplifying maintenance and service work.

Functions and Equipment in Detail

The bus adapter BA 2xFC provides two Fast-Connect connectors, ensuring quick and reliable connections within the fieldbus network. These connectors are designed for industrial environments and support rapid mounting and dismounting of modules. The system is part of the SIMATIC ET 200SP portfolio, which includes a wide range of signal modules, communication modules, and technology modules. This includes digital and analogue input/output modules, as well as fail-safe variants for applications up to SIL 3 / PLe. The integrated motor starters are suitable for motors up to 5.5 kW.

Technology Explained Simply

The bus adapter enables the connection of ET 200SP modules via the fieldbus. The Fast-Connect technology ensures a mechanically secure and electrically stable connection that can be mounted without tools. Protection class IP20 means the device is protected against contact with fingers and against solid foreign objects, but not against water or dust. The system is intended for use in enclosed enclosures that protect against external influences. The integration of the MultiFieldbus Interface module IM155-6MF enables the use of various Ethernet protocols, increasing communication flexibility.

Compatibility and Accessories

The bus adapter is specifically developed for the SIMATIC ET 200SP system and is compatible with all modules of this system. It can be combined with various signal modules, communication modules, and technology modules, including Energy Meter, IO-Link Master (V1.1.), and integrated motor starters. The use of reference identification plates and colour-coded terminal markings simplifies installation and maintenance. The modules are designed to integrate into a uniform identification system.

Mounting and Installation

Mounting is carried out in a compact enclosure, where the space-saving design of the ET 200SP system enables efficient use of available space. The Fast-Connect connectors allow for quick and tool-free installation. Modules can be exchanged during operation, without interrupting the process. The uniform identification and colour coding of the connectors facilitate assignment and reduce error sources during installation.

Advantages in Operation

The SIMATIC ET 200SP system offers high flexibility through the possibility of Multi Hot Swapping and support for various communication protocols. The scalable configuration allows application-specific adaptation of the station, optimising costs. The integration of fail-safe modules and technology modules such as IO-Link Master or Energy Meter extends functionality and supports modern automation requirements. The uniform identification and colour coding of the connectors improve service and maintenance work.

General
Product type	bus adapter
System	SIMATIC ET 200SP
Connection type	Fast-Connect
Number of connections	2
Degree of protection	IP20
Compatibility	SIMATIC ET 200SP system
Hot swapping	Multi Hot Swapping
Interface module	IM155-6MF
Communication protocols	multiple Ethernet protocols

---
