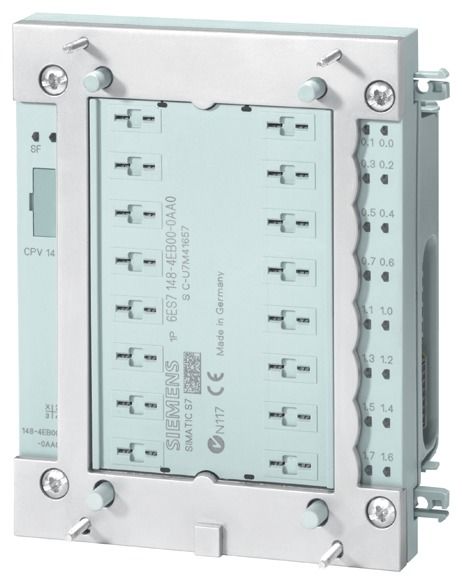

Siemens 6ES71484EB000AA0 6ES7148-4EB00-0AA0 SIMATIC DP, Pneu, 200 PRO, 16DO pneumatic for coupling

SIMATIC DP, pneumatic interface for ET 200 PRO, 16DO pneumatics for coupling with Festo valve terminal CPV-14, including bus module SIMATIC ET 200pro is a very robust and powerful modular decentralized peripheral system for installation outside the control cabinet directly on the machine with protection class IP65/67. The modules can either be plugged directly into an ET 200pro CPU or connected to a central controller via PROFINET or PROFIBUS. The connection to the central controller is also possible wirelessly via WLAN, which enables the use of the SIMATIC ET 200pro in electric monorail systems, driverless transport systems, in building management and in warehouse logistics. Thanks to its extensive range of modules, it is used in particular where a finely modular structure with different functions is required in harsh environmental conditions. The separation of the module and bus/power connection technology enables a module to be replaced during operation (so-called hot swapping), which, in conjunction with the detailed diagnosis, ensures the availability and productivity of the machine. The system offers a very broad portfolio of modules. In addition to various digital and analog input and output modules in a wide range of versions, a series of fail-safe modules are also available for use up to SIL 3 / PLe. The ET 200pro system offers integrated solutions specifically for motor control in the form of motor starters and frequency converters, which are also available as fail-safe variants. An IO-Link master and a module for connecting RFID components via the RS 232 / 422 interface round off the portfolio.
Type: 6ES7148-4EB00-0AA0
