Siemens 6ES7146-6FF00-0AB0 SIMATIC DP, ET 200eco PN, F-DI 8x24V /F-DQ 3x24V 2A

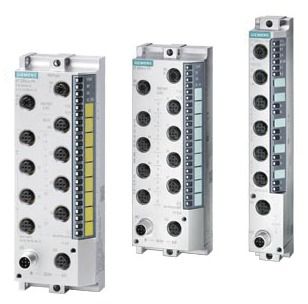

SIMATIC DP, ET 200eco PN, F-DI 8x24V /F-DQ 3x24V 2A, M12 PROFIsafe, up to PL E (ISO 13849), up to SIL 3 (IEC 61508), protection class IP65/67 SIMATIC ET 200eco PN is a compact block I/O with PROFINET connection in protection class IP65/67 and is therefore a space-saving and future-proof solution that defines new market standards and at the same time requires very little installation effort. You can install and commission the block I/O in any position easily and flexibly. The intelligent design enables you to carry out assembly directly on site at the machine or assembly line. The very robust zinc die-cast housing guarantees you ideal protection in extremely challenging environmental conditions and enables you to use it at temperatures from -40° to +60°. Another advantage of the system is its maximum resistance to vibrations, dust, oil and moisture. The SIMATIC ET 200eco PN provides you with a future-proof and innovative complete solution that can be flexibly configured and integrated into line topologies within a system thanks to the integrated 2-port switch. ¿¿The M12-L coded power connectors simplify the power supply concept and enable a higher current load capacity and thus significantly longer cable lengths in the field without additional supply cables.¿ Siemens guarantees future-proof and innovative solutions that help you open up new business areas through key technologies that are further developed by the ET 200 products.¿ In addition to digital and analog input and output modules in various versions (including current, voltage, temperature and resistance measurements), the portfolio also includes IO-Link masters and a fail-safe module for connecting sensors and actuators up to SIL 3 / PLe. If required, the outputs of the standard modules can also be switched off in a fail-safe manner up to SIL 2 for the application.
Type: 6ES7146-6FF00-0AB0
