Siemens 6ES71366AA000CA1 6ES7136-6AA00-0CA1 ET 200SP, F-AI 4XI (0)4..20mA HF

Your rating:
Average rating
product review for Siemens 6ES71366AA000CA1 6ES7136-6AA00-0CA1 ET 200SP, F-AI 4XI (0)4..20mA HF
( 4 / 5 ) 1 ratings

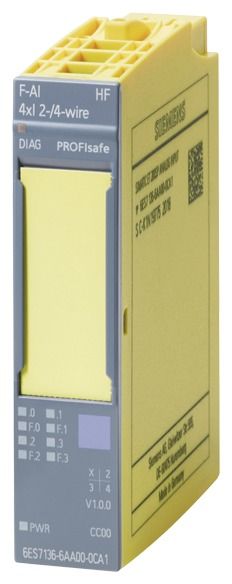

Siemens 6ES71366AA000CA1
This image may differ from the desired article.
Siemens 6ES71366AA000CA1Siemens 6ES71366AA000CA1
686,76 EUR
( 817,24 EUR incl. VAT )
≈ £574.82  |  ≈ $754.75
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline
In Stock: 2 pieces
1x Siemens 6ES71366AA000CA1 6ES7136-6AA00-0CA1 ET 200SP, F-AI 4XI (0)4..20mA HF
Lieske Part No.:1907654
Mfg Part No: 6ES71366AA000CA1
UPC/EAN: 4047623408031
Weight:0.061 kg
Type:6ES7136-6AA00-0CA1
Graduated prices net
From piecesPrice per pieces
3676,46 EUR
6666,16 EUR
9655,86 EUR
12645,55 EUR

Product information for Siemens 6ES71366AA000CA1:

The Siemens electronic module 6ES7136-6AA00-0CA1 is a fail-safe analog input module for the SIMATIC ET 200SP system, designed for decentralized automation tasks in industrial environments. It enables the acquisition of four analog input signals in the range of 0(4) to 20 mA, with the designation HF indicating high functionality and reliability. The module is designed for use in enclosures with protection rating IP20 and supports integration into decentralized peripheral stations accessed via the SIMATIC DP bus. The fail-safe design ensures safe signal processing up to safety performance level PL e according to ISO 13849 and up to SIL 3 according to IEC 61508, making it suitable for critical applications in process and machine control.

Applications

The module is used in industrial automation systems where high availability and safety of input signals are required. Typical applications include monitoring of pressure, temperature, or flow measurement devices communicating via 4-20 mA signals. The fail-safe design makes it particularly suitable for applications where a sensor failure or cable break could lead to a safety-critical event, for example in process engineering, material handling, or packaging technology.

Functions and Equipment in Detail

The module features four independent analog inputs, each covering an input range of 0(4) to 20 mA. The designation HF indicates high functionality, provided by integrated fault detection and handling. Signals are processed internally and transmitted to the higher-level control system via the SIMATIC DP bus. The fail-safe design enables detection of faults such as open circuits, short circuits, or voltage failure, ensuring system integrity. The module designation F-AI stands for fail-safe analog inputs, describing the specific function of the module.

Technology Explained Simply

The technology of the module is based on integrated fault detection, continuously monitoring the quality of input signals. Deviations from expected values, such as an open or shorted input, trigger a fault state detected and reported to the control system. This enables proactive fault handling and prevents erroneous control decisions. Communication occurs via the SIMATIC DP bus, ensuring reliable and fast data transmission within the automation architecture. The IP20 protection rating safeguards the module against finger contact and ingress of solid foreign objects, intended for use in enclosed enclosures.

Compatibility and Accessories

The module is specifically developed for the SIMATIC ET 200SP system and can be combined with various base units (Base Units) such as 6ES7193-6BP00-2BA0, 6ES7193-6BP20-2BA0, or 6ES7193-6BP00-0DA0. It is part of a comprehensive module system that includes digital and analog input/output modules, fail-safe variants, as well as communication and technology modules. Compatibility with the MultiFeldbus interface module IM155-6MF enables use of various Ethernet protocols, increasing system configuration flexibility. Additionally, identification plates and labeling strips are available to facilitate installation and maintenance in the enclosure.

Mounting and Installation

Mounting is performed in a compact enclosure meeting IP20 protection rating. The module is inserted into the base unit and connected to the control system via the SIMATIC DP bus. Installation is tool-free, with module positioning supported by a uniform identification system using color coding and reference plates. Modules can be exchanged during operation (Multi Hot Swapping), enabling maintenance and repair without shutting down the entire system.

Advantages in Operation

Fail-safe signal processing ensures high system availability and reduces the risk of incorrect control actions. Integration into the ET 200SP system enables scalable and cost-efficient configuration, as modules can be added or replaced as needed. Support for Multi Hot Swapping reduces downtime during maintenance. Clear identification of modules and connections simplifies commissioning and maintenance, enhancing the operational safety and efficiency of the system.

General
Module typeF-AI 4xI0(4)..20mA HF
Number of analog inputs4
Input range0(4) to 20 mA
Safety ratingPL e
Safety integrity levelSIL 3
Degree of protectionIP20
Communication busSIMATIC DP
System compatibilitySIMATIC ET 200SP
