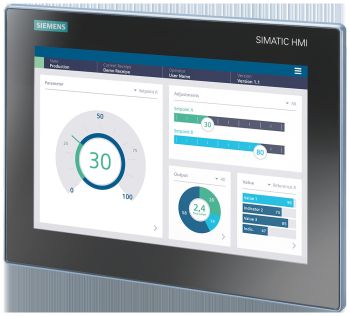

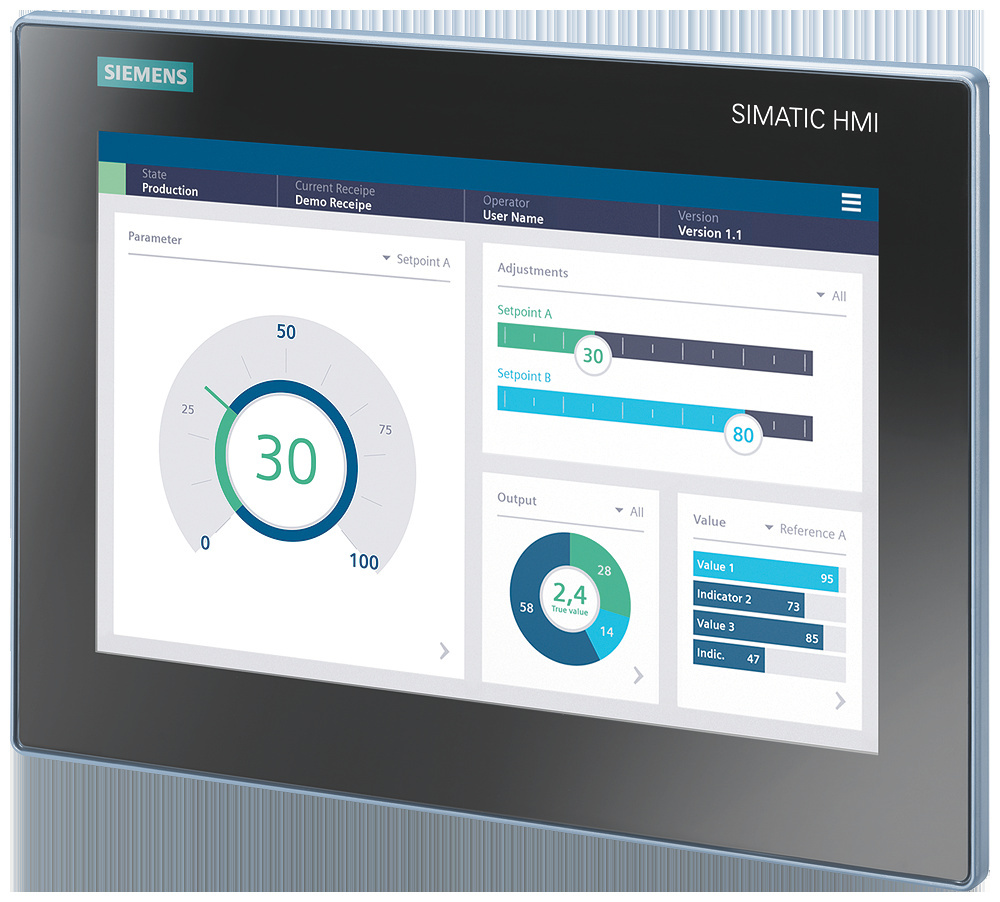

Siemens 6AV21233MB320AW0 6AV2123-3MB32-0AW0 SIMATIC HMI MTP1200 Unified Basic Panel 30,5 cm ( 12 inch ) content_copy

The Siemens SIMATIC HMI MTP1200, type 6AV2123-3MB32-0AW0, is a Unified Basic Panel for industrial visualisation and operation. It features a 12-inch widescreen TFT display with a colour depth of 16 million colours and enables intuitive touch operation. The panel is designed for use with the visualisation software SIMATIC WinCC Unified and can be configured starting from WinCC Unified Basic V18 Update 3. The integrated PROFINET interface ensures reliable communication in industrial networks. The device includes open-source software, which is provided free of charge and is available on an included Blu-Ray.

Applications

The MTP1200 is suitable for applications in automation technology where a graphical user interface with high user-friendliness and visual representation of process data is required. It is used in production plants, machine controls, and plant monitoring systems where clear and responsive operation via a touch display is necessary. The Unified Basic Panel product family offers a uniform interface configuration and operating comfort across all sizes from 4 to 12 inches.

Functions and Equipment in Detail

The panel features modern multitouch technology, enabling intuitive operation. The display is a widescreen TFT screen, ensuring clear and vivid colour representation. Configuration is performed using the SIMATIC WinCC Unified software, which enables flexible and visually appealing visualisation. System limits have been significantly increased compared to previous models, enabling the development of more complex applications on the panel. The integrated PROFINET interface ensures stable and fast data transmission in industrial environments.

Technology Explained Simply

The panel is based on a proprietary operating system specifically developed for industrial use. This system ensures high IT security, as the user can deactivate unnecessary functions or interfaces. The open-source software included on the accompanying Blu-Ray supports the development and adaptation of visualisation applications. The PROFINET interface enables integration into existing industrial networks and communication with other SIMATIC systems.

Compatibility and Accessories

The MTP1200 is compatible with SIMATIC WinCC Unified software starting from version V18 Update 3. It can be combined with various accessories, including service packages, touch pens, protective films, mounting frames, USB keyboards, SD memory cards, and USB flash drives. These components support the installation, operation, and maintenance of the panel. The accessories are specifically developed for SIMATIC HMI systems and ensure optimal functionality.

Mounting and Installation

Mounting takes place in typical industrial environments, where the panel is integrated into machine or plant construction. Installation requires connection via the PROFINET interface and configuration of the visualisation software. Operation is performed via the touch display, with the multitouch function enabling intuitive interaction. Projecting and configuration are carried out using the WinCC Unified software, which runs on a PC or laptop.

Advantages in Operation

The panel offers high user-friendliness through touch operation and clear graphical display. The extended system limits enable the development of complex applications that were not possible on previous models. IT security is enhanced by the proprietary operating system and the ability to deactivate unnecessary functions. Integration into existing PROFINET networks requires no additional hardware, simplifying installation. The open-source software on the Blu-Ray supports adaptation and extension of visualisation applications.

General
Product type	SIMATIC HMI MTP1200
Panel type	Unified Basic Panel
Display size	12 inch
Display type	Widescreen-TFT
Colour depth	16 MIO Colours
Operation	touch operation
Interface	PROFINET
Designable from	WinCC Unified Basic V18 Upd. 3
Software	Open Source SW
Software delivery format	Blu-Ray

---
