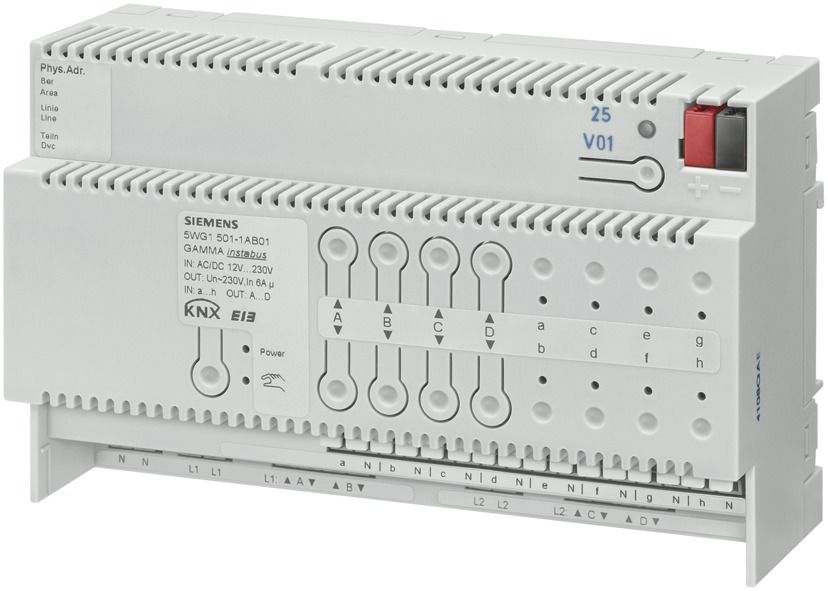

Siemens 5WG15011AB01 N 501 combi blinds actuator 4X Jalou, AC230V 6A 8X inputs. AC / DC12-230V
|
480,15 EUR |
|||||||||||
|
( 571,38 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 646086 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 5WG15011AB01 | ||||||||||
| UPC/EAN: | 4001869377551 | ||||||||||
| Weight: | 0.52 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Siemens 5WG15011AB01:
- 8 relay contact outputs, electrically interlocked in pairs, for controlling 4 sun protection drives for AC 230 V
- Contact rated operating voltage AC 230 V
- Contact rated operating current 6 A, cos phi = 1
- Power supply for the electronics via integrated power supply unit for AC 230 V
- Device can also function without a bus connection or if the bus communication fails
- Default setting in delivery state for direct control of the outputs using the blind button function via buttons connected to the inputs
- Button for switching between bus and direct operation
- One button per relay contact output to switch the output on in direct operation for the duration of the button operation
- With bus connection with either joint or individual parameterization of the inputs
- Function that can be set for each input:
- Switching state, send binary value
- Switching edge, Short/Long
- 1-button dimming, sun protection control, group control
- 1-bit/8-bit scene control
- 8-bit/16-bit value edge, short/long,
- 16-bit floating point value edge, short/long
- Function that can be set for each input pair:
- Directly acting on the associated outputs as a blind button
- 2-button dimming with stop telegram or with cyclical sending
- 2-button sun protection control
- Selectable blocking of each input via an associated blocking object
- Sending of the input objects after a change
- Selectable cyclical sending of the input objects
- Communication objects per blind channel for moving the sun protection to the end positions or for stopping the process and for gradually adjusting the blind slats
- Communication objects for directly moving to a position of the sun protection and the blind slats using position information as a percentage value
- Automatic opening of the blind slats up to to a parameterized target position after uninterrupted lowering of the blind from the upper to the lower end position, with integrated 1-bit scene control for saving and recalling (restoring) 2 intermediate positions of blinds and slats
- Integrated 8-bit scene control and integration of each channel in up to 8 scenes
- Optional sun object for activating/deactivating the sun tracking control of the blind slats when shading with the greatest possible proportion of daylight
- Distinction between automatic and manual operation as well as automatic switching from automatic to manual operation of the affected channel when a bus button is pressed to manually control the associated sun protection
- Integrated bus coupler, bus connection via bus terminal or contact system to the data rail
- Modular device for mounting on mounting rail TH35 DIN EN 60715
Type: 5WG1501-1AB01
Questions & answers
What is the delivery time of Siemens 5WG15011AB01 N 501 combi blinds actuator 4X Jalou, AC230V 6A 8X inputs. AC / DC12-230V?
The article Siemens 5WG15011AB01 N 501 combi blinds actuator 4X Jalou, AC230V 6A 8X inputs. AC / DC12-230V is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 5WG15011AB01 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siemens 5WG15011AB01 N 501 combi blinds actuator 4X Jalou, AC230V 6A 8X inputs. AC / DC12-230V always at the best possible price. We can give you a discount of 2% on Siemens 5WG15011AB01 N 501 combi blinds actuator 4X Jalou, AC230V 6A 8X inputs. AC / DC12-230V if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Siemens 5WG15011AB01 N 501 combi blinds actuator 4X Jalou, AC230V 6A 8X inputs. AC / DC12-230V we can offer you a price of 451,34 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Siemens 5WG15011AB01 N 501 combi blinds actuator 4X Jalou, AC230V 6A 8X inputs. AC / DC12-230V via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
