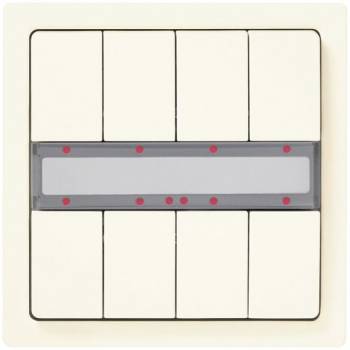

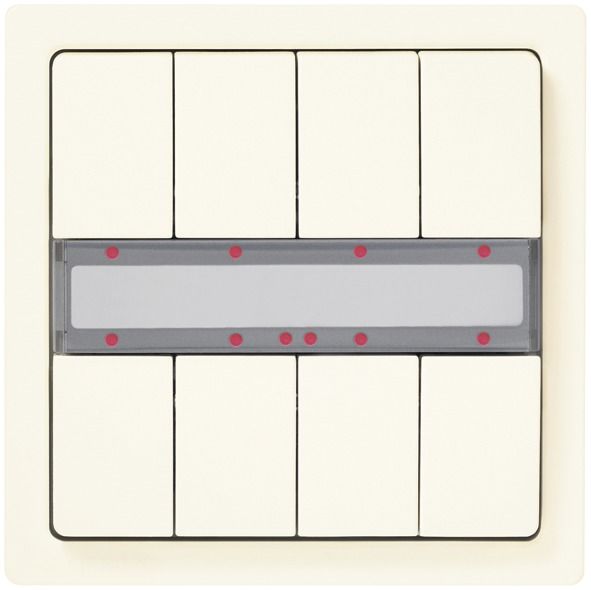

Siemens 5WG1287-2AB14 and temperature sensor UP 287/4 DELTA style titanium white

with four pairs of buttons, with vertical operation,
with selectable functions for each button: switching toggle, switching on, switching off, switching on or off with either a rising or falling edge, 1-button dimming, 1-button sun protection control, 1-bit scene control, 8-bit scene control, 8-bit value, percentage value, 16-bit value, temperature value, brightness value, forced operation,
with additional functions that can be selected per button depending on the selected main function, additionally time-delayed (time delay adjustable from 100 ms to 655 s) or alternatively executed with a long button press,
with selectable functions for each button pair: 2-button dimming with stop telegram, 2-button sun protection control, 8-bit value variable sending, percentage value variable sending, 1-bit scene control, 8-bit scene control, forced operation,
with additional functions that can be selected per button depending on the selected main function time-delayed (time delay adjustable from 100 ms to 655 s),
with additional functions that can be selected per button depending on the main function selected: switch on, switch off, 8-bit value, percentage value, 16-bit value, temperature value, brightness value, 1-bit scene 1 recall/save, 1-bit scene 2 recall/save, 8-bit scene recall, forced on, forced off, forced control inactive,
with lock selectable for each button and lock configurable for each button depending on the value of the lock object,
with integrated 8-bit scene control for recalling and saving scenes for up to eight scene channels,
with assignment of up to eight 8-bit scene numbers (1 to 64) per scene channel,
with function selectable for each scene channel: switch, blind, forced control, 8-bit value, 16-bit value,
with scenes that can be set by the user and saved in the 8-bit scene control,
with retention of the saved values also in the event of a bus voltage failure and when the configuration is changed by the ETS,
with integrated room temperature sensor, with configurable adaptation of the measured value to local conditions,
with cyclical sending or sending when the room temperature value changes by a configurable value, with one status LED per button,
with brightness of all status LEDs that can be configured via parameters or influenced via object,
with selectable short flash when the LED is switched off,
with selectable function for each status LED: LED permanently off, LED permanently on, LED indicates key operation, LED indicates long key press, LED on / off / flashing (slow, medium, fast) depending on binary value (on or off), LED on / off / flashing (slow, medium, fast) depending on analog value (8-bit value, percentage value, 16-bit value, temperature value, brightness value), with an LED for orientation light,
with brightness of the orientation light that can be configured via parameters or influenced via object, with selectable short flash when the LED is switched off,
with selectable function of the orientation light: LED permanently off, LED permanently on, LED indicates key operation, LED indicates long key press, LED on / off / flashing (slow, medium, fast) depending on binary value (on or off), LED on / off / flashing (slow, medium, fast) depending on analog value (8-bit value, percentage value, 16-bit value, temperature value, brightness value), with label field in which pictograms can be inserted, for plugging onto bus coupling unit (BTM) UP 117
Type: 5WG1287-2AB14
