Siemens 3VA51204ED310AA0 3VA5120-4ED31-0AA0 MCCB UL BG125 20A 3P 25kA TM FTFM

Your rating:
Average rating
product review for Siemens 3VA51204ED310AA0 3VA5120-4ED31-0AA0 MCCB UL BG125 20A 3P 25kA TM FTFM
( 4 / 5 ) 1 ratings
Siemens 3VA51204ED310AA0

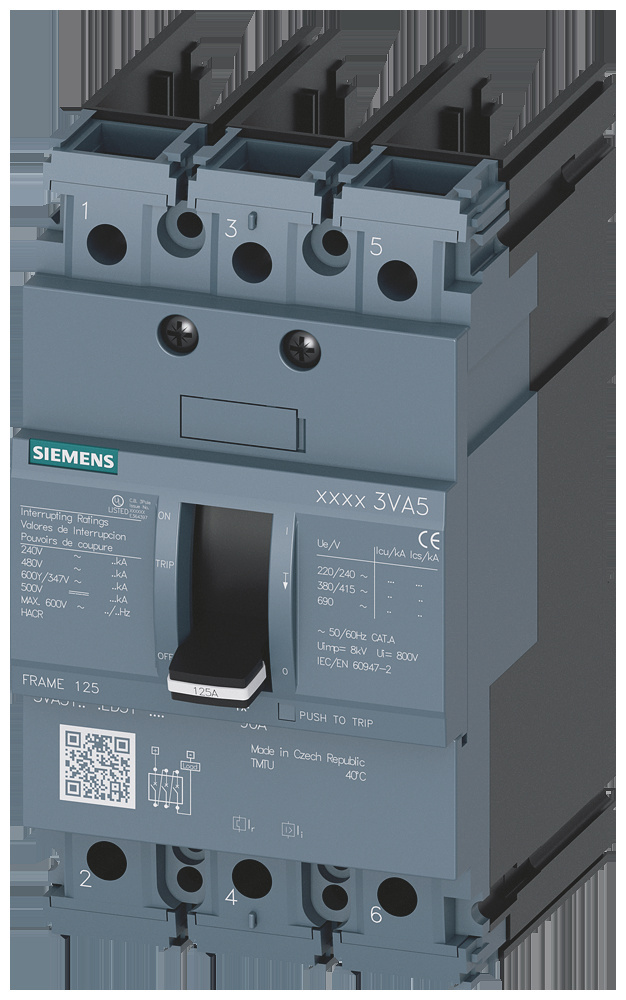

This image may differ from the desired article.
355,39 EUR
incl. 3,89 EUR copper surcharge
( 422,91 EUR incl. VAT )
≈ £297.46  |  ≈ $390.57
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Siemens 3VA51204ED310AA0 3VA5120-4ED31-0AA0 MCCB UL BG125 20A 3P 25kA TM FTFM
Lieske Part No.:324777
Mfg Part No: 3VA51204ED310AA0
UPC/EAN: 4042948840344
Weight:0.938 kg
Type:3VA5120-4ED31-0AA0
Graduated prices net
From piecesPrice per pieces
4344,84 EUR
8334,30 EUR
12323,76 EUR
16313,21 EUR

Product information for Siemens 3VA51204ED310AA0:

The Siemens power circuit breaker type 3VA5120-4ED31-0AA0 is a compact power circuit breaker of the 3VA5 series, specifically designed for use in industrial and infrastructure applications. It serves as system protection and provides a safe switching-off process in case of overload or short circuit. The 3VA5 series complies with both the IEC standard and the UL standard, enabling worldwide applicability for machine and control panel builders. The circuit breaker is manufactured in frame size 125 and features a 3-pole configuration. It is intended for fixed installation and is characterized by a compact design, ensuring minimal space requirement.

Applications
The power circuit breaker is used in industrial plants and infrastructure projects where reliable protection of electrical systems is required. It is particularly suitable for applications requiring high operational safety and rapid protection in case of circuit disturbances. The UL certification also makes it suitable for export to markets with corresponding standard requirements.

Functions and Equipment in Detail
The circuit breaker is equipped with a thermal-magnetic overload release, which reacts to both overload (via thermal effect) and short circuit (via magnetic effect). The rated current is 20 A (In = 20 A), with the overload protection also fixed at 20 A (Ir = 20 A). The short-circuit protection is designed for 15 times the rated current (Ii = 15 x In). These settings ensure precise and rapid protection of the connected system. The switching capacity class S is 25 kA at 480 V, highlighting the circuit breaker’s performance under high short-circuit currents.

Technology Explained Simply
The thermal-magnetic release combines two protection principles: The thermal component reacts to sustained overloads by triggering the breaker through thermal expansion. The magnetic component responds immediately to sudden, high current surges, such as those occurring during short circuits. The combination of both principles enables differentiated protection, detecting both slow overloads and sudden current spikes. The frame size 125 allows for compact mounting, while the 3-pole configuration is suitable for three-phase AC systems.

Compatibility and Accessories
The circuit breaker is part of Siemens’ SENTRON system and offers a comprehensive accessory platform. Compatible accessories include, for example, cable pull rods (e.g. 3VA9980-0VC30, 1.5 m), frame bezels (e.g. 3VA9033-0SB10), round conductor terminals (e.g. 3VA9133-0JJ12), connection extensions (e.g. 3VA9133-0QB00), and phase partition panels (e.g. 3VA9132-0WA00). These components allow flexible adaptation to different mounting and connection conditions. The accessories are modular and easy to install, facilitating maintenance and system expansion.

Mounting and Installation
The power circuit breaker is designed for fixed installation and can be mounted in enclosures or distribution boards. Mounting is done using integrated fastening elements. The connection terminals are designed for connection with round conductors, with various terminal variants available (e.g. TC1.1, TA2.1). Installation does not require special tools, although compliance with electrical safety regulations and correct sizing of conductors is mandatory.

Operational Advantages
The circuit breaker offers high reliability and rapid protection in case of disturbances. The modular accessory platform enables flexible adaptation to different requirements. The UL certification expands the application range globally. The compact design reduces space requirements in enclosures, which is particularly beneficial in tight installations. Clear labeling and easy handling facilitate maintenance and inspection.

General
Degree of protectionsystem protection
Switching capacity classS
Switching capacity25 kA
Operating voltage480 V
Number of poles3
Rated current20 A
Overload protection20 A
Short-circuit protection15 x In
Triggerthermal-magnetic
Construction sizeFrame 125
Accessory platformmodular, continuous


Please note...
This article contains a copper surcharge of 3,89 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
