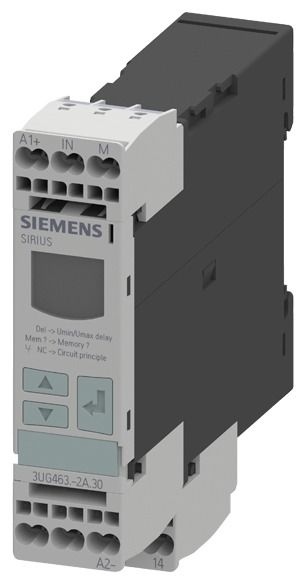

Siemens 3UG46312AA30 3UG4631-2AA30 digital monitoring, voltage monitoring, 22.5mm of 0.1-60V content_copy

Digital monitoring relay voltage monitoring, 22.5 mm from 0.1-60 V AC/DC over- and undershoot Supply voltage: AC/DC 24 V DC and AC 50 to 60 Hz without galvanic isolation from the measuring circuit Interference peak delay 0.1 to 20 s Hysteresis 0.1 to 30 V 1 changeover contact with or without error memory Spring-loaded technology Digitally adjustable voltage monitoring relay SIRIUS 3UG4 for monitoring voltages for over- and undershoot, e.g. to protect a system from damage, to protect against deep battery discharge or to switch on a system from a defined voltage. Worldwide use thanks to international certificates. The relay can be variably set to over-, under- or window monitoring. Delay times and RESET behavior can be freely parameterized. Less space required in the control cabinet thanks to a narrow width. Reliable diagnostics through display of ACTUAL value and status messages. All versions with removable connection terminals. In addition to screw connection technology, the devices are also available with spring-loaded connections for a quick, maintenance-free and vibration-proof connection. The devices are divided into self-powered and externally powered devices, optionally with a wide voltage range or with IO-Link. The comprehensive range of accessories, such as device identification plates, push-in tabs and cover caps, is standard for all relays. SIRIUS relays - a program for all situations.
Type: 3UG4631-2AA30
