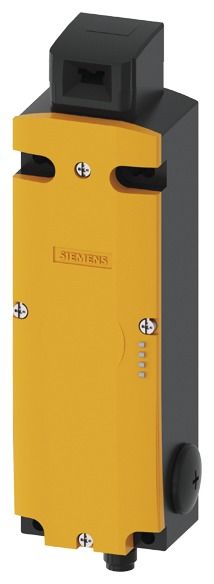

Siemens 3SF13141SB111BA1 3SF1314-1SB11-1BA1 Safety Posi

Safety position switch with guard locking, locking force 2600 N, 5 approach directions, metal housing, M12 connector, ASIsafe integrated, channel 1 = actuator 1 NC, channel 2 = magnet 1 NC, magnetic force locked, magnet voltage AC/DC 24 V. No additional 24 V supply is required. Actuator monitoring 2 NC/1 NO Magnet monitoring 2 NC/1 NO the matching separate actuator 3SE5000-0AV0./-0AW5. must be ordered separately. Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with direct connection to the AS-Interface bus system. The mechanical safety switches are compact thanks to integrated ASIsafe electronics, which require low power consumption. 3D-coded actuators guarantee a high level of protection against manipulation. LEDs show the current status of the device. The switches can be used for the highest safety requirements according to PL e or SIL 3. Device variants are also available with a high degree of protection IP69K. Various housing sizes are available in plastic or metal. Versions with a separate actuator, with guard locking or as a safety hinge switch are also available. A series with a high degree of protection IP69K rounds off the portfolio. Depending on the version, drive heads, separate actuators, plugs and other mounting/connection accessories are available as accessories. Safety is a SIRIUS business.
Type: 3SF1314-1SB11-1BA1
