Siemens 3SE51220CH01 3SE5122-0CH01 position switches 56m, Device Connectivity 3X (M20x1,5) 1S / 1NC Sprun
|
-5% 80,04 EUR 83,86 EUR |
|||||||||||
|
( 95,25 EUR incl. VAT ) ≈ £68.67 | ≈ $92.77 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 649254 | ||||||||||
| Mfg Part No: | 3SE51220CH01 | ||||||||||
| UPC/EAN: | 4011209693487 | ||||||||||
| Weight: | 0.413 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Limit switches, mechanical from SiemensFurther products in category Limit switches, mechanical
All products of Siemens
Product information for Siemens 3SE51220CH01:

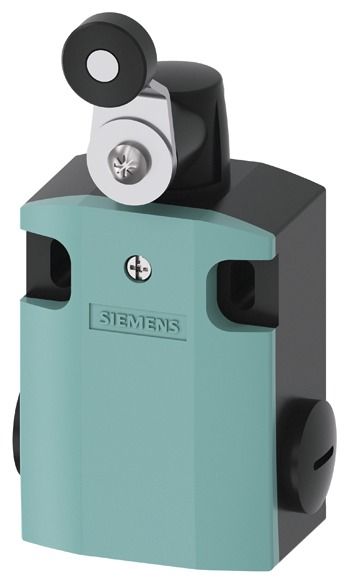

Position switch metal housing 56 mm wide device connection 3x (M20x 1.5) 1 NO/1 NC snap contacts rotary actuator adjustable right/left, with metal lever 27 mm long and plastic roller 19 mm Mechanical position switch SIRIUS 3SE5 for position and location detection of machine parts and position monitoring of protective devices. The modular design of the 3SE5 position switches enables a large number of variants with a small number of bearing types. The large variety of plugs and rollers meets almost all requirements in everyday industrial use. LEDs show the current status of the device. Thanks to quick connection technology, connection times can be significantly reduced. Switching points and fastening according to EN 50047 and EN 50041. The devices are approved worldwide (IEC, UL). With the appropriate switch configuration, the highest safety requirements according to PL e or SIL 3 can be met. The integrated ASIsafe electronics require a low power consumption. Various housing sizes are available, with different switching elements, in plastic or metal or compact design. Some variants are optionally available with LED status display and M12 connector. The 3SF1 series with direct connection to the AS-Interface bus system rounds off the portfolio. Depending on the version, drive heads and connectors as well as other mounting/connection accessories are available as accessories. Safety is a SIRIUS business.
Type: 3SE5122-0CH01
Type: 3SE5122-0CH01
Questions & answers
What is the delivery time of Siemens 3SE51220CH01 3SE5122-0CH01 position switches 56m, Device Connectivity 3X (M20x1,5) 1S / 1NC Sprun?
The article Siemens 3SE51220CH01 3SE5122-0CH01 position switches 56m, Device Connectivity 3X (M20x1,5) 1S / 1NC Sprun is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3SE51220CH01 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siemens 3SE51220CH01 3SE5122-0CH01 position switches 56m, Device Connectivity 3X (M20x1,5) 1S / 1NC Sprun always at the best possible price. We can give you a discount of 2% on Siemens 3SE51220CH01 3SE5122-0CH01 position switches 56m, Device Connectivity 3X (M20x1,5) 1S / 1NC Sprun if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Siemens 3SE51220CH01 3SE5122-0CH01 position switches 56m, Device Connectivity 3X (M20x1,5) 1S / 1NC Sprun we can offer you a price of 78,24 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
This product is recommended as accessory for
 |
Siemens 3SE51220LH01 3SE5122-0LH01 Pos.schalter Met. 56mm 1S/2Ö Sprung Schwenkantrieb 27mm Ku
Positionsschalter Metallgehäuse 56 mm breit Geräteanschluss 3x (M20x 1,5) 1S/2Ö Sprungkontakte Schwenkantrieb rechts/links einstellbar, mit Metallhebel 27 mm lang und Kunststoffrolle 19 mm ... Lieske Part No.: 499674 Mfg Part No: 3SE51220LH01 Type: 3SE5122-0LH01 |
-5% 82,56 EUR 86,50 EUR
 ≈ £70.84 | ≈ $95.69
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Siemens 3SE51220BH01 3SE5122-0BH01 position switches 56m, Device Connectivity 3X (M20x1,5) 1S / 1NC Schle
Position switch metal housing 56 mm wide device connection 3x (M20x 1.5) 1 NO/1 NC slow action contacts rotary actuator adjustable right/left, with metal lever 27 mm long and plastic roller 19 mm ... Lieske Part No.: 649251 Mfg Part No: 3SE51220BH01 Type: 3SE5122-0BH01 |
-5% 81,69 EUR 85,59 EUR
≈ £70.09 | ≈ $94.68
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
Fitting accessory for Siemens 3SE51220CH01 3SE5122-0CH01 position switches 56m, Device Connectivity 3X (M20x1,5) 1S / 1NC Sprun
|
|
Siemens 3SX9926 Cable gland for position switch M20x1.5
Cable gland molded plastic for position switches, M20x 1.5 for cable diameter: 5-13 mm Simple, efficient, always up-to-date - the SIRIUS modular system. Lieske Part No.: 299836 Mfg Part No: 3SX9926 |
10,54 EUR 10,99 EUR
≈ £9.04 | ≈ $12.22
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Siemens 3SY3128 Zub. For, position switch plug (5-pin).
Accessories for position switches Device plug (5-pin), M12, for M20 x 1.5 for 125 V, 4 A on pin 5 a yellow/green cable for PE Simple, efficient, always up-to-date - the SIRIUS modular system. Lieske Part No.: 376692 Mfg Part No: 3SY3128 |
34,20 EUR 35,64 EUR
≈ £29.34 | ≈ $39.64
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Siemens 3SE50000AA01 3SE5000-0AA01 pivoting lever for position
Swivel lever for position switch 3SE51 Metal lever form A 27 mm long, step 9 mm with plastic roller 19 mm according to DIN EN 50041 Lever for SIRIUS 3SE5 rotary actuator for position and location ... Lieske Part No.: 406030 Mfg Part No: 3SE50000AA01 Type: 3SE5000-0AA01 |
7,11 EUR 7,41 EUR
≈ £6.10 | ≈ $8.24
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
|
|
|
Siemens 3SE51220LH01 3SE5122-0LH01 Pos.schalter Met. 56mm 1S/2Ö Sprung Schwenkantrieb 27mm Ku
Positionsschalter Metallgehäuse 56 mm breit Geräteanschluss 3x (M20x 1,5) 1S/2Ö Sprungkontakte Schwenkantrieb rechts/links einstellbar, mit Metallhebel 27 mm lang und Kunststoffrolle 19 mm ... Lieske Part No.: 499674 Mfg Part No: 3SE51220LH01 Type: 3SE5122-0LH01 |
-5% 82,56 EUR 86,50 EUR
≈ £70.84 | ≈ $95.69
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Siemens 3SE51220CA00 3SE5122-0CA00 basic switches for 3SE5
Basic switch for position switch 3SE51 Metal housing 56 mm Device connection 3x (M20x 1.5) 1NO/1NC snap contacts without drive head Mechanical safety switches SIRIUS 3SE5 for position and location ... Lieske Part No.: 585674 Mfg Part No: 3SE51220CA00 Type: 3SE5122-0CA00 |
-5% 45,73 EUR 47,92 EUR
≈ £39.24 | ≈ $53.00
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
|
|
Siemens 3SE51220BH01 3SE5122-0BH01 position switches 56m, Device Connectivity 3X (M20x1,5) 1S / 1NC Schle
Position switch metal housing 56 mm wide device connection 3x (M20x 1.5) 1 NO/1 NC slow action contacts rotary actuator adjustable right/left, with metal lever 27 mm long and plastic roller 19 mm ... Lieske Part No.: 649251 Mfg Part No: 3SE51220BH01 Type: 3SE5122-0BH01 |
-5% 81,69 EUR 85,59 EUR
≈ £70.09 | ≈ $94.68
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Siemens 3SE50000CA00 3SE5000-0CA00 switching element, Snap 1S/1
Switching element for position switch 3SE51/52 1NO/1NC snap contact Contact element SIRIUS 3SE5 for position and location detection of machine parts and position monitoring of protective devices.The ... Lieske Part No.: 715149 Mfg Part No: 3SE50000CA00 Type: 3SE5000-0CA00 |
22,70 EUR 23,66 EUR
≈ £19.48 | ≈ $26.31
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Siemens 3SE50000AH00 drive metal head, 3SE5000-0AH00 without le
Rotary lever actuator (please order lever separately) for position switch 3SE51/3SF11, for 40/56/56XL mm, switching points according to EN 50041. The switching direction of the lever can be set to ... Lieske Part No.: 855284 Mfg Part No: 3SE50000AH00 Type: 3SE5000-0AH00 |
26,79 EUR 27,92 EUR
≈ £22.99 | ≈ $31.05
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
|
|
|
Siemens 3SE51220AA00 3SE5122-0AA00 Gehäuse 56mm Metall m.Deckel türkis
Gehäuse für Positionsschalter 3SE51, 56 mm breit Metall mit Deckel, türkis Geräteanschluss 3x (M20x 1,5) Safety is a SIRIUS business. Lieske Part No.: 1278094 Mfg Part No: 3SE51220AA00 Type: 3SE5122-0AA00 |
-5% 22,58 EUR 23,65 EUR
≈ £19.37 | ≈ $26.17
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
