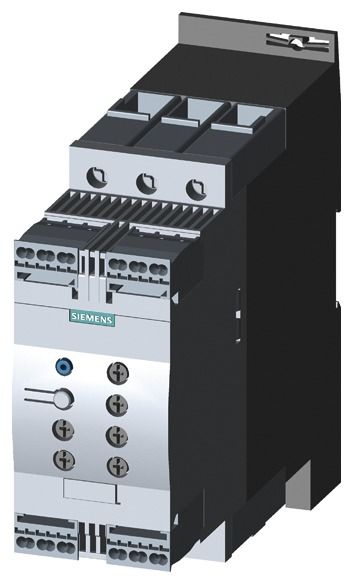

Siemens 3RW40372BB04 soft starter S2 63A 30kW/400V 40°C 24VAC/DC spring clip. content_copy

SIRIUS soft starter S2 63 A, 30 kW/400 V, 40 °C AC 200-480 V, AC/DC 24 V Spring-loaded terminals Soft starter SIRIUS 3RW40 for standard applications for the gentle starting and stopping of three-phase asynchronous motors. Stepless starting, reduction of current peaks, avoidance of mains voltage fluctuations during start-up, relief of the power supply network, reduction of mechanical load in the drive, considerable space and wiring savings compared to star-delta starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass enables the very compact design and ensures less heating in the control cabinet. Intelligent monitoring functions protect the soft starter from overheating and the motor from overload. You can also limit the current to an adjustable maximum value during start-up. With the integrated remote reset, you can quickly and easily resolve faults remotely. Worldwide approvals (e.g. IEC and UL/CSA) also for potentially explosive applications (ATEX or IEC Ex).The 3RW soft starters are available for networks up to 690 V in a wide power range with different control supply voltages and consistently with screw and spring-loaded connections. There are additional versions of the 3RW30/40 with 24 V control supply voltage. Some of the 3RW40 up to size S3 and all 3RW44 also offer thermistor motor protection.With the optional connection module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded connections. The optional fan enables an even tighter design in the control cabinet.Simple, efficient, always up to date - the SIRIUS modular system.
Type: 3RW4037-2BB04
