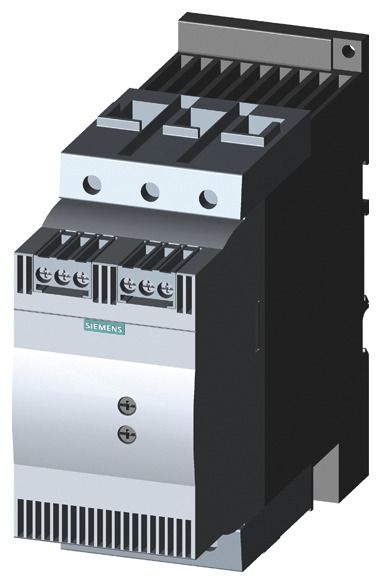

Siemens 3RW30461BB04 soft starter S3 80A 45kW/400V 40°C 24VAC/DC screw.
|
1.097,12 EUR 1.144,24 EUR |
|
|
( 1.305,57 EUR incl. VAT ) ≈ £941.33 | ≈ $1,271.56 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 1324309 |
|---|---|
| Mfg Part No: | 3RW30461BB04 |
| UPC/EAN: | 4011209719019 |
| Weight: | 1.706 kg |
Further Frequency converter, soft starter from SiemensFurther products in category Frequency converter, soft starter
All products of Siemens
Product information for Siemens 3RW30461BB04:
SIRIUS soft starter S3 80 A, 45 kW/400 V, 40 °C AC 200-480 V, AC/DC 24 V screw terminals SIRIUS 3RW30 soft starter for standard applications for the soft start of three-phase asynchronous motors. Stepless starting, reduction of current peaks, avoidance of mains voltage fluctuations during start-up, relief of the power supply network, reduction of mechanical load in the drive, considerable space and wiring savings compared to star-delta starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass enables the very compact design and ensures less heating in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA). The 3RW soft starters are available for networks up to 690 V in a wide power range with different control supply voltages and consistently with screw and spring-loaded connections. For 3RW30/40 there are additional variants with 24 V control supply voltage. Some of the 3RW40 up to size S3 and all 3RW44 also offer thermistor motor protection. With the optional connection module, the soft starters can be attached to the circuit breakers, even for the variants with spring-loaded connections. Simple, efficient, always up to date - the SIRIUS modular system.
Type: 3RW3046-1BB04
Type: 3RW3046-1BB04
Questions & answers
What is the delivery time of Siemens 3RW30461BB04 soft starter S3 80A 45kW/400V 40°C 24VAC/DC screw.?
The article Siemens 3RW30461BB04 soft starter S3 80A 45kW/400V 40°C 24VAC/DC screw. is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RW30461BB04 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siemens 3RW30461BB04 soft starter S3 80A 45kW/400V 40°C 24VAC/DC screw. always at the best possible price. We can give you a discount of 2% on Siemens 3RW30461BB04 soft starter S3 80A 45kW/400V 40°C 24VAC/DC screw. if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
