Siemens 3RV20214DA10 Motor protection switch 25 A 3RV2021-4DA10

Your rating:
Average rating
product review for Siemens 3RV20214DA10 Motor protection switch 25 A 3RV2021-4DA10
( 4.7 / 5 ) 17 ratings

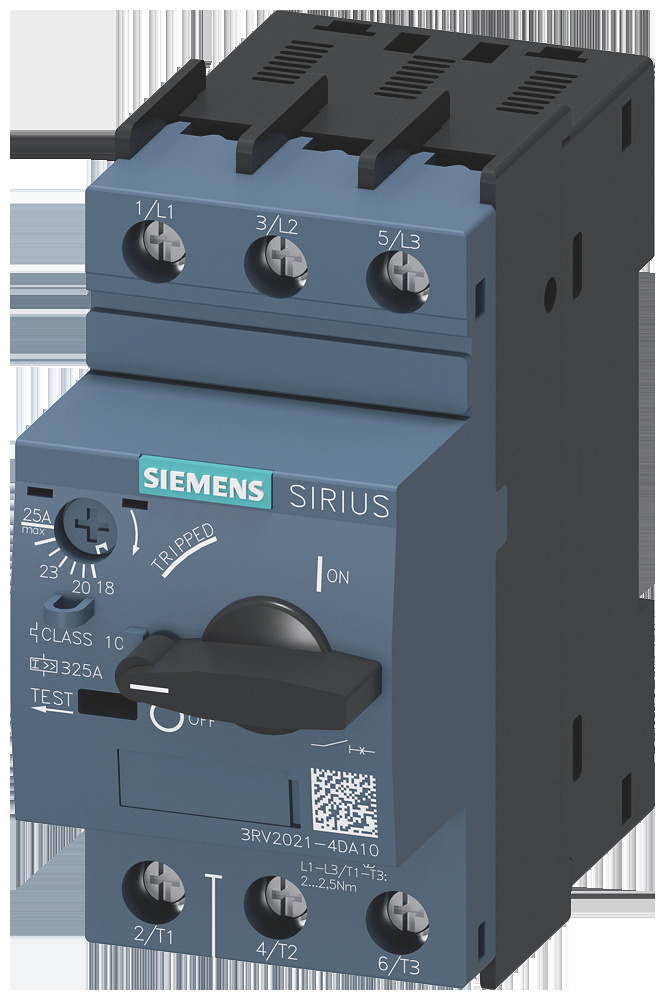

Siemens 3RV20214DA10
This image may differ from the desired article.
148,02 EUR
incl. 3,11 EUR copper surcharge
( 176,14 EUR incl. VAT )
≈ £123.89  |  ≈ $162.67
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Siemens 3RV20214DA10 Motor protection switch 25 A 3RV2021-4DA10
Datasheet:file_download Download
Lieske Part No.:123388
Mfg Part No: 3RV20214DA10
UPC/EAN: 4011209712546
Weight:0.37 kg
Type:3RV2021-4DA10
Graduated prices net
From piecesPrice per pieces
5139,33 EUR
10130,63 EUR
15121,94 EUR
20113,24 EUR

Product information for Siemens 3RV20214DA10:

The Siemens power switch type 3RV2021-4DA10 belongs to size S0 and is specifically designed for motor protection. It features an A-trip unit with an adjustable range of 18 to 25 A and an N-trip unit with 325 A, ensuring safe disconnection in case of overload and short circuit. The switch is equipped with screw terminals and offers standard switching capacity. It is used for safe disconnection of the installation from the network and for protecting consumers and installations. The compact design and low heat dissipation make it particularly suitable for use in consumer branches, especially for motors of efficiency class IE3 and IE4. The SIRIUS 3RV2 series replaces the previous 3RV1 series and offers a modular system solution with uniform accessories for all sizes.

Applications

The power switch is suitable for various applications in industrial environments, including motor protection, installation protection, short-circuit protection of starter combinations, transformer protection, as well as main or emergency stop switches. It can also be used in IT networks. Global approvals according to standards such as IEC and UL/CSA enable use in various markets. Additionally, variants for use in hazardous areas (ATEX or IEC Ex) are available, expanding the range of applications in hazardous environments.

Functions and Equipment in Detail

The switch offers an integrated overload relay function that disconnects the circuit in case of continuous overload. The screw terminal variant ensures a secure and vibration-resistant connection. Size S0 allows for compact mounting, especially in enclosures with limited space. The device is designed for use in both climate-controlled and non-climate-controlled environments, with the climate-resistant version increasing reliability under different operating conditions.

Technology Explained Simply

The A-trip unit (18–25 A) responds to thermal overload, with the setting adjusted to the rated current of the connected motor. The N-trip unit (325 A) protects against short-circuit currents and disconnects the circuit in case of sudden, high current surges. The standard switching capacity ensures safe interruption of the circuit under normal operating conditions. The screw terminal variant enables a secure connection of the conductors, which remains stable even under vibration.

Compatibility and Accessories

The device is part of the SIRIUS system building kit and can be combined with various accessories, including auxiliary switches, under-voltage release units, and signaling switches. Auxiliary switches are available in different versions, such as horizontally mounted or side-pluggable, enabling integration into control and monitoring systems. Under-voltage release units such as 3RV2902-1AV0 or 3RV2902-1AB0 can be used for additional installation protection. Compatibility with the SIRIUS 3RV29 power supply system reduces main circuit wiring and simplifies installation.

Mounting and Installation

The switch is designed for mounting in enclosures and can be directly connected to conductors using screw terminals. The compact design allows for dense arrangement in control panels. Mounting is typically done in vertical or horizontal position, with the manufacturer’s installation instructions to be observed. The use of auxiliary switches and release units requires appropriate planning of control wiring.

Advantages in Operation

The low heat dissipation of the switch reduces thermal load in the enclosure and improves operational safety. The climate-resistant version increases service life and reliability, especially in environments with high humidity or temperature fluctuations. The modular system architecture of the SIRIUS system enables flexible expansion and maintenance. Global approvals facilitate use in international projects.

General
Construction sizeS0
Degree of protectionMotor protection
A-trigger18–25 A
N-trigger325 A
Connection typeScrew connection
Switching capacityStandard
ClassCLASS 10
SystemSIRIUS 3RV2


Please note...
This article contains a copper surcharge of 3,11 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Siemens 3RV20214DA10, EAN: 4011209712546

Questions & answers

What is the delivery time of Siemens 3RV20214DA10 Motor protection switch 25 A 3RV2021-4DA10?

The article Siemens 3RV20214DA10 Motor protection switch 25 A 3RV2021-4DA10 is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RV20214DA10 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siemens 3RV20214DA10 Motor protection switch 25 A 3RV2021-4DA10 always at the best possible price. We can give you a discount of 2% on Siemens 3RV20214DA10 Motor protection switch 25 A 3RV2021-4DA10 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Siemens 3RV20214DA10 Motor protection switch 25 A 3RV2021-4DA10 we can offer you a price of 139,33 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
