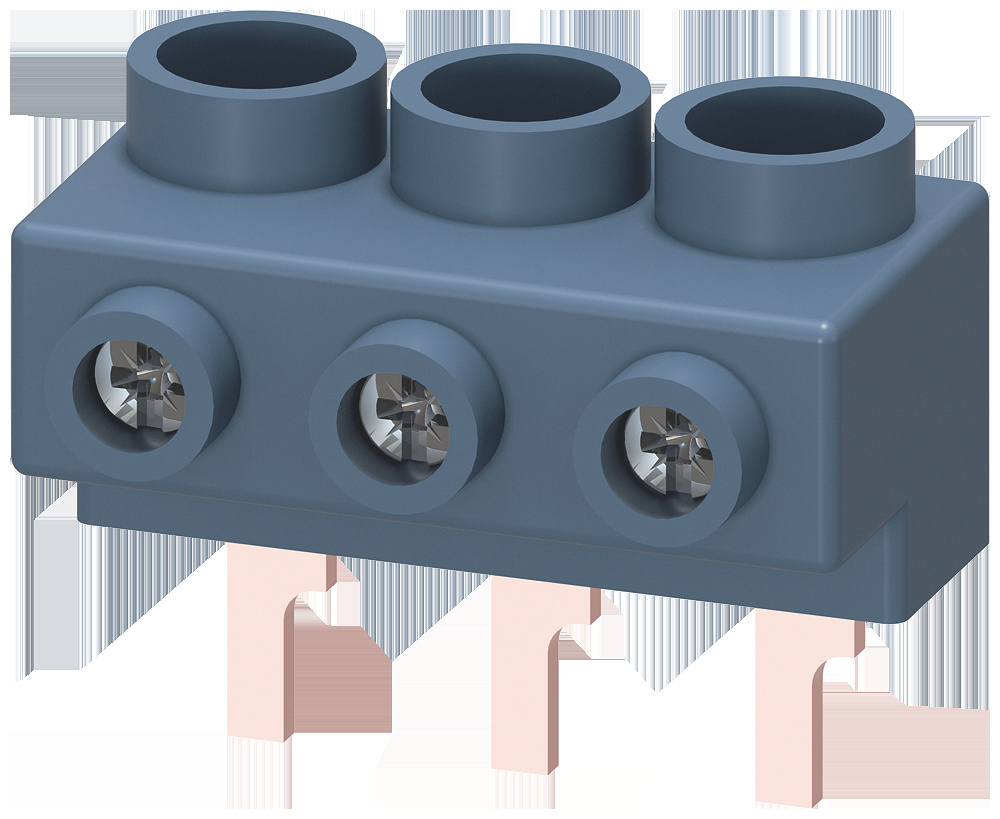

Siemens 3RV19155A 3-phase feed-in terminal 25 mm² connection from top 3RV1915-5A

Your rating:
Average rating
product review for Siemens 3RV19155A 3-phase feed-in terminal 25 mm² connection from top 3RV1915-5A
( 4.3 / 5 ) 8 ratings
Siemens 3RV19155A
This image may differ from the desired article.
Siemens 3RV19155ASiemens 3RV19155A
15,26 EUR
incl. 0,65 EUR copper surcharge
( 18,16 EUR incl. VAT )
≈ £12.77  |  ≈ $16.77
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x Siemens 3RV19155A 3-phase feed-in terminal 25 mm² connection from top 3RV1915-5A
Datasheet:file_download Download
Lieske Part No.:543343
Mfg Part No: 3RV19155A
UPC/EAN: 4011209276468
Weight:0.123 kg
Type:3RV1915-5A

Product information for Siemens 3RV19155A:

The 3-phase feed terminal from manufacturer Siemens, type 3RV1915-5A, is a component for use in the SIRIUS system building kit. It is designed to supply power to multiple motor protection switches via a 3-phase busbar and is intended for sizes S0 and S00. The terminal allows for safe and reliable power supply from above, with connections in pin form. It is designed for use in industrial electrical installations where structured and secure wiring is required.

Applications
The feed terminal is used in control panels where multiple motor protection switches are supplied with power via a common busbar. It is particularly suitable for installations with limited space, as it is compactly mounted on DIN rails. Use in industrial electrical engineering, for example in manufacturing automation or installations with multiple drives, is typical. The terminal is designed for use in enclosures where safe and insulated power supply is required.

Functions and Equipment in Detail
The terminal is designed for power supply from above, allowing easy integration into existing control panels. The pin-type connections ensure a secure and mechanically stable connection. The terminal is rated for cross-sections from 6 to 25 mm², covering a wide range of conductors. The insulation of the busbar protects against contact and increases operational safety. The terminal is part of the SIRIUS system, which is designed for modularity and compatibility, allowing it to be easily combined with other components of the system.

Technology Explained Simply
The 3-phase feed terminal transfers electrical energy from a central power source to multiple motor protection switches mounted on the same DIN rail. Power supply is via an insulated busbar, which separates the individual phases and thus prevents short circuits. The pin-type connections ensure a firm connection that remains stable even under mechanical stress. The terminal is rated for a nominal voltage of 69 V and a nominal current of 63 A, which is sufficient for typical industrial applications. Mounting is on DIN rails, enabling standardized and quick installation.

Compatibility and Accessories
The terminal is specifically designed for motor protection switches of size S0 and S00 and thus integrates into the SIRIUS system. Suitable accessories include the 3-phase feed terminal S0/S00 with designation 3RV2925-5AB, also suitable for supplying power to multiple switches via a busbar. Combining with other components of the SIRIUS system enables a modular and expandable control panel. The terminal is designed for use with motor protection switches also mounted on DIN rails.

Mounting and Installation
Mounting is on DIN rails, with the terminal secured using the designated mounting rail. Power supply is from above, allowing easy integration into existing installations. The pin-type connections are connected to the corresponding conductors, supporting cross-sections from 6 to 25 mm². The insulation of the busbar ensures a safe connection, providing protection against contact. Installation requires no special tools, as the terminal is standardly mounted on DIN rails.

Advantages in Operation
The terminal provides reliable and safe power supply for multiple motor protection switches. The insulation of the busbar increases safety and prevents short circuits. The modular design of the SIRIUS system allows flexible expansion of the control panel. Mounting on DIN rails is quick and easy, reducing installation time. The terminal is designed for industrial use and offers high mechanical stability, even under load.

Protection Rating
The terminal is designed for use in enclosed enclosures, with the insulation of the busbar providing high protection against contact.

Nominal Voltage and Nominal Current
The terminal is rated for a nominal voltage of 69 V and a nominal current of 63 A. These values are sufficient for typical industrial applications and ensure safe and reliable power supply. The terminal is suitable for use in control panels with voltages up to 69 V, with the exact voltage class not further specified.

Size
The terminal is designed for sizes S0 and S00, making it suitable for compact control panels. Size S00 is particularly suitable for small and medium installations, while S0 represents a slightly larger form. The terminal thus fits into the standard sizes of the SIRIUS system.

Connection Type
Connection is from above, allowing easy integration into existing installations. The connections are in pin form, ensuring a secure and stable connection. The terminal is rated for cross-sections from 6 to 25 mm², covering a wide range of conductors.

System Compatibility
The terminal is part of the SIRIUS system from Siemens, designed for modularity and compatibility. It can be easily combined with other components of the system, enabling a flexible and expandable control panel. Combination with motor protection switches of size S0 and S00 is standard.

Material and Insulation
The busbar is insulated, ensuring contact protection. The insulation prevents short circuits and increases safety during operation. The material of the terminal is designed for industrial use and offers high mechanical stability.

Application Scenarios
The terminal is used in industrial control panels where multiple motor protection switches are supplied with power via a common busbar. It is particularly suitable for installations in manufacturing automation, packaging industry, or installations with multiple drives. The terminal is designed for use in enclosed enclosures, with the insulation of the busbar providing high protection against contact.

General
Construction sizeS0 and S00
Connection typefrom top
Cross section6 to 25 mm²
Nominal voltage69 V
Nominal current63 A
System compatibilitySIRIUS
Accessories3RV2925-5AB
InsulationYes


Please note...
This article contains a copper surcharge of 0,65 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Siemens 3RV19155A, EAN: 4011209276468
