Siemens 3RU21161GB0 Overload relay 4.5 - 6.3 A 3RU2116-1GB0

Your rating:
Average rating
product review for Siemens 3RU21161GB0 Overload relay 4.5 - 6.3 A 3RU2116-1GB0
( 4.7 / 5 ) 7 ratings

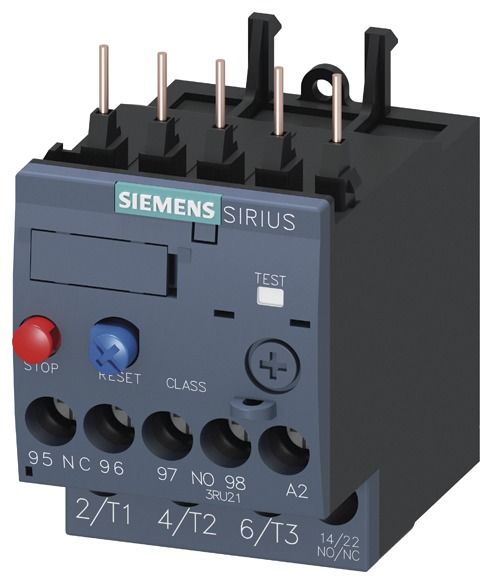

Siemens 3RU21161GB0
This image may differ from the desired article.
Siemens 3RU21161GB0Siemens 3RU21161GB0
74,82 EUR
incl. 0,83 EUR copper surcharge
( 89,04 EUR incl. VAT )
≈ £62.62  |  ≈ $82.23
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 3 pieces
1x Siemens 3RU21161GB0 Overload relay 4.5 - 6.3 A 3RU2116-1GB0
Datasheet:file_download Download
Lieske Part No.:545991
Mfg Part No: 3RU21161GB0
UPC/EAN: 4011209781658
Weight:0.152 kg
Type:3RU2116-1GB0
Graduated prices net
From piecesPrice per pieces
669,83 EUR
1264,83 EUR
2459,84 EUR
3654,84 EUR

Product information for Siemens 3RU21161GB0:

The Siemens overload relay type 3RU2116-1GB0 is a thermal protection device for industrial use, specifically designed for motor protection in size S00. It provides current-dependent protection for consumers with normal start-up against excessive heating caused by overload or phase failure. The device is part of the SIRIUS product family and is designed as a contactor-mounted unit, allowing it to be directly mounted on a power contactor. The protection function is based on a thermal overload tripping mechanism that simulates the temperature development in the motor and disconnects the circuit at critical values to prevent damage.

Applications
This overload relay is intended for use in industrial plants, particularly in drive technology and machine building, where electric motors must be protected against thermal overload. It is suitable for applications where the motor starts under normal conditions, i.e., without special start-up requirements such as high torque demands or slow acceleration. The size S00 enables compact integration into enclosures and control systems. Global approval according to IEC as well as UL/CSA makes the device suitable for use in various countries and regions. Applications in hazardous explosive areas are also possible, as the device complies with the requirements of ATEX and IETC Ex directives.

Functions and Equipment in Detail
The device features an adjustable range for the overload tripping mechanism from 4.5 to 6.3 amperes, making it suitable for motors with corresponding rated currents. The tripping is thermal, thereby simulating the motor’s heating. Resetting of the relay is performed via a manual-automatic RESET, allowing reset either manually or automatically after the fault has subsided. The main and auxiliary circuits are equipped with screw terminals, ensuring a secure and vibration-resistant connection. The screw connection is designed for easy mounting and maintenance, enabling quick installation without additional tools.

Technology Explained Simply
The thermal overload relay uses a bimetal strip that deforms when heated by motor current. When the set threshold is exceeded, the bimetal strip trips and disconnects the circuit. The tripping time depends on temperature and current profile, allowing the device to simulate the thermal load on the motor. The Class 10 setting means the relay trips within 2 seconds at 10 times the rated current, which is sufficient for protection against short circuits and severe overloads. The screw terminals ensure a stable connection that remains secure even under vibration, which is important in industrial environments.

Compatibility and Accessories
The overload relay is designed for use with contactors from the SIRIUS series, particularly models such as 3RT2015-1BB41 or 3RT2015-1BB42. It is part of a modular system kit, allowing it to be combined with various accessories. These include, for example, scale covers such as 3RV2908-0P, which provide a sealable cover for the adjustment scale, or individual mounting brackets such as 3RU2916-3AA01, which allow the relay to be mounted in individual installations. Additional overload relays for other adjustment ranges are also available, such as model 3RU2116-1GC0 for 4.5–6.3 A.

Mounting and Installation
Mounting is done directly on the contactor, using the screw terminals for the main and auxiliary circuits. Connection is achieved by simply inserting the conductors and tightening the screws. The positioning is designed to correctly simulate the thermal effect of the motor. Mounting height and orientation are not critical, as long as air circulation for thermal cooling is ensured. Installation requires no additional tools, as the screw terminals are standardized.

Advantages in Operation
The relay provides reliable protection against thermal overload, thereby extending the service life of connected motors. The thermal tripping characteristic matches the heat development in the motor, enabling precise protection. The screw terminals ensure a stable connection that holds even under industrial conditions. The manual-automatic RESET function allows flexible resetting depending on operating conditions. Compatibility with the SIRIUS system kit enables flexible expansion and adaptation to various requirements.

General
Adjustment range4,5–6,3 A
Degree of protectionThermal
Construction sizeS00
Release classClass 10
Connection typescrew
ResetManual-automatic RESET
Add-on typeContactor mounting
ApprovalsIEC, UL/CSA, ATEX, IEC Ex


Please note...
This article contains a copper surcharge of 0,83 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Siemens 3RU21161GB0, EAN: 4011209781658

Questions & answers

What is the delivery time of Siemens 3RU21161GB0 Overload relay 4.5 - 6.3 A 3RU2116-1GB0?

The article Siemens 3RU21161GB0 Overload relay 4.5 - 6.3 A 3RU2116-1GB0 is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RU21161GB0 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siemens 3RU21161GB0 Overload relay 4.5 - 6.3 A 3RU2116-1GB0 always at the best possible price. We can give you a discount of 2% on Siemens 3RU21161GB0 Overload relay 4.5 - 6.3 A 3RU2116-1GB0 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Siemens 3RU21161GB0 Overload relay 4.5 - 6.3 A 3RU2116-1GB0 we can offer you a price of 69,83 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
