Siemens 3RT19755NB32 3RT1975-5NB32 plug-in coil S12 for 3RT107/3RT127/3RT147 AC/DC UC21-27.3 V

Your rating:
Average rating
product review for Siemens 3RT19755NB32 3RT1975-5NB32 plug-in coil S12 for 3RT107/3RT127/3RT147 AC/DC UC21-27.3 V
( 4.5 / 5 ) 2 ratings

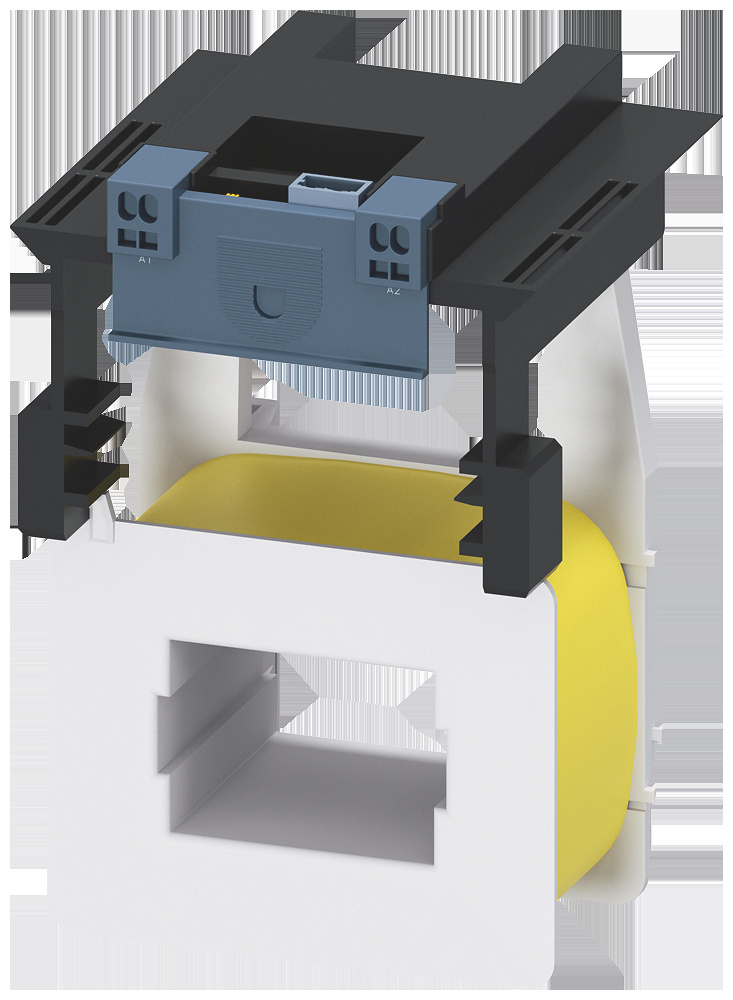

Siemens 3RT19755NB32
This image may differ from the desired article.
624,00 EUR 625,86 EUR
( 742,56 EUR incl. VAT )
≈ £522.29  |  ≈ $685.78
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Siemens 3RT19755NB32 3RT1975-5NB32 plug-in coil S12 for 3RT107/3RT127/3RT147 AC/DC UC21-27.3 V
Lieske Part No.:127697
Mfg Part No: 3RT19755NB32
UPC/EAN: 4011209584396
Weight:1.375 kg
Type:3RT1975-5NB32
Graduated prices net
From piecesPrice per pieces
3591,24 EUR
6558,48 EUR
9525,72 EUR
12492,96 EUR

Product information for Siemens 3RT19755NB32:

The item 3RT1975-5NB32 is an alternating drive of the Siemens SIRIUS series, specifically designed as an insert coil for contactors of types 3RT107, 3RT127, and 3RT147. It serves as an electronic drive enabling the actuation of contactors via a PLC interface. The coil is designed for operating voltages in the range of 21 to 27.3 V, supporting both alternating current (AC, 50–60 Hz) and direct current (DC). Electronic control is achieved via a DC 24 V interface, which can be directly connected to a PLC. The spring return connection is designed as a single connection, enabling compact and rapid integration into existing control systems.

Applications

The alternating drive 3RT1975-5NB32 is used in industrial plants where flexible and automated control of contactors is required. It is particularly suitable for applications in manufacturing automation, where contactors must be controlled via a PLC. Its use in combination with contactor types 3RT107, 3RT127, and 3RT147 enables modular expansion of existing control systems without altering the mechanical base structure. The coil is designed for use in systems requiring high operational safety and reliability.

Functions and Equipment in Detail

The drive operates electronically and controls the contactor contacts via a PLC interface. Actuation is performed through a DC 24 V interface, which connects directly to the control unit. The voltage range of 21 to 27.3 V allows flexible adaptation to various supply voltages commonly found in industrial environments. The spring return connection is designed as a single connection, simplifying installation and reducing the number of required connections. The coil is designed as an insert coil, enabling easy replacement and maintenance.

Technology Explained Simply

Electronic control of the drive is achieved via a PLC interface, enabling direct communication with the control unit. Actuation occurs through a DC 24 V interface, typically connected to the output interface of a PLC. The voltage range of 21 to 27.3 V is designed for industrial environments where voltage fluctuations may occur. The coil is dimensioned to generate the required magnetic force to actuate the contacts of the contactor. The spring return connection ensures the coil is securely seated in the contactor and provides a stable connection.

Compatibility and Accessories

The alternating drive 3RT1975-5NB32 is specifically designed for contactor types 3RT107, 3RT127, and 3RT147. It is designed as an insert coil, allowing direct replacement of existing coils. Compatibility with these contactor types ensures modular expansion of existing systems. The coil is designed for use in combination with PLC control systems, where the DC 24 V interface connects directly to the control outputs.

Installation and Mounting

Mounting is performed by inserting the insert coil into the corresponding contactor (3RT107, 3RT127, or 3RT147). The spring return connection ensures secure anchoring of the coil within the contactor. Electronic control is achieved via the DC 24 V interface, which connects to the PLC. Installation requires no additional tools or components. The coil is designed to be directly inserted into the contactor without requiring any modification to the mechanical structure.

Operational Advantages

Using the alternating drive 3RT1975-5NB32 enables flexible and automated control of contactors via a PLC. Electronic control provides high reliability and precise actuation of contacts. The modular design as an insert coil simplifies maintenance and replacement. Compatibility with contactor types 3RT107, 3RT127, and 3RT147 allows easy integration into existing systems. Actuation via DC 24 V enables direct connection to the PLC, linking the control level directly to the switching function.

General
DriveElectronic
PLC interfaceDC 24 V
Operating voltage21 ... 27,3 V
Voltage typeAC/DC
Frequency range50 ... 60 Hz
Spring return connectionSingle-strap
Compatibility3RT107, 3RT127, 3RT147


Questions & answers

What is the delivery time of Siemens 3RT19755NB32 3RT1975-5NB32 plug-in coil S12 for 3RT107/3RT127/3RT147 AC/DC UC21-27.3 V?

The article Siemens 3RT19755NB32 3RT1975-5NB32 plug-in coil S12 for 3RT107/3RT127/3RT147 AC/DC UC21-27.3 V is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RT19755NB32 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siemens 3RT19755NB32 3RT1975-5NB32 plug-in coil S12 for 3RT107/3RT127/3RT147 AC/DC UC21-27.3 V always at the best possible price. We can give you a discount of 2% on Siemens 3RT19755NB32 3RT1975-5NB32 plug-in coil S12 for 3RT107/3RT127/3RT147 AC/DC UC21-27.3 V if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Siemens 3RT19755NB32 3RT1975-5NB32 plug-in coil S12 for 3RT107/3RT127/3RT147 AC/DC UC21-27.3 V we can offer you a price of 591,24 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
