Siemens 3RT19655AB32 3RT1965-5AB32 plug-in coil for S10 for 3RT106/3RT146 AC/DC UC23-26V

Your rating:
Average rating
product review for Siemens 3RT19655AB32 3RT1965-5AB32 plug-in coil for S10 for 3RT106/3RT146 AC/DC UC23-26V
( 4.5 / 5 ) 2 ratings

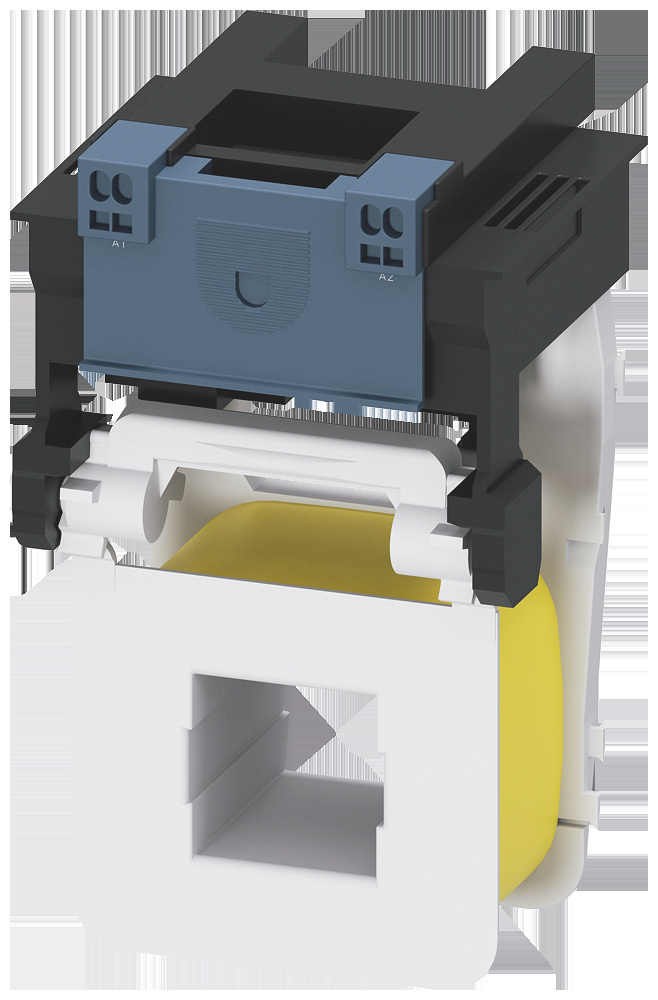

Siemens 3RT19655AB32
This image may differ from the desired article.
202,59 EUR
incl. 10,30 EUR copper surcharge
( 241,08 EUR incl. VAT )
≈ £169.57  |  ≈ $222.65
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Siemens 3RT19655AB32 3RT1965-5AB32 plug-in coil for S10 for 3RT106/3RT146 AC/DC UC23-26V
Lieske Part No.:127694
Mfg Part No: 3RT19655AB32
UPC/EAN: 4011209584167
Weight:1.042 kg
Type:3RT1965-5AB32
Graduated prices net
From piecesPrice per pieces
5192,49 EUR
10182,40 EUR
15172,30 EUR
20162,21 EUR

Product information for Siemens 3RT19655AB32:

The article 3RT1965-5AB32 is an alternating drive, specifically developed for use with contactors of the 3RT106 and 3RT146 series in the SIRIUS system kit from Siemens. It serves as an insert coil for actuating contactors and enables electrical control via AC or DC voltage in the range of 23 to 26 volts. The coil is designed for operating voltages in the frequency range of 50 to 60 Hz and can be operated with both alternating and direct voltage. The drive is designed as a standard version and features an energy-saving circuit that reduces energy consumption during operation. The spring tension connection type is designed as simple, enabling easy installation and maintenance.

Applications

The alternating drive 3RT1965-5AB32 is used in industrial applications where contactors of the 3RT106 and 3RT146 series must be actuated. It is suitable for systems requiring electrical control via AC or DC voltage in the range of 23 to 26 V. Use in the SIRIUS system kit enables modular and flexible system design that can be adapted to different requirements. The coil is designed for use in electrical control systems used in industry, manufacturing technology, or automation technology.

Functions and Equipment in Detail

The coil 3RT1965-5AB32 is designed as an insert coil, meaning it is inserted into the corresponding contactors of the 3RT106 and 3RT146 series without requiring the entire contactor to be replaced. Actuation is performed via an electrical voltage in the range of 23 to 26 V, supporting both alternating and direct voltage. The energy-saving circuit ensures that the coil consumes less current during operation, which is particularly advantageous during frequent switching operations. The spring tension connection type is designed as simple, enabling easy mechanical connection.

Technology Explained Simply

The coil 3RT1965-5AB32 operates as an electromagnetic drive, activated by applying a voltage in the range of 23 to 26 V. The electromagnetic force pulls the contactor’s armature, thereby closing or opening the contacts. The energy-saving circuit reduces current consumption in the energized state by decreasing the current strength after the armature is attracted. This extends the coil’s service life and reduces heat generation. The spring tension connection type ensures a secure mechanical connection between the coil and the contactor, guaranteeing reliable operation.

Compatibility and Accessories

The alternating drive 3RT1965-5AB32 is specifically designed for use with contactors of the 3RT106 and 3RT146 series in the SIRIUS system kit. It is compatible with AC and DC actuation in the voltage range of 23 to 26 V. Use in combination with other components of the SIRIUS system enables modular system design that can be adapted to specific requirements.

Installation and Mounting

Mounting is performed by inserting the insert coil into the designated position in the contactor of the 3RT106 or 3RT146 series. The spring tension connection type allows for a simple mechanical connection that can be carried out without additional tools or special mounting aids. The electrical connection is made via the corresponding terminal clamps of the contactor. Installation takes place in electrical control systems designed for industrial use.

Operational Advantages

Using the coil 3RT1965-5AB32 offers the advantage of modular system design, as it can be installed as an insert coil into existing contactors without replacing the entire contactor. The energy-saving circuit reduces current consumption during operation, which, especially during frequent switching operations, leads to a longer service life and reduced heat generation. The simplicity of the spring tension connection type facilitates installation and maintenance, thereby extending the operational time of the system. Compatibility with AC and DC actuation in the voltage range of 23 to 26 V expands application possibilities in various scenarios.

General
ApplicationChangeover drive for contactors 3RT106, 3RT146
Operating voltage23 ... 26 V
Frequency range50 ... 60 Hz
ActuationAC/DC
DriveStandard
Spring return connectionSingle-strap
SystemSIRIUS system building block
Energy-saving circuitYes


Please note...
This article contains a copper surcharge of 10,30 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of Siemens 3RT19655AB32 3RT1965-5AB32 plug-in coil for S10 for 3RT106/3RT146 AC/DC UC23-26V?

The article Siemens 3RT19655AB32 3RT1965-5AB32 plug-in coil for S10 for 3RT106/3RT146 AC/DC UC23-26V is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RT19655AB32 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siemens 3RT19655AB32 3RT1965-5AB32 plug-in coil for S10 for 3RT106/3RT146 AC/DC UC23-26V always at the best possible price. We can give you a discount of 2% on Siemens 3RT19655AB32 3RT1965-5AB32 plug-in coil for S10 for 3RT106/3RT146 AC/DC UC23-26V if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Siemens 3RT19655AB32 3RT1965-5AB32 plug-in coil for S10 for 3RT106/3RT146 AC/DC UC23-26V we can offer you a price of 192,49 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
