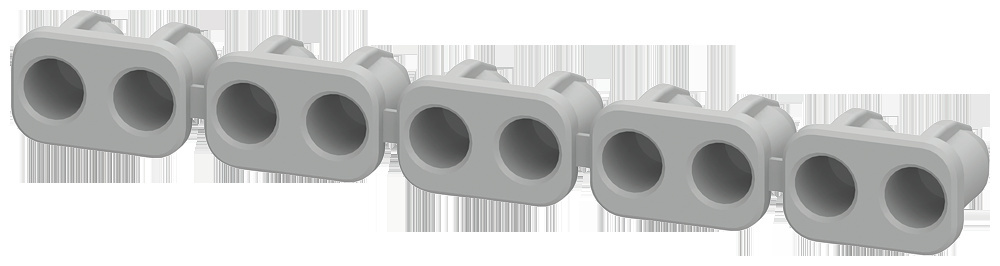

Siemens 3RT19164JA02 3RT1916-4JA02 isolation stop circuit connection terminal pairs per contactor 2 circuits required
|
3,83 EUR |
|||||||||||
|
( 4,56 EUR incl. VAT ) ≈ £3.21 | ≈ $4.21 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 111256 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3RT19164JA02 | ||||||||||
| UPC/EAN: | 4011209326668 | ||||||||||
| Weight: | 0.001 kg | ||||||||||
| Type: | 3RT1916-4JA02 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Siemens 3RT19164JA02:
Applications
The insulation stop string is used in industrial plants where a clear separation between main and control circuits is required. It is particularly suitable for applications in manufacturing automation, machine building, and plant control, where a safe and reliable connection of auxiliary lines is necessary. Use in combination with contactors and auxiliary switches from the SIRIUS series ensures high compatibility and simplifies installation and maintenance.
Functions and Equipment in Detail
The item includes 5 terminal pairs, which are detachable in pairs. This allows flexible adaptation to different connection requirements without requiring additional components. The insulation function ensures that individual conductors are electrically separated, increasing safety and preventing short circuits. The packaging unit contains 20 strings, enabling cost-effective procurement for larger projects.
Technology Explained Simply
The insulation stop string is a modular component installed in the control units of contactors and auxiliary switches. The detachable pair construction allows only the required terminal pairs to be used, making installation more efficient and clearer. The insulation between individual terminal pairs prevents unwanted electrical connections, which is particularly important in complex control systems. Use within the SIRIUS platform ensures high standardization and compatibility with other system components.
Compatibility and Accessories
The item is specifically designed for contactors of types 3RT2.2, 3RT2.3, 3RT2.4, and 3RT1, as well as for auxiliary switches of type 3RH29. As suitable accessories, the model 3RT2916-4JA02 is offered, which also includes insulation stop string terminal pairs per contactor. Combining these components enables a consistent and uniform equipment of switching systems, simplifying maintenance and expansion of the systems.
Installation and Mounting
Mounting is done by inserting into the designated control connection points of contactors and auxiliary switches. The detachable pair construction allows for adaptable installation, using only the required terminal pairs. Installation does not require special tools, as the terminals are mechanically inserted into the designated sockets.
Operational Advantages
Using the insulation stop string 3RT1916-4JA02 provides clear structuring of control lines, simplifying fault diagnosis and maintenance. The insulation between terminal pairs increases electrical safety and prevents short circuits. The modular design enables flexible adaptation to different connection configurations, making planning and installation of switching systems more efficient. Use within the SIRIUS platform ensures high compatibility with other components and supports standardization in industrial plants.
| General | |
| Number of terminal block pairs | 5 |
| Removability | Pair |
| Application range | auxiliary and control current |
| Compatibility | Contactors 3RT2.2, 3RT2.3, 3RT2.4, 3RT1; auxiliary switches 3RH29 |
Questions & answers
What is the delivery time of Siemens 3RT19164JA02 3RT1916-4JA02 isolation stop circuit connection terminal pairs per contactor 2 circuits required?
The article Siemens 3RT19164JA02 3RT1916-4JA02 isolation stop circuit connection terminal pairs per contactor 2 circuits required is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RT19164JA02 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siemens 3RT19164JA02 3RT1916-4JA02 isolation stop circuit connection terminal pairs per contactor 2 circuits required always at the best possible price. We can give you a discount of 2% on Siemens 3RT19164JA02 3RT1916-4JA02 isolation stop circuit connection terminal pairs per contactor 2 circuits required if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Siemens 3RT19164JA02 3RT1916-4JA02 isolation stop circuit connection terminal pairs per contactor 2 circuits required we can offer you a price of 3,74 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
