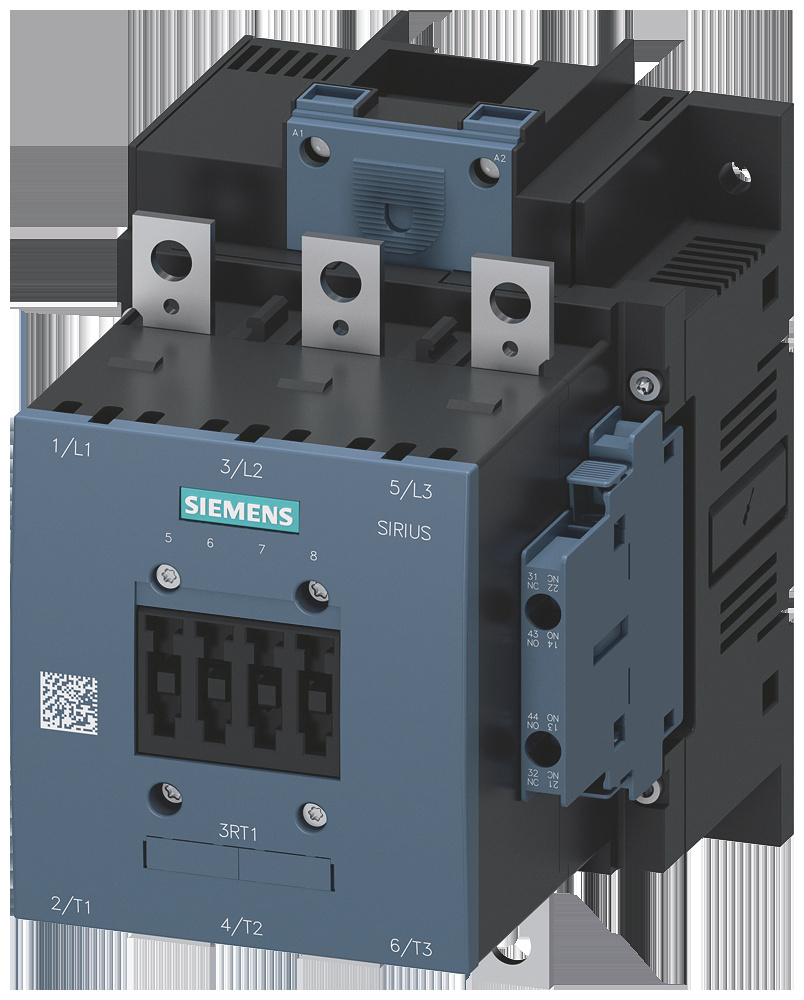

Siemens 3RT10566AD36 3RT1056-6AD36 contactor 90 kW/400 V/AC-3 UC 42–48 V auxiliary contacts 2NO+2NC
|
1.141,00 EUR |
|||||||||||
|
incl. 11,43 EUR copper surcharge ( 1.357,79 EUR incl. VAT ) ≈ £955.02 | ≈ $1,253.96 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 127283 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3RT10566AD36 | ||||||||||
| UPC/EAN: | 4011209507500 | ||||||||||
| Weight: | 3.29 kg | ||||||||||
| Type: | 3RT1056-6AD36 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Siemens 3RT10566AD36:
Applications
This contactor is designed for use in industrial plants, particularly in drive technology and motor control applications. It is suitable for applications requiring high switching capacity in a compact design. Global certification according to IEC and UL/CSA enables use in various markets. The IE3/IE4-Ready feature supports requirements for energy-efficient drives. The climate-resistant design ensures reliable operation under different environmental conditions.
Functions and Equipment in Detail
The device features a conventional drive and is designed for operation with DC voltage in the range of 42–48 V. Main current circuits are connected via rails, while control and auxiliary circuits use screw connections. The pre-mounted auxiliary switches (2 S + 2 Oe) reduce mounting complexity and allow direct connection to control systems. Contactors are available in various sizes and offer high contact reliability.
Technology Explained Simply
Operation via DC voltage in the range of 42–48 V enables safe and reliable control, especially in systems with separate control circuits. The 3-pole design ensures complete disconnection of the main circuit. The pre-mounted auxiliary switches simplify integration into existing control systems, as they can be directly connected to the control system without additional mounting work. Screw connections in the control and auxiliary circuits provide a secure and maintenance-friendly connection.
Compatibility and Accessories
The contactor is part of the SIRIUS system building kit and can be combined with various accessories. These include, for example, connection covers, wiring sets, mechanical connectors, parallel switching connections, terminal covers, auxiliary switch blocks, frame terminal blocks, and identification plates. These components support installation, protection, and identification of the system. Combination with other SIRIUS components enables modular and scalable system design.
Mounting and Installation
Mounting is done via rails in the main circuit. Control and auxiliary circuits are connected via screw terminals. The pre-mounted auxiliary switches simplify installation as they are already integrated into the device. Screw connections ensure a secure and vibration-resistant connection. The use of accessories such as terminal covers or frame terminal blocks can further optimize installation.
Advantages in Operation
The contactor offers high switching capacity in a compact design. The pre-mounted auxiliary switches reduce installation time and complexity. Global certification and the IE3/IE4-Ready feature support use in energy-efficient systems. The climate-resistant design ensures reliable operation under various environmental conditions. Compatibility with the SIRIUS system building kit enables flexible and modular system design.
| General | |
| Nominal power | 90 kW |
| Operating voltage main circuit | 400 V AC |
| Frequency | 50–60 Hz |
| Nominal current | 185 A |
| Actuation voltage | 42–48 V DC |
| Operation mode | AC-3e/AC-3 |
| Number of poles | 3 way |
| Auxiliary switch | 2 S + 2 Ö |
| Drive | Conventional |
| Main circuit connection | Rail |
| Control and auxiliary circuit connection | Screw connection |
| System | SIRIUS 3RT1 |
