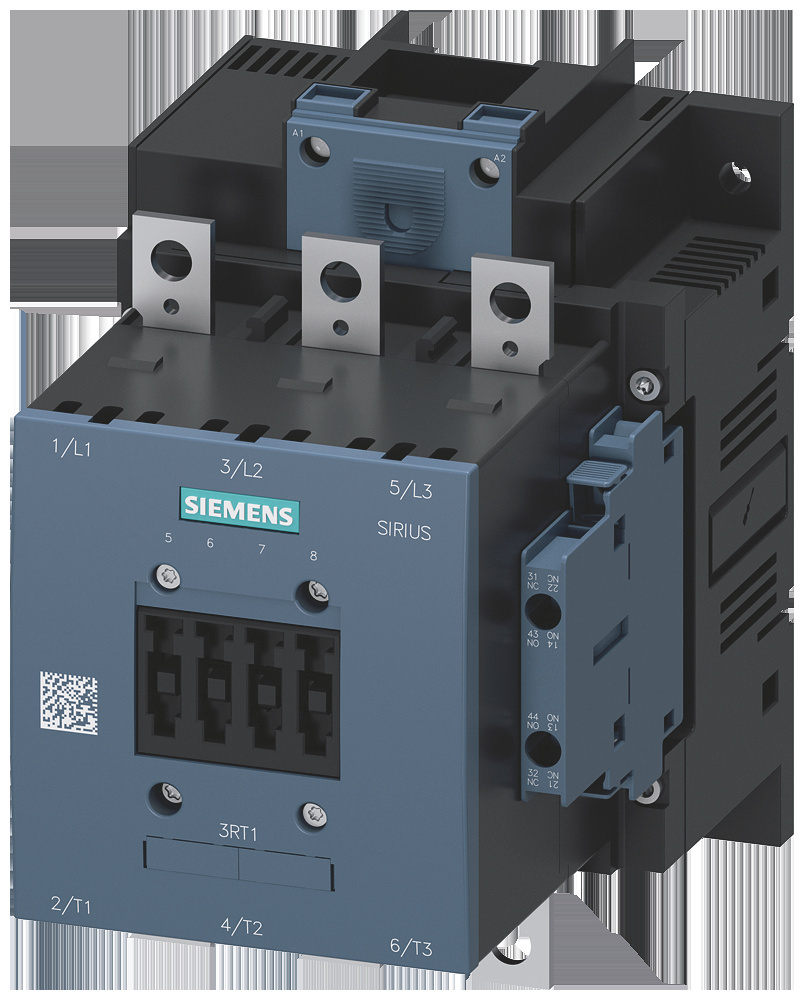

Siemens 3RT10556AT36 3RT1055-6AT36 contactor 75 kW/400 V/AC-3 UC 575–600 V auxiliary contacts 2 NO+2 NC
|
902,52 EUR |
|||||||||||
|
incl. 9,04 EUR copper surcharge ( 1.074,00 EUR incl. VAT ) ≈ £755.41 | ≈ $991.87 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 125958 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3RT10556AT36 | ||||||||||
| UPC/EAN: | 4011209507364 | ||||||||||
| Weight: | 3.412 kg | ||||||||||
| Type: | 3RT1055-6AT36 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Siemens 3RT10556AT36:
Applications
This contactor is intended for use in industrial drive systems, particularly in applications requiring high electrical power. It is suitable for use in motor control systems where reliable and robust switching functions are required. The weather-resistant design allows use in various environments, including industrial conditions with increased mechanical stress. Global certification according to standards such as IEC and UL/CSA ensures suitability for international markets.
Functions and Equipment in Detail
The device features pre-mounted auxiliary switches with a configuration of 2 NO (normally open) and 2 NC (normally closed) contacts, simplifying integration into control systems. These auxiliary switches reduce wiring complexity and allow direct connection to controls or via a PLC input. The contactors are IE3/IE4-ready, meaning they are suitable for use with energy-efficient motors that comply with current energy efficiency standards.
Technology Explained Simply
Operation is performed via DC voltage in the range of 575 to 600 V, representing a high voltage for control purposes and suitable for applications in industrial environments with corresponding supply voltage. The 3-pole design enables switching of three-phase AC systems. Screw terminals in the control and auxiliary circuits provide a secure and mechanically stable connection. Main circuits are connected via a rail, enabling standardized mounting in enclosures.
Compatibility and Accessories
The contactor is compatible with various accessories that facilitate use and maintenance. These include auxiliary circuit connectors, terminal covers, auxiliary switch blocks, identification plates, plug-in coils, wiring kits, parallel connection links, mechanical connectors, frame terminal blocks, and terminal covers. These components allow individual adaptation to specific requirements, such as expanding auxiliary switch functions or improving wiring safety.
Mounting and Installation
Mounting is performed via a rail in the main circuit, enabling quick and standardized installation in enclosures. Control and auxiliary circuits are connected via screw terminals, ensuring a mechanically stable and maintenance-friendly connection. Pre-mounted auxiliary switches reduce installation effort and enable direct integration into existing control systems.
Advantages in Operation
The contactor features a compact design and high contact reliability, enabling long service life and low maintenance frequency. Integration into the SIRIUS system ensures high compatibility with other components and reduces overall system complexity. Global certification and IE3/IE4-ready characteristics increase application flexibility and support the transition to energy-efficient drive systems.
| General | |
| Nominal current | 150 A |
| Nominal power | 75 kW |
| Operating voltage | 400 V AC |
| Frequency | 50-60 Hz |
| Control and auxiliary circuit | Screw connection |
| Main circuit | Rail |
| Actuation voltage | 575-600 V DC |
| Number of auxiliary switches | 2 S + 2 Ö |
| Drive | Conventional |
| Number of poles | 3 way |
| Operation mode | AC-3e/AC-3 |
| System | SIRIUS |
| Approvals | IEC, UL/CSA |
| Energy efficiency class | IE3/IE4-ready |
Questions & answers
What is the delivery time of Siemens 3RT10556AT36 3RT1055-6AT36 contactor 75 kW/400 V/AC-3 UC 575–600 V auxiliary contacts 2 NO+2 NC?
The article Siemens 3RT10556AT36 3RT1055-6AT36 contactor 75 kW/400 V/AC-3 UC 575–600 V auxiliary contacts 2 NO+2 NC is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RT10556AT36 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siemens 3RT10556AT36 3RT1055-6AT36 contactor 75 kW/400 V/AC-3 UC 575–600 V auxiliary contacts 2 NO+2 NC always at the best possible price. We can give you a discount of 2% on Siemens 3RT10556AT36 3RT1055-6AT36 contactor 75 kW/400 V/AC-3 UC 575–600 V auxiliary contacts 2 NO+2 NC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Siemens 3RT10556AT36 3RT1055-6AT36 contactor 75 kW/400 V/AC-3 UC 575–600 V auxiliary contacts 2 NO+2 NC we can offer you a price of 869,01 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
