Siemens 3RS70061FE00 3RS7006-1FE00 SIRIUS 3RS70 universal converter switchable, active

Your rating:
Average rating
product review for Siemens 3RS70061FE00 3RS7006-1FE00 SIRIUS 3RS70 universal converter switchable, active
( 4.5 / 5 ) 2 ratings

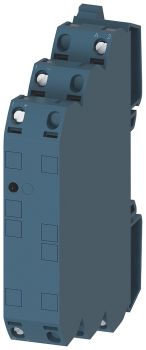

Siemens 3RS70061FE00
This image may differ from the desired article.
382,50 EUR
( 455,17 EUR incl. VAT )
≈ £320.15  |  ≈ $420.37
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Siemens 3RS70061FE00 3RS7006-1FE00 SIRIUS 3RS70 universal converter switchable, active
Lieske Part No.:322192
Mfg Part No: 3RS70061FE00
UPC/EAN: 4047621001128
Weight:0.076 kg
Type:3RS7006-1FE00
Graduated prices net
From piecesPrice per pieces
4362,42 EUR
8342,34 EUR
12322,26 EUR
16302,18 EUR

Product information for Siemens 3RS70061FE00:

The Siemens signal isolator 3RS7006-1FE00 belongs to the SIRIUS 3RS70 series and is used for galvanic isolation as well as adjustable conversion of analog standard signals or common sensor signals between control and sensor/actuator systems. It is designed as a universal, switchable, and active device, enabling flexible use with various input signals. Connection is made via screw terminals, and the device is designed for an operating voltage of 24 V AC/DC. The compact design saves space on the DIN rail, particularly in shallow control cabinets and enclosures with narrow row spacing. The titanium gray design matches visually with other Siemens devices in the enclosure.

Applications

The signal isolator is used in industrial automation systems where galvanic isolation of analog signals is required to prevent interference between individual channels. It is suitable for applications where various analog signals, such as current or voltage signals from sensors or actuators, must be converted into a standardized output signal. The 3-way isolation ensures safe electrical separation between input, output, and supply voltage, enhancing signal quality and operational safety.

Functions and Features in Detail

The signal isolator 3RS7006-1FE00 offers a wide range of input ranges that can be selected via a switch. These include voltage signals such as 0–60 mV, 0–100 mV, 0–300 mV, 0–500 mV, 0–1 V, 0–2 V, 0–5 V, 0–20 V, 2–10 V, as well as current signals such as 0–5 mA, 0–10 mA, 0–20 mA, 4–20 mA, ±5 mA, and ±20 mA. The output signals are fixed at 0–10 V and 0/4–20 mA. Galvanic isolation prevents mutual interference between analog channels, which is particularly advantageous in complex control systems. The switchable input ranges allow flexible adaptation to different sensors and measuring devices without replacing the device.

Technology Explained Simply

Galvanic isolation is achieved through electrical separation between the input and output circuits, preventing disturbances that could arise from common ground connections or voltage fluctuations. The device operates actively, meaning it amplifies the input signals and converts them to the output signal without requiring an external amplifier. The supply voltage of 24 V AC/DC is a standard value in automation technology and is typically provided via a central power supply in the enclosure. Screw terminals allow for secure and mechanically stable connections for the wiring.

Compatibility and Accessories

Various accessories are available to extend and optimize installation. These include potential isolation plates (e.g., 3RQ3900-0A) for additional potential isolation, as well as connection lugs in various pole counts (2-pole, 4-pole, 8-pole, 16-pole) for simplified wiring. Additional signal isolators such as the 3RS7006-2FE00 (3-way, 24 V, input 0–60 mV, 0–100 mV, 0–300 mV) or the 3RS7005-1FE00 (multi-range isolator, 0–10 V) can be combined depending on requirements. The 3RS70 series replaces the previous 3RS17 series, with the new models featuring a more compact design and modern appearance.

Mounting and Installation

The signal isolator is mounted on a DIN rail, enabling quick and secure installation in the enclosure. The screw terminals require no special tools and can be connected with a standard screwdriver. The input range switching is done via a mechanical switch on the device, which is set according to the application. Installation typically takes place in a closed enclosure, where environmental conditions (temperature, humidity) must not affect operation.

Operational Advantages

Galvanic isolation ensures high signal quality and prevents interference in the control system. The switchable input ranges increase flexibility and reduce inventory requirements, as one device can be used for multiple applications. The compact design saves space in the enclosure, and the uniform titanium gray design supports a clear and professional installation. The use of standard supply voltages (24 V AC/DC) simplifies integration into existing systems.

General
ManufacturerSiemens
Product seriesSIRIUS 3RS70
FunctionIsolation transformer
Operating voltage24 V AC/DC
Input signals0–60 mV, 0–100 mV, 0–300 mV, 0–500 mV, 0–1 V, 0–2 V, 0–5 V, 0–10 mA, 0–20 V, 2–10 V, 0–5 mA, 0–10 mA, 0–20 mA, 4–20 mA, ±5 mA, ±20 mA
Output signals0–10 V, 0/4–20 mA
Separation3-way
Connection typeScrew connection
Construction typecompact, for DIN rail
Designtitanium grey
Operation modeactive, switchable


Questions & answers

What is the delivery time of Siemens 3RS70061FE00 3RS7006-1FE00 SIRIUS 3RS70 universal converter switchable, active?

The article Siemens 3RS70061FE00 3RS7006-1FE00 SIRIUS 3RS70 universal converter switchable, active is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RS70061FE00 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siemens 3RS70061FE00 3RS7006-1FE00 SIRIUS 3RS70 universal converter switchable, active always at the best possible price. We can give you a discount of 2% on Siemens 3RS70061FE00 3RS7006-1FE00 SIRIUS 3RS70 universal converter switchable, active if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Siemens 3RS70061FE00 3RS7006-1FE00 SIRIUS 3RS70 universal converter switchable, active we can offer you a price of 362,42 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
