Siemens 3RN20122BW30 thermistor motor protection relay

Your rating:
Average rating
product review for Siemens 3RN20122BW30 thermistor motor protection relay
( 5 / 5 ) 1 ratings

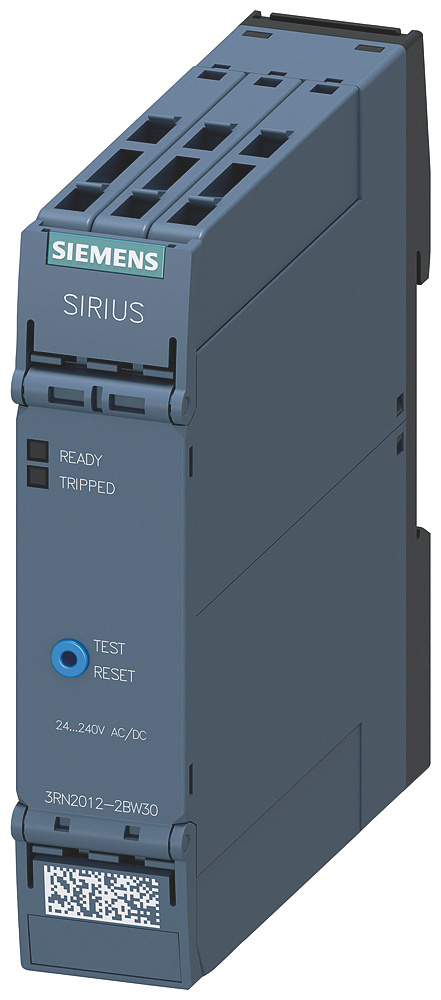

Siemens 3RN20122BW30
This image may differ from the desired article.
208,72 EUR
incl. 2,29 EUR copper surcharge
( 248,38 EUR incl. VAT )
≈ £174.70  |  ≈ $229.38
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: 3 pieces
1x Siemens 3RN20122BW30 thermistor motor protection relay
Lieske Part No.:324457
Mfg Part No: 3RN20122BW30
UPC/EAN: 4047621006628
Weight:0.185 kg
Type:3RN2012-2BW30
Graduated prices net
From piecesPrice per pieces
5204,08 EUR
10199,43 EUR
15194,79 EUR
20190,14 EUR

Product information for Siemens 3RN20122BW30:

The Siemens thermistor motor protection relay type 3RN2012-2BW30 is a standard evaluation device of the SIRIUS series 3RN2, designed for protecting electric motors against overheating. It enables direct measurement of the motor winding temperature via PTC sensors, ensuring precise and reliable monitoring of the motor's thermal load. This technology also protects under critical operating conditions such as heavy start-up, braking operation, frequent switching, or insufficient cooling. As a result, preventive overdimensioning of the motor can be avoided, leading to more efficient and cost-effective system planning. The device is approved for use in gas- or dust-explosion-hazardous areas and features ATEX certification, making it suitable for applications in the chemical industry, petrochemicals, or mining.

Applications
This thermistor motor protection relay is used in industrial plants where reliable motor monitoring is required. It is particularly suitable for drives in explosion-hazardous zones, where the risk of spark generation or electrical faults must be minimized. Direct temperature measurement allows early detection of overheating risks before motor damage occurs. The devices are globally usable, as they support a wide voltage range of AC/DC 24 V to 240 V and feature internationally recognized certifications. The weather-resistant and shock-protected design also makes them suitable for outdoor use.

Functions and Equipment in Detail
The device features two changeover contacts and is equipped with a spring-cage terminal (Push-In technology), enabling quick and secure wiring. The operating voltage ranges from AC/DC 24 V to 240 V, allowing flexible integration into existing control systems. The Hand/Auto/Remote RESET option provides flexibility for fault correction and restart. Two LEDs (READY/TRIPPED) support visual fault diagnosis and indicate the operating status. Galvanic isolation between control and load circuit increases safety and prevents interference. Integrated wire break monitoring and short-circuit monitoring provide additional safety. The device is voltage failure-safe, meaning it continues to protect the motor even during brief power interruptions.

Technology Explained Simply
The operation is based on direct temperature measurement of motor windings via PTC thermistors. These resistors change their resistance depending on temperature. The relay evaluates these signals and switches off the motor when a critical temperature is reached. Since the sensors are directly installed in the windings, the actual temperature is measured, not ambient or surface temperature. No parameterization is required, as the sensors are pre-calibrated. The spring-cage terminal allows quick installation without tools, reducing installation time. Galvanic isolation protects the control electronics from interference from the load circuit.

Compatibility and Accessories
The device has a width of 22.5 mm and can be mounted on TH35 DIN rail. It is compatible with various accessories, such as removable terminals (e.g. 3ZY1122-2BA00 for Push-In technology, 3ZY1122-1BA00 for screw terminals), plug-in clips (3ZY1311-0AA00), and coding pins (3ZY1440-1AA00), which simplify installation and maintenance. Other thermistor motor protection relays from the 3RN2 series, such as 3RN2013-2GW30 or 3RN20132BW30, can be combined as needed. The uniform accessory range enables simplified inventory management and selection.

Mounting and Installation
Mounting is done on TH35 DIN rail, with the spring-cage terminal enabling quick and secure connection of wires. Installation requires no special tools, as the terminals can be operated without tools. The device should be positioned so that the connecting cables are not excessively stressed and sufficient air circulation is ensured. The PTC sensors are wired directly to the corresponding terminals on the relay. The test/RESET button is used to check functionality and to manually reset after tripping.

Advantages in Operation
Using the thermistor motor protection relay 3RN2012-2BW30 increases operational safety and extends motor lifespan. Direct temperature measurement enables precise protection independent of load or ambient temperature. ATEX certification expands the application range to hazardous zones. Integrated monitoring functions such as wire break and short-circuit monitoring increase reliability. LED indicators simplify fault diagnosis and reduce maintenance time. Global usability due to wide voltage range and international certifications makes the device a universally applicable solution.

General
Housing width22,5 mm
Connection systemspring clamp
Number of changeover contacts2
Operating voltageAC/DC 24–240 V
RESET functionHand/Auto/Remote RESET
LED indicatorsREADY/TRIPPED
Monitoring functionsWire break monitoring, short-circuit monitoring, zero-voltage safe
Technologythermistor motor protection relay with PTC sensors
Mounting methodDIN rail (top hat rail) 35 mm
Galvanic separationYes
Test/RESET buttonYes


Please note...
This article contains a copper surcharge of 2,29 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of Siemens 3RN20122BW30 thermistor motor protection relay?

The article Siemens 3RN20122BW30 thermistor motor protection relay is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RN20122BW30 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siemens 3RN20122BW30 thermistor motor protection relay always at the best possible price. We can give you a discount of 2% on Siemens 3RN20122BW30 thermistor motor protection relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Siemens 3RN20122BW30 thermistor motor protection relay we can offer you a price of 204,08 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
