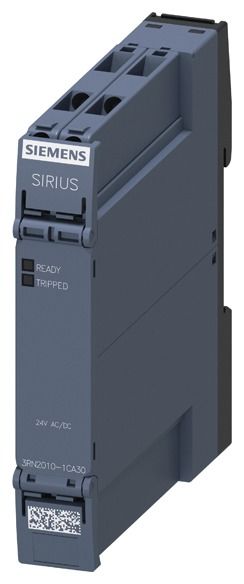

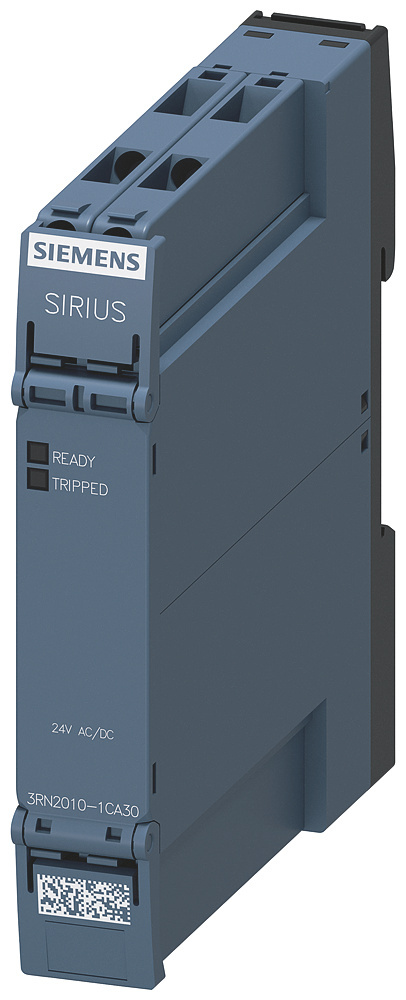

Siemens 3RN20101CA30 thermistor motor protection relay
|
105,29 EUR |
|||||||||||
|
incl. 1,15 EUR copper surcharge ( 125,30 EUR incl. VAT ) ≈ £88.13 | ≈ $115.71 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 535405 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3RN20101CA30 | ||||||||||
| UPC/EAN: | 4047621004372 | ||||||||||
| Weight: | 0.143 kg | ||||||||||
| Type: | 3RN2010-1CA30 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Siemens 3RN20101CA30:
Applications
This thermistor motor protection relay is used in industrial plants where reliable motor monitoring is required. It is particularly suitable for drives in manufacturing industry, process engineering, and plants with high demands on operational safety. The devices are globally applicable, as they feature a wide voltage range and hold international approvals. Their weather-resistant and shock-protected design also makes them suitable for locations with increased environmental requirements.
Functions and Equipment in Detail
The device features a screw connection and is designed with a width of 17.5 mm. It provides one normally open (NO) and one normally closed (NC) contact, which are galvanically isolated. The operating voltage is AC/DC 24 V. The integrated Auto-RESET function enables automatic reset after the motor has cooled down. Two LEDs (READY/TRIPPED) provide visual status indication and facilitate fault diagnosis. The devices are suitable for use with bimetal switches, requiring no additional adjustment.
Technology Explained Simply
The operation is based on direct temperature measurement of the motor windings via external sensors such as PTC sensors or bimetal switches. When the temperature exceeds a critical value, the protection contact is triggered to switch off the motor. The galvanic isolation of the contacts ensures high electrical safety. The Auto-RESET function ensures that the protection contact automatically returns to the operational state after the motor has cooled down, eliminating the need for manual reset. The LEDs indicate the operational state (READY) or the tripped state (TRIPPED), simplifying maintenance and fault finding.
Compatibility and Accessories
The thermistor motor protection relay can be combined with various accessories that facilitate installation and maintenance. These include removable terminals (e.g. 3ZY1122-2BA00 for push-in technology or 3ZY1122-1BA00 for screw terminals), plug-in clips (3ZY1311-0AA00) for mounting on TH35 DIN rail, and coding pins (3ZY1440-1AA00) for identification. The devices are part of a unified accessory system applicable to all variants of the SIRIUS 3RN2 series, simplifying inventory management and selection. Further compatibility includes thermistor motor protection relays such as 3RN20102CW30 or 3RN2010-1CW30, which can be used in similar applications.
Mounting and Installation
The device is mounted on standard TH35 DIN rail and is available for screw mounting with adapter (accessory). The screw connection technology ensures a secure and reliable connection. Installation is carried out in a 17.5 mm wide housing that fits into standard control panels. The use of removable terminals and plug-in clips simplifies installation and maintenance.
Advantages in Operation
The use of the thermistor motor protection relay 3RN2010-1CA30 provides precise and reliable motor monitoring based on direct temperature measurement. The galvanic isolation of the contacts increases safety, while the Auto-RESET function supports operational continuity. The integrated LEDs enable quick fault detection. Global usability due to wide voltage range and international approvals makes the device suitable for international projects. Uniform accessory compatibility reduces inventory costs and simplifies maintenance.
| General | |
| Degree of protection | weather-resistant, touch-safe |
| Operating voltage | AC/DC 24 V |
| Connection system | Screw connection |
| Contacts | 1 make contact (NO), 1 breaker contact (NC) |
| Reset function | Auto-RESET |
| Indication | 2 LEDs (READY/TRIPPED) |
| Housing width | 17,5 mm |
| Compatibility | bimetal switch, PTC sensor |
| Separation | Galvanic isolation |
| Accessory compatibility | removable terminals, push-in terminals, coding pins |
Questions & answers
What is the delivery time of Siemens 3RN20101CA30 thermistor motor protection relay?
The article Siemens 3RN20101CA30 thermistor motor protection relay is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RN20101CA30 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siemens 3RN20101CA30 thermistor motor protection relay always at the best possible price. We can give you a discount of 2% on Siemens 3RN20101CA30 thermistor motor protection relay if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Siemens 3RN20101CA30 thermistor motor protection relay we can offer you a price of 101,38 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
