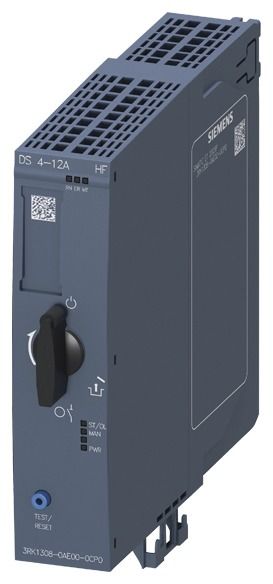

Siemens 3RK13080AE000CP0 direct starter electronic overload protection

High Feature direct starter, including fan (3RW4928-8VB00), electronic switching, electronic overload protection up to 5.5kW / 400V, setting range 4.0 .. 12A, PROFIenergy, option: 3DI/LC module direct starter SIMATIC ET 200SP for operational switching of three-phase motors, with short-circuit protection and electronic overload protection. The multifunctional motor starters are fully integrated in the ET 200SP peripheral system. Fast and extensive configuration takes place in the TIA Portal. Thanks to hybrid switching technology, the devices are extremely durable and energy efficient. The wide setting range reduces the effort required for storage and configuration with little device variation. The slim design saves space in the control cabinet. The simple installation using a wiring bus and plug-in technology enables the motor starters to be replaced quickly and increases system availability. The devices are approved worldwide (e.g. IEC, CCC and UL/CSA) and IE3/IE4 ready.Available as direct or reversing starters with various motor current ranges, optionally with safety-related shutdown, also for potentially explosive applications (ATEX).A BaseUnit is required to operate the ET 200SP motor starter. Optionally, a 3DI/LC control module can be snapped on to set up manual on-site operation with three additional digital inputs.The ET 200SP decentralized I/O system replaces the tried and tested ET 200S system.ET 200SP motor starter - Flexible. Powerful. Space-saving.
Type: 3RK1308-0AE00-0CP0
