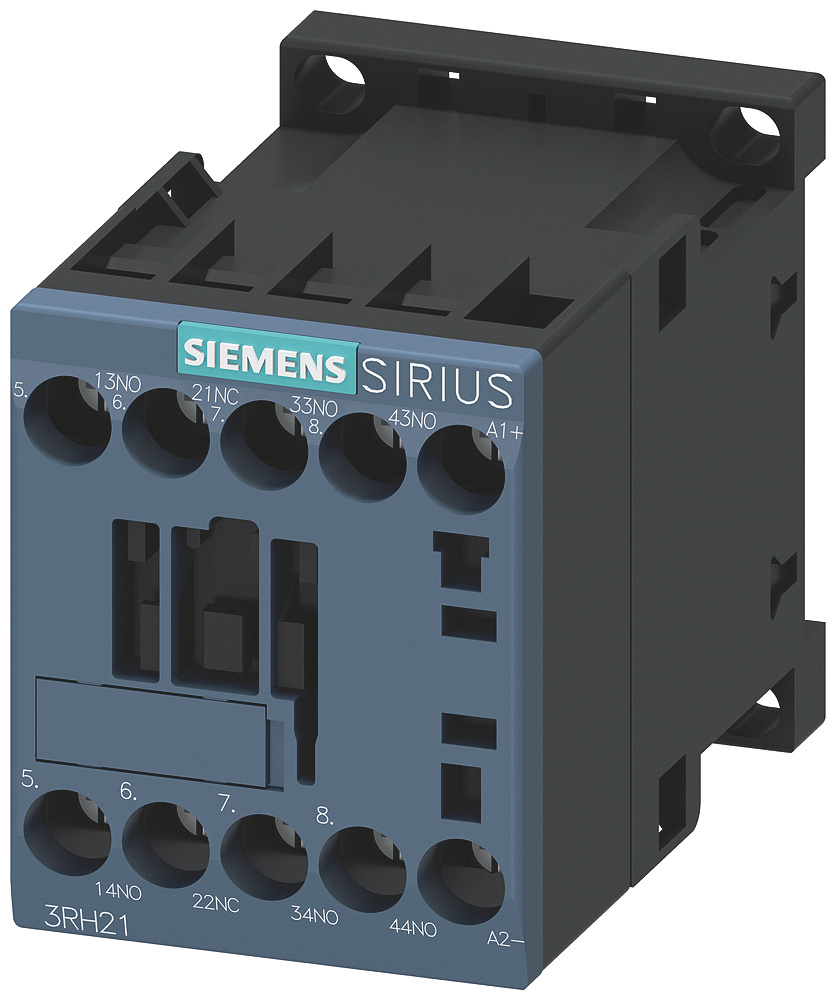

Siemens 3RH21311BB40 Auxiliary contactor 3S+1OE, DC24V 3RH2131-1BB40
|
58,24 EUR |
|||||||||||
|
incl. 1,23 EUR copper surcharge ( 69,31 EUR incl. VAT ) ≈ £48.75 | ≈ $64.01 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 387351 | ||||||||||
| Mfg Part No: | 3RH21311BB40 | ||||||||||
| UPC/EAN: | 4011209848450 | ||||||||||
| Weight: | 0.271 kg | ||||||||||
| Type: | 3RH2131-1BB40 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Siemens 3RH21311BB40:
Auxiliary contactor is the product type specifically used in control technology within industrial environments. The SIRIUS series from Siemens is known for its modular design and high reliability. The device is designed for use in control circuits, where it transmits signals from one or more inputs to multiple outputs. This is particularly useful when multiple devices or switching operations need to be synchronized without requiring additional relays or switches.
Positive mechanical interlocking is an integrated feature that ensures contacts are mechanically linked, guaranteeing secure positioning. This is especially important in safety applications, where incorrect switching positions must be prevented. The contacts are designed to be available as SUVA variants, enabling use in safety-critical installations.
Screw terminals provide a robust and simple mounting solution. The terminals are designed to ensure a secure connection even under mechanical stress. Standardized terminal markings facilitate installation and maintenance, as the wiring assignment is clear and unambiguous.
The size S00 is a compact form factor suitable for limited space requirements in enclosures or control systems. The auxiliary contactors are climate-resistant and designed for worldwide use, featuring approvals according to IEC and UL/CSA. This makes them suitable for use in various countries and regions without requiring additional adaptations or certifications.
Expandability is a key advantage: the basic version is 4-pole and can be extended up to 8 poles using snap-on auxiliary switches. This allows flexible adaptation to different requirements without replacing the entire device. Accessories for contactors 3RT2 in sizes S00 to S3 can also be used with auxiliary contactors 3RH2, ensuring high compatibility within the SIRIUS system.
The auxiliary contactors 3RH2 replace the previous series 3RH1 and are thus part of Siemens’ ongoing development process. They are available in AC or DC operation and offer both screw and spring-cage terminal technology, with model 3RH2131-1BB40 representing the screw terminal variant. High contact reliability and climate-resistant design ensure long service life and stable performance under industrial conditions.
Compatibility with accessories is provided, particularly with auxiliary switch blocks and other components of the SIRIUS series. Examples include auxiliary switch blocks such as 3RH2911-1HA10, 3RH2911-1HA11, or 3RH2911-1FA40, which extend the number of contacts. Surge limiters such as 3RT2916-1JJ00 or suppression diodes such as 3RT2916-1DG00 can also be combined to enhance protection functions. These accessories are mounted by snap-in, speeding up installation and simplifying maintenance.
Operation is performed with an operating voltage of 24 V DC. The switching function is triggered by the magnetic field of the coil system, causing the contacts to switch according to the predefined configuration (3 normally open, 1 normally closed). The output multiplication enables simultaneous activation of multiple control circuits, reducing control complexity and increasing system efficiency.
Approvals according to IEC and UL/CSA ensure compliance with international safety and quality standards. This is critical for use in various markets and for certification in safety-related installations. The climate-resistant design ensures stable performance under various environmental conditions, including temperature fluctuations and humidity.
The device is part of the SIRIUS system building kit, designed for modularity, expandability, and compatibility. This enables flexible and future-proof planning of control systems, as new components can be easily integrated without extensive modifications to existing installations.
Application areas include industrial controls, automation systems, machine building, and plant engineering. It is used wherever multiple control signals need to be processed or distributed in parallel, for example in conjunction with main contactors, drives, or safety relays. Use in safety applications is enabled by positive mechanical interlocking and availability as SUVA variants.
The expansion options via auxiliary switch blocks allow adaptation to specific requirements without replacing the base unit. This reduces costs and installation time, as only the necessary additional modules need to be added.
In summary, the Siemens auxiliary contactor 3RH2131-1BB40 offers a reliable, compact, and expandable solution for signal multiplication in control circuits. The combination of screw terminals, positive mechanical interlocking, climate-resistant design, and compatibility with the SIRIUS system makes it a flexible component for modern industrial applications. Approvals according to IEC and UL/CSA ensure worldwide use, while the modular design enables future-proof planning.
| General | |
| Actuation voltage | 24 V DC |
| Contact arrangement | 3 normally open contacts + 1 normally closed contact |
| Construction size | S00 |
| Connection system | Screw connection |
| Approvals | IEC, UL/CSA |
| Expandability | up to 8 poles via auxiliary switch blocks |
| Product series | SIRIUS 3RH2 |
| Application | Control circuit, signal multiplication |
| Compatibility | Accessories of the SIRIUS series, in particular auxiliary switch blocks 3RH2911-1HAxx, 3RH2911-1FAxx, 3RT2916-1JJ00, 3RT2916-1DG00 |
| Positive mechanical interlock | |
