Siemens 3RF24202AB45 3RF2420-2AB45 semiconductor contactor 3ph AC51 20A 48-600VDC 4-30V 2ph

Your rating:
Average rating
product review for Siemens 3RF24202AB45 3RF2420-2AB45 semiconductor contactor 3ph AC51 20A 48-600VDC 4-30V 2ph
( 5 / 5 ) 2 ratings

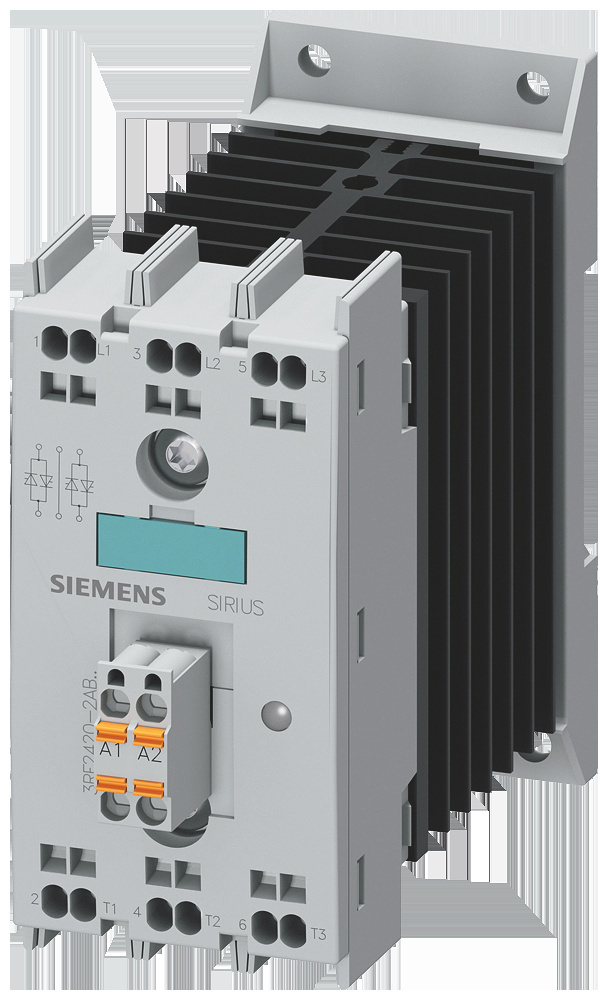

Siemens 3RF24202AB45
This image may differ from the desired article.
239,40 EUR
( 284,89 EUR incl. VAT )
≈ £200.38  |  ≈ $263.10
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: 2 pieces
1x Siemens 3RF24202AB45 3RF2420-2AB45 semiconductor contactor 3ph AC51 20A 48-600VDC 4-30V 2ph
Lieske Part No.:498318
Mfg Part No: 3RF24202AB45
UPC/EAN: 4011209647091
Weight:0.335 kg
Type:3RF2420-2AB45
Graduated prices net
From piecesPrice per pieces
5234,01 EUR
10228,63 EUR
15223,24 EUR
20217,85 EUR

Product information for Siemens 3RF24202AB45:

The Siemens semiconductor contactor 3RF2420-2AB45 belongs to the SIRIUS series and is designed as a 3-phase device for use in industrial control systems. It is used for wear-free and silent switching of resistive and inductive loads, for example, heaters or valves in filling systems. Due to its quiet operation, it is particularly suitable for noise-sensitive environments such as offices or hospitals. The devices are designed for high switching frequencies and are characterised by high reliability. The integrated heatsink allows direct mounting in the enclosure, saving space on the DIN rail. The compact design supports efficient installation in limited space.

Applications

The semiconductor contactor is intended for use in industrial systems, particularly in systems that require switching of resistive or inductive loads. Typical applications include controlling heating systems, valves, or other electrical consumers in production plants. The devices are globally approved and comply with standards such as IEC and UL/CSA, enabling safe and standard-compliant integration into various control systems. The 3-phase configuration makes them particularly suitable for larger loads.

Functions and Features in Detail

The device switches wear-free and silently, making it especially suitable for applications in sensitive environments. Operation is carried out via 2 phases, with the operating voltage ranging from 48 to 600 V AC or 4 to 30 V DC. The spring-cage terminal enables a secure and quick connection of the wires. The blocking voltage is 1200 V, ensuring electrical safety during operation. The devices are marked as end-of-life products, meaning they are no longer produced in series but are still available.

Technology Explained Simply

Semiconductor contactors are based on semiconductor technology, which replaces mechanical switching with electronic control. This eliminates moving parts that could cause wear. Switching operations occur without mechanical contact, increasing service life and minimising noise. The integrated cooling ensures the device remains thermally stable even under continuous load. The operating temperature is rated for 40 °C, ensuring safe operation in typical industrial environments.

Compatibility and Accessories

The semiconductor contactor is part of the SIRIUS system building kit and can be extended with standardised function modules 3RF29, which are mounted by simple click-on installation. These modules enhance the device's functionality for specific applications. Additional accessories include control plugs and terminal covers, which facilitate installation and maintenance. Compatible accessories include, for example, the converter 3RF2900-0EA18 for 24 V AC/DC, as well as other semiconductor contactors in the 3RF2 series.

Mounting and Installation

Mounting is carried out on the DIN rail inside the enclosure. The spring-cage terminal allows for quick and secure wire connections. The compact design reduces space requirements, enabling multiple devices to be installed in limited space. The integrated cooling allows direct installation without additional cooling measures. The devices are designed for use in industrial control systems and do not require special mounting tools.

Advantages in Operation

Operation of the semiconductor contactor is wear-free and silent, reducing maintenance requirements and increasing service life. High reliability at high switching frequencies makes it suitable for continuous applications. The integrated cooling and compact design optimise space usage in the enclosure. Global approval according to IEC and UL/CSA ensures safe and standard-compliant integration into various systems. Expandability via function modules 3RF29 offers flexibility for different application scenarios.

General
Degree of protectionIP20
Operating voltage48-600 V AC
Rated current20 A
Operation temperature40 °C
Switching typeAC51
Connection typeSpring tension
Blocking voltage1200 V
Number of phases3 phase
Control2-phase controlled


Questions & answers

What is the delivery time of Siemens 3RF24202AB45 3RF2420-2AB45 semiconductor contactor 3ph AC51 20A 48-600VDC 4-30V 2ph?

The article Siemens 3RF24202AB45 3RF2420-2AB45 semiconductor contactor 3ph AC51 20A 48-600VDC 4-30V 2ph is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RF24202AB45 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siemens 3RF24202AB45 3RF2420-2AB45 semiconductor contactor 3ph AC51 20A 48-600VDC 4-30V 2ph always at the best possible price. We can give you a discount of 2% on Siemens 3RF24202AB45 3RF2420-2AB45 semiconductor contactor 3ph AC51 20A 48-600VDC 4-30V 2ph if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Siemens 3RF24202AB45 3RF2420-2AB45 semiconductor contactor 3ph AC51 20A 48-600VDC 4-30V 2ph we can offer you a price of 234,01 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
