Siemens 3RF24201AC55 Semiconductor contactor 3RF2420-1AC55 20 A 40 °C 48–600 V/230 V AC

Your rating:
Average rating
product review for Siemens 3RF24201AC55 Semiconductor contactor 3RF2420-1AC55 20 A 40 °C 48–600 V/230 V AC
( 4.4 / 5 ) 7 ratings

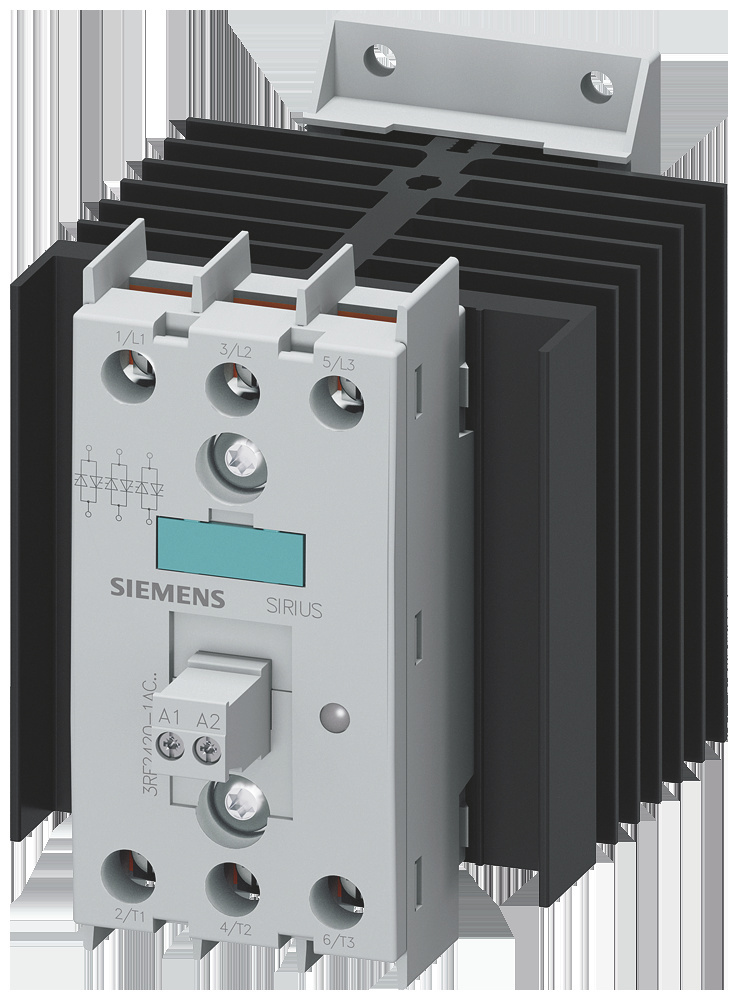

Siemens 3RF24201AC55
This image may differ from the desired article.
Siemens 3RF24201AC55Siemens 3RF24201AC55
295,20 EUR
( 351,29 EUR incl. VAT )
≈ £247.08  |  ≈ $324.42
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Siemens 3RF24201AC55 Semiconductor contactor 3RF2420-1AC55 20 A 40 °C 48–600 V/230 V AC
Datasheet:file_download Download
Lieske Part No.:450329
Mfg Part No: 3RF24201AC55
UPC/EAN: 4011209646940
Weight:0.485 kg
Type:3RF2420-1AC55
Graduated prices net
From piecesPrice per pieces
4286,34 EUR
8277,49 EUR
12268,63 EUR
16259,78 EUR

Product information for Siemens 3RF24201AC55:

The Siemens semiconductor contactor 3RF2420-1AC55 is a 3-phase switching device from the SIRIUS series, designed for use in industrial plants to control resistive and inductive loads. It is suitable for example for switching heaters or valves in filling systems. The device operates wear-free and silently, making it particularly suitable for noise-sensitive environments such as offices or hospitals. Due to its high switching frequency resistance, it is also reliably usable in applications with frequent switching operations.

Applications

The semiconductor contactor is used in industrial electrical engineering where a reliable and disturbance-free switching function is required. It is intended for operation in enclosures, with the integrated heatsink enabling direct mounting without additional cooling measures. The compact design ensures efficient space utilisation on the DIN rail, which is advantageous in narrow enclosures. The devices are globally approved, including according to IEC and UL/CSA standards, ensuring international usability.

Functions and equipment in detail

The device switches loads in the range of 48 to 600 V AC at a rated operating voltage of 230 V AC. The nominal current is 20 A, and the maximum operating temperature is 40 °C. The switching function is 3-phase and designed for AC loads. The blocking voltage is 1200 V, ensuring high insulation strength and safety during switching. The connection type is screw connection, enabling a secure and mechanically stable connection.

Technology explained simply

As a semiconductor contactor, the device is based on semiconductor technology, which does not use any moving mechanical contacts. This eliminates wear and noise during switching. The switching function is electronic, enabling high switching speed and reliability even at high switching frequencies. The integrated cooling allows direct mounting in the enclosure without additional cooling measures. The devices are part of the SIRIUS system building kit, which enables modular expansion.

Compatibility and accessories

The semiconductor contactor can be expanded with function modules from the 3RF29 series, which are simply clipped onto the device. These modules extend functionality for specific applications. As accessories, control plugs and terminal covers are also available, facilitating installation and maintenance. The devices are available in various versions, including 1-phase and 3-phase variants, as well as different control voltages for AC or DC operation. Connection types include screw, spring clamp, and ring terminal connections.

Mounting and installation

Mounting is done on the DIN rail in the enclosure. The integrated heatsink allows direct installation without additional cooling. The screw connection terminals enable a secure and mechanically stable connection of the cables. The devices are designed for use in industrial environments and do not require special mounting tools.

Advantages in operation

The wear-free and silent switching function ensures long service life and low maintenance. The high reliability at high switching frequencies makes the device suitable for demanding applications. The integrated cooling and compact design optimise space requirements in the enclosure. Modular expandability via function modules offers flexibility for different application scenarios. Global approval according to IEC and UL/CSA enables use in various markets.

General
Degree of protectionIP20
Rated current20 A
Operating voltage230 V AC
Operating voltage range48-600 V AC
Blocking voltage1200 V
Maximum operating temperature40 °C
Switching type3-phase
Connection typeScrew connection
Switching functionSemiconductor contactor
ApprovalsIEC, UL/CSA


Product data sheet
Datasheet for Siemens 3RF24201AC55, EAN: 4011209646940

Questions & answers

What is the delivery time of Siemens 3RF24201AC55 Semiconductor contactor 3RF2420-1AC55 20 A 40 °C 48–600 V/230 V AC?

The article Siemens 3RF24201AC55 Semiconductor contactor 3RF2420-1AC55 20 A 40 °C 48–600 V/230 V AC is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RF24201AC55 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siemens 3RF24201AC55 Semiconductor contactor 3RF2420-1AC55 20 A 40 °C 48–600 V/230 V AC always at the best possible price. We can give you a discount of 2% on Siemens 3RF24201AC55 Semiconductor contactor 3RF2420-1AC55 20 A 40 °C 48–600 V/230 V AC if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Siemens 3RF24201AC55 Semiconductor contactor 3RF2420-1AC55 20 A 40 °C 48–600 V/230 V AC we can offer you a price of 286,34 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
