Electrics ➤ Industrial Material ➤ Industrial relays and contactors ➤ Contactors ➤ Siemens 3RA24458XF321AL2 star-delta combination AC-3
Siemens Logo

Siemens 3RA24458XF321AL2 star-delta combination AC-3

Your rating:
Average rating
Rating for Siemens 3RA24458XF321AL2 star-delta combination AC-3
( 4.7 / 5 ) 7 ratings

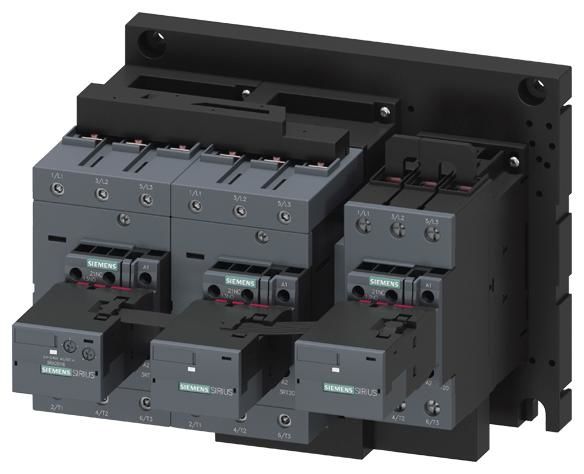

Siemens 3RA24458XF321AL2
This image may differ from the desired article.
1.492,22 EUR
( 1.775,74 EUR incl. VAT )
plus delivery charges
2025-09-18Delivery time on requestinfo_outline
1x Siemens 3RA24458XF321AL2 star-delta combination AC-3
Printing view Bookmark Wholesale Inquiry Suggest price
Lieske Part No.:1597025
Mfg Part No: 3RA24458XF321AL2
UPC/EAN: 4047621031217
Weight:5.51 kg
Further Contactors from SiemensFurther products in category Contactors All products of Siemens

Product information for Siemens 3RA24458XF321AL2:

Star-delta combination AC-3, 75 kW/400 V AC 230 V, 50/60 Hz size S3, screw connection, electrical and mechanical interlock 3NO+3NC star-delta combination SIRIUS 3RA24 for gentle starting of three-phase asynchronous motors.The star-delta combination 3RA24 is a tested and factory-preassembled combination of three 3RT2 contactors that are already fully wired and mechanically and electrically interlocked. The function module with integrated control logic and time setting that is also included replaces the entire wiring in the control circuit. They are climate-resistant, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4 ready.The star-delta combinations 3RA24 are available with AC and DC operation in sizes S00 to S3. They are available with screw and spring-loaded connection technology for mounting on a standard rail or screw fastening. Variants for connection to IO-Link or AS-Interface are also available.The accessories for the 3RT2 contactors are standardized for all sizes and can also be used for the contactor combinations.The 3RA24 star-delta combinations replace the proven 3RA14 series.Simple, efficient, always up-to-date - the SIRIUS modular system.
Type: 3RA2445-8XF32-1AL2


Questions & answers

What is the delivery time of Siemens 3RA24458XF321AL2 star-delta combination AC-3?

The article Siemens 3RA24458XF321AL2 star-delta combination AC-3 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RA24458XF321AL2 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siemens 3RA24458XF321AL2 star-delta combination AC-3 always at the best possible price. We can give you a discount of 2% on Siemens 3RA24458XF321AL2 star-delta combination AC-3 if you choose payment in advance on ordering.

You can also send us a price proposal for your desired quantity of Siemens 3RA24458XF321AL2 star-delta combination AC-3 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
