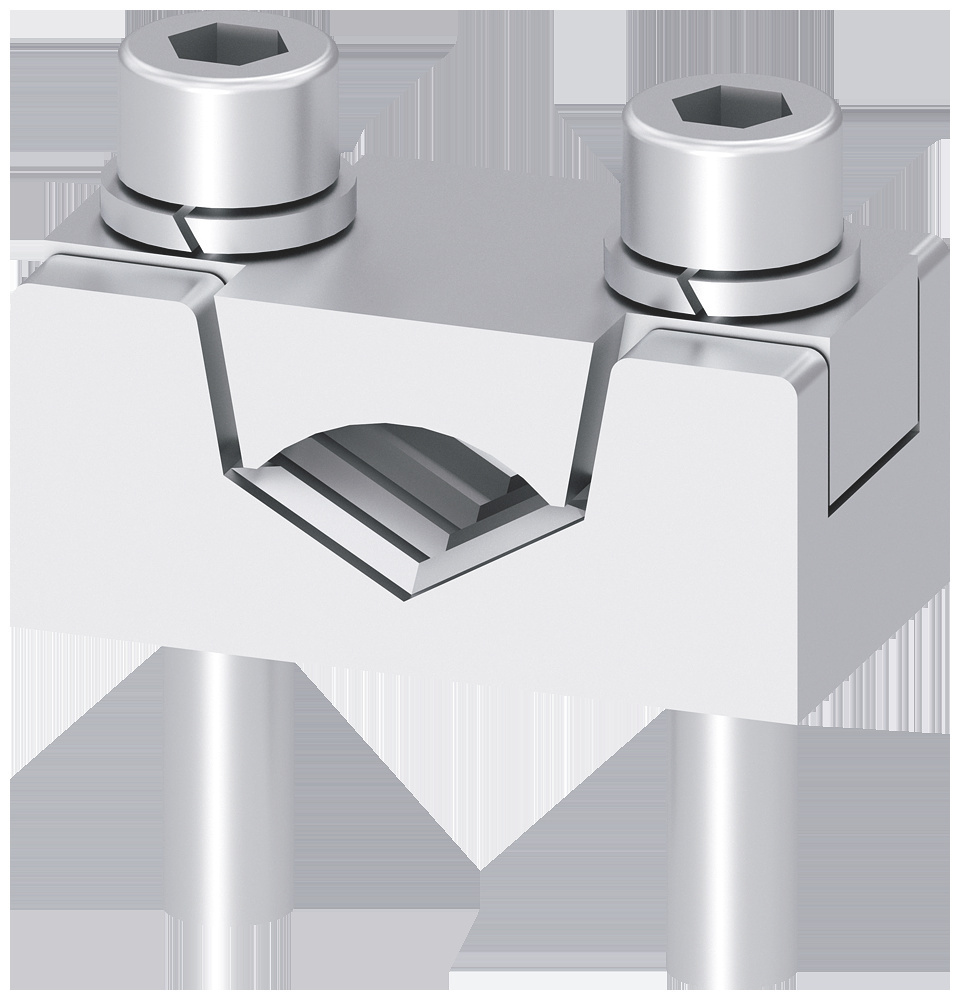

Siemens 3NP19411BB10 3NP1941-1BB10 prism terminal 70–150 mm² for NH1 1-pole with flat connection
|
17,31 EUR 17,33 EUR |
|||||||||||
|
( 20,60 EUR incl. VAT ) ≈ £14.49 | ≈ $19.02 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 701248 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3NP19411BB10 | ||||||||||
| UPC/EAN: | 4001869567341 | ||||||||||
| Weight: | 0.106 kg | ||||||||||
| Type: | 3NP1941-1BB10 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Siemens 3NP19411BB10:
Applications
The terminal block is designed for use in electrical installations that require high safety standards for personnel and equipment protection. It is used in industrial environments such as production facilities, power supply systems, or infrastructure (e.g. transport operations, building automation). The terminal is suitable for installations requiring flexible and secure wiring, especially when cable exits are needed at the top or bottom. Use in busbar systems of type 8US is also intended.
Functions and Equipment in Detail
The terminal features a flat connection, enabling direct and stable connection with flat cables or conductors. The design is rated for a cross-section range of 70 to 150 mm², making it suitable for medium- to high-performance applications. The prism shape of the terminal ensures even distribution of contact force and minimizes the risk of contact overheating. The terminal is designed as a single unit and serves as a replacement or supplementary component for existing 3NP1 switches.
Technology Explained Simply
The prism terminal is a mechanical connection element that establishes the electrical connection between the switch disconnector and the connected cable. The flat connection design allows for easy and secure installation, especially with cables having a flat cross-section. The terminal is designed for use in switchgear requiring high mechanical and thermal load capacity. The use of terminals with flat connections is common in installations where a compact and robust connection is required. The terminal is not designed for direct connection to a DIN rail, but serves as a connection component on the switch itself.
Compatibility and Accessories
The terminal is specifically developed for fuse switch disconnectors of size NH1 from the SENTRON series 3NP1 by Siemens. It is compatible with switches of size NH1 and can be used as a replacement or supplementary component. The terminal is part of a comprehensive accessory range that enables modular expansion of the 3NP1 switches. Use in combination with other accessories, such as switching indicator or monitoring units, is possible, provided these are designed for size NH1.
Mounting and Installation
Mounting of the prism terminal is done directly onto the switch disconnector. The terminal is inserted into the designated connection area and connected to the switch. Wiring is done via the flat connection, with the cable having the specified cross-section (70–150 mm²) being connected. Installation requires no additional tools, with mechanical strength ensured by the terminal's design. The terminal is designed for simple and secure mounting, especially when integrating into existing switchgear.
Operational Advantages
The prism terminal provides a reliable and stable electrical connection that remains durable under high thermal and mechanical loads. The flat connection design enables compact and secure wiring, reducing installation time. The terminal is part of a modular system that allows flexible adaptation to different requirements. Use in combination with the 3NP1 fuse switch disconnectors ensures high safety, particularly through integrated shock protection, which protects during installation against unintended contact with live parts. The terminal is designed for use in installations requiring high availability and reliability.
Protection Rating and Environmental Conditions
The terminal itself is not assigned a protection rating, as it is mounted as an integrated accessory on the switch disconnector. The IP40 protection rating, which applies to the entire switch unit, also covers mounted accessories such as the prism terminal. Therefore, the terminal is suitable for indoor use where there is no direct contact with water or dust. Environmental conditions such as temperature and humidity are defined by the switch unit and comply with standards for industrial installations.
Accessories and Alternatives
The terminal is available as a replacement or supplementary component for 3NP1 switches. No specific alternatives exist within the series, as the terminal was specifically developed for size NH1. Use of other terminals is not intended, as the mechanical fit and electrical requirements are specifically designed for size NH1. The terminal is not suitable for other switch types or sizes.
Compatibility with Switches
The terminal is exclusively suitable for fuse switch disconnectors of size NH1 from the SENTRON series 3NP1 by Siemens. Compatibility is ensured by the mechanical fit and electrical requirements. The terminal can be used as a replacement or supplementary component to optimize wiring on existing switches. Use in combination with other accessories, such as switching indicator or monitoring units, is possible, provided these are designed for size NH1.
| General | |
| Conductor cross section | 70-150 mm² |
| Number of poles | 1 |
| Connection type | flat connection |
| Construction size | NH1 |
| Accessory for | Fuses and disconnect switch 3NP1 |
| Degree of protection | IP40 |
| Manufacturer | Siemens |
| Product series | SENTRON 3NP1 |
