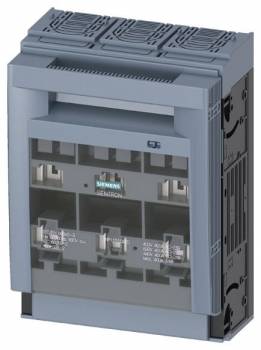

Siemens 3NP11531DA20 3NP1153-1DA20 fuse switch disconnector NH2 400 A mounting plate
|
269,41 EUR |
|||||||||||
|
incl. 5,56 EUR copper surcharge ( 320,60 EUR incl. VAT ) ≈ £225.50 | ≈ $296.08 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 646866 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3NP11531DA20 | ||||||||||
| UPC/EAN: | 4011209765535 | ||||||||||
| Weight: | 4.401 kg | ||||||||||
| Type: | 3NP1153-1DA20 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Siemens 3NP11531DA20:
Applications
The fuse switch disconnector 3NP1153-1DA20 is suitable for cross-industry use in industrial and infrastructure installations. It serves as a protective switch for electrical systems, particularly in environments where safe disconnection of the circuit is required. The size NH2 allows use in medium to high power requirements. The protection rating IP40 ensures protection against contact with live parts and against solid objects, but not against water. The application is for indoor use, as the protection rating IP40 does not provide weather protection.
Functions and Equipment in Detail
The switch features an integrated standard grip and shock protection, ensuring that the user cannot touch live parts during installation on busbar systems, even when accessing from the rear. This increases safety during installation and maintenance. Large viewing windows allow easy visual inspection of installed NH fuses. The electronic fuse monitoring function enables optional network monitoring, allowing continuous monitoring of the fuse’s operation. The switching points of the auxiliary switch are flexibly adjustable, allowing both simultaneous and leading switching operations.
Technology Explained Simply
The fuse switch disconnector combines the functions of a switch disconnector with the protective function of an NH fuse. The NH fuse provides protection against overload and short circuit, while the switch disconnector enables safe disconnection of the circuit. The integrated electronic monitoring detects the fuse’s condition and can trigger a signal in case of defect or failure. The frame terminal enables a secure and reliable connection of the conductors. The cover depth of 70 mm is designed for mounting on standard mounting plates.
Compatibility and Accessories
The switch is compatible with various accessories intended to extend its functionality. These include, for example, NH fuse inserts in different rated currents (e.g. 224 A, 250 A, 300 A, 315 A) and protection types (gL/gG), available in handle holders with insulated or live versions. Additional components include handle inserts with electronic fuse monitoring (EFM15), cable connection covers, auxiliary switches (1 changeover contact) and panel overlays for system panels. The use of these accessories extends the functionality and adaptability of the switch.
Mounting and Installation
The fuse switch disconnector is designed for mounting on mounting plates and can also be used on DIN rail or for floor mounting. Installation is carried out via the frame terminal, ensuring a secure connection of the conductors. The cover depth of 70 mm allows standardised mounting. The construction allows for quick and secure reconfiguration of the cable exit from top to bottom or vice versa. The integrated fuse switching enables safe disconnection of the circuit, allowing maintenance or inspection under voltage safety.
Advantages in Operation
The switch offers high operational safety due to the integrated shock protection and electronic monitoring. The modular design enables flexible adaptation to different requirements. The ability to flexibly switch the auxiliary switch expands its applications in complex control systems. Compatibility with various accessories and fuse inserts increases the flexibility and reusability of the device. The protection rating IP40 ensures sufficient protection for indoor use.
| General | |
| Manufacturer | Siemens |
| Product type | Fuse switch disconnector |
| Poles | 3 |
| Construction size | NH2 |
| Nominal current | 400 A |
| Degree of protection | IP40 |
| Mounting method | assembly and mounting on mounting plate |
| Connection type | Frame clamp |
| Cover level | 70 mm |
| Monitoring function | electronic fuse monitoring |
| Accessory compatibility | NH fuse inserts, handle inserts, auxiliary switches, cable connection cover, panel mounting |
| Switching point auxiliary switch | flexible (simultaneous or leading) |
| Cable grip and touch protection | included as standard |
| Cable exit | top/bottom, convertible |
| Application range | industry, infrastructure |
| Connection option | DIN rail, floor mounting, mounting plate |
| Viewing window | |
