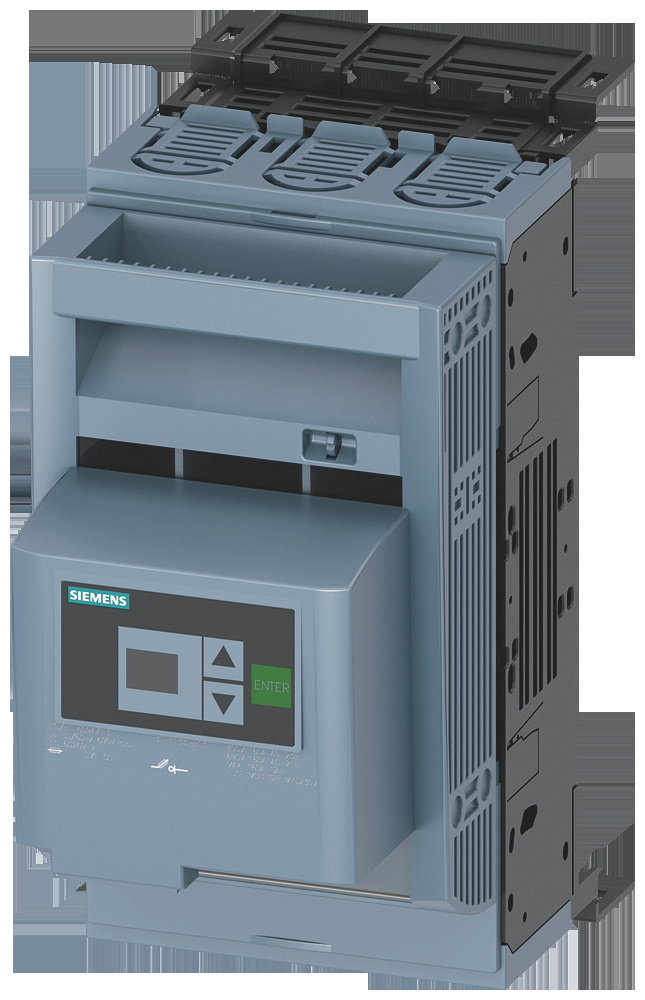

Siemens 3NP11331BB13 3NP1133-1BB13 SENTRON fuse switch disconnector 3-pole NH00 160A
|
299,35 EUR |
|||||||||||
|
incl. 6,18 EUR copper surcharge ( 356,23 EUR incl. VAT ) ≈ £250.56 | ≈ $328.99 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 127905 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3NP11331BB13 | ||||||||||
| UPC/EAN: | 4011209700383 | ||||||||||
| Weight: | 1.394 kg | ||||||||||
| Type: | 3NP1133-1BB13 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Siemens 3NP11331BB13:
Applications
The fuse switch disconnector 3NP1133-1BB13 is designed for use in industrial and infrastructure installations where reliable protection against electrical faults is required. It is suitable for applications with high safety requirements and is frequently used in production facilities, power supply systems, or for the distribution of electrical energy. Its use in the busbar system 8US makes it particularly suitable for modular and expandable distribution systems.
Functions and Equipment in Detail
A central feature of the switch is the standard-integrated encircling and shock protection, which prevents the user from touching live parts even when accessing from the rear. This increases safety during installation and maintenance. The large viewing windows allow for easy visual inspection of the installed fuses. The 3NP1 switch series is modular in design, enabling flexible adaptation to different requirements. The switching points of the auxiliary switch can be flexibly adjusted, allowing both simultaneous and leading switching operations. Additionally, the switch can be locked and sealed to prevent unauthorized access.
Technology Explained Simply
The electronic fuse monitoring EFM20 monitors the condition of the installed fuse and signals any defect or failure. Network monitoring is optionally available and extends the functionality. The switch is designed for use in a busbar system, where the flat connection design allows direct mounting onto the rail. The cover height of 32/70 mm ensures optimal fit and facilitates integration into existing systems. The protection rating IP40 protects against contact with solid objects larger than 1 mm and against splashing water, making it suitable for indoor use.
Compatibility and Accessories
The switch is compatible with the Siemens busbar system 8US and can be mounted on DIN rail or for floor mounting. Suitable accessories include handle inserts such as the 3NP1933-1GB50 with EFM25 or the 3NP1933-1GB20 with EFM10, encircling protection for busbars (3NP1933-1CA10), cable connection covers (3NP1933-1CC00), auxiliary switches (3NP1930-1FA00), and mounting kits for DIN rails (3NP1933-1EB00). Additional components such as NH fuses in various versions (e.g. 3NA38307, 3NA6832-4) can be combined to complete the switch's functionality.
Installation and Mounting
Installation is carried out on the busbar system 8US with a width of 40 mm. The flat connection allows direct connection without additional adapters. The modular design and flexible connection options (top/bottom) simplify installation. The integrated safety features ensure that installation can be safely performed even with rear access. The switch series is designed for indoor use, with the protection rating IP40 meeting environmental requirements.
Advantages in Operation
The fuse switch disconnector 3NP1133-1BB13 offers high operational safety through integrated electronic monitoring and shock protection. The modular design enables flexible adaptation to different requirements. Visual inspection of fuses via viewing windows reduces maintenance time. The ability to lock and seal the switch increases security against unauthorized access. Compatibility with the busbar system 8US and modular accessory design facilitate integration into existing systems.
| General | |
| Manufacturer | Siemens |
| Product type | Fuse switch disconnector |
| Number of poles | 3 |
| Construction size | NH00 |
| Nominal current | 160 A |
| Busbar system | 8US |
| Rail width | 40 mm |
| Connection type | flat connection |
| Fuse monitoring | electronic EFM20 |
| Cover level | 32/70 mm |
| Degree of protection | IP40 |
| Application range | industry, infrastructure |
| Mounting method | Busbar system, top rail, floor mounting |
| Auxiliary switch | flexible switching points |
| End function | |
| Sealable | |
