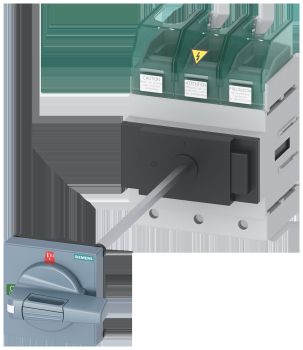

Siemens 3LD58100TK11 3LD5810-0TK11 SENTRON, switch disconnector 3LD5 UL, main switch
|
471,20 EUR 491,04 EUR |
|||||||||||
|
( 560,73 EUR incl. VAT ) ≈ £400.52 | ≈ $529.16 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 667565 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3LD58100TK11 | ||||||||||
| UPC/EAN: | 4001869575605 | ||||||||||
| Weight: | 2.2 kg | ||||||||||
| Type: | 3LD5810-0TK11 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Cam switch / power switch from SiemensFurther products in category Cam switch / power switch
All products of Siemens
Product information for Siemens 3LD58100TK11:
SENTRON, load disconnector 3LD5 UL, main switch, 3-pole, approved according to UL489, UL60947-4-1 and IEC60947-3, UL: 150A, SCCR 50kA at 480VAC, operating power @ 480VAC 3-phase: 100hp, IEC: 160A, operating power at AC-23A at 400V: 75kW, floor mounting with door coupling, overridable rotary drive, standard, 4-hole mounting of the handle, without tolerance compensation, including terminal covers for the feed-in side Main and EMERGENCY-STOP switches SENTRON 3LD5 for the safe switching off of loads in many areas of industrial machinery on the US market. Modular design, quick and easy installation of auxiliary switches, N-PE terminal or 4th pole. Optimum mains isolation from 16 A to 160 A thanks to the rotary drive being lockable. Versatile thanks to international approvals. Certification according to UL489 makes it ideal for export to NAFTA countries. The wide range of accessories makes the 3LD5 particularly suitable as a main isolating switch. It can also be used as a manual motor control because it is also certified according to UL60947-4-1.The 3LD main and EMERGENCY STOP switches are available in a wide range of versions for front mounting, mounting plate, top hat rail or distribution board installation, optionally with direct or door coupling rotary drive. Versions for direct current applications are also available for 3LD2.3LD main and EMERGENCY STOP switches - consistent safety for users and systems.
Questions & answers
What is the delivery time of Siemens 3LD58100TK11 3LD5810-0TK11 SENTRON, switch disconnector 3LD5 UL, main switch?
The article Siemens 3LD58100TK11 3LD5810-0TK11 SENTRON, switch disconnector 3LD5 UL, main switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3LD58100TK11 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siemens 3LD58100TK11 3LD5810-0TK11 SENTRON, switch disconnector 3LD5 UL, main switch always at the best possible price. We can give you a discount of 2% on Siemens 3LD58100TK11 3LD5810-0TK11 SENTRON, switch disconnector 3LD5 UL, main switch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Siemens 3LD58100TK11 3LD5810-0TK11 SENTRON, switch disconnector 3LD5 UL, main switch we can offer you a price of 446,46 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
