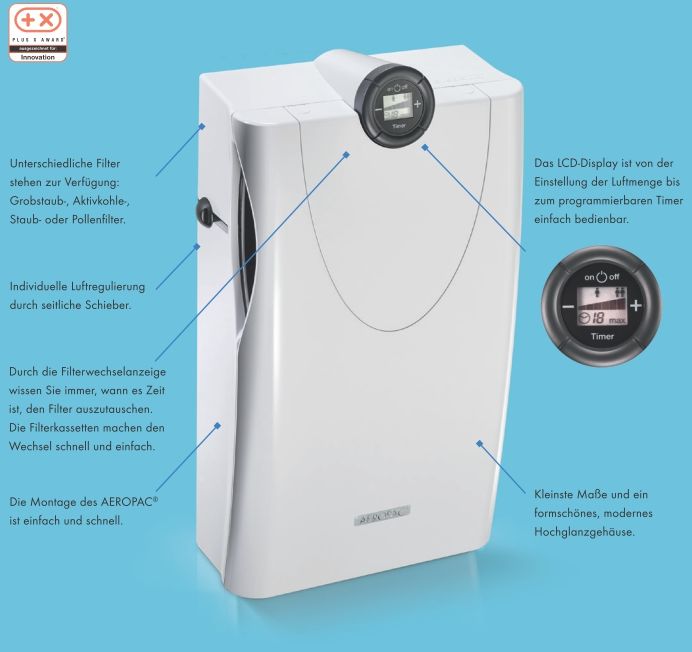

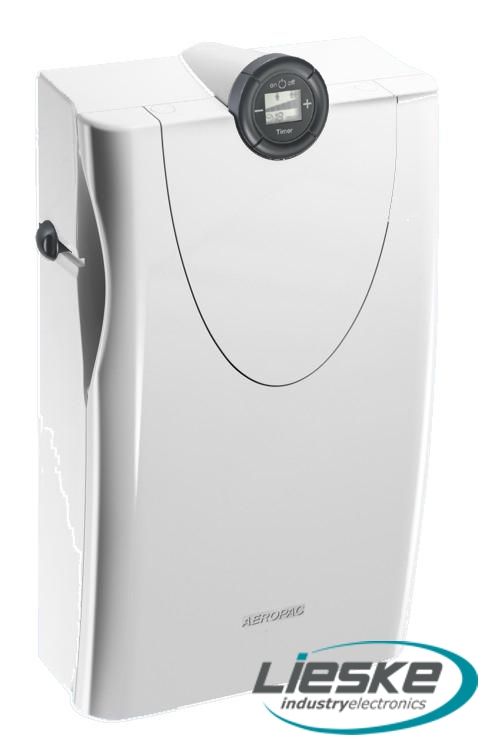

Siegenia-Aubi AEROPAC ® SN sound absorbing wall ventilator

Single room air ventilation unit with standard G3 filter preferably for aerating living and sleeping areas.
Side air outlet left and right to avoid drafts, equipped with two separate manually operated flaps. The air may be fed separately to the right or left in the chamber through both openings.
Easy to remove the filter cartridge by opening cover / replace standard G3 filter is cleaned. Life of the filter with proper use of

5 years.

Optional filter class F5 (fine or pollen filter) and activated carbon available.

Air capacity up to 7 levels selectable. 180 m3 / h

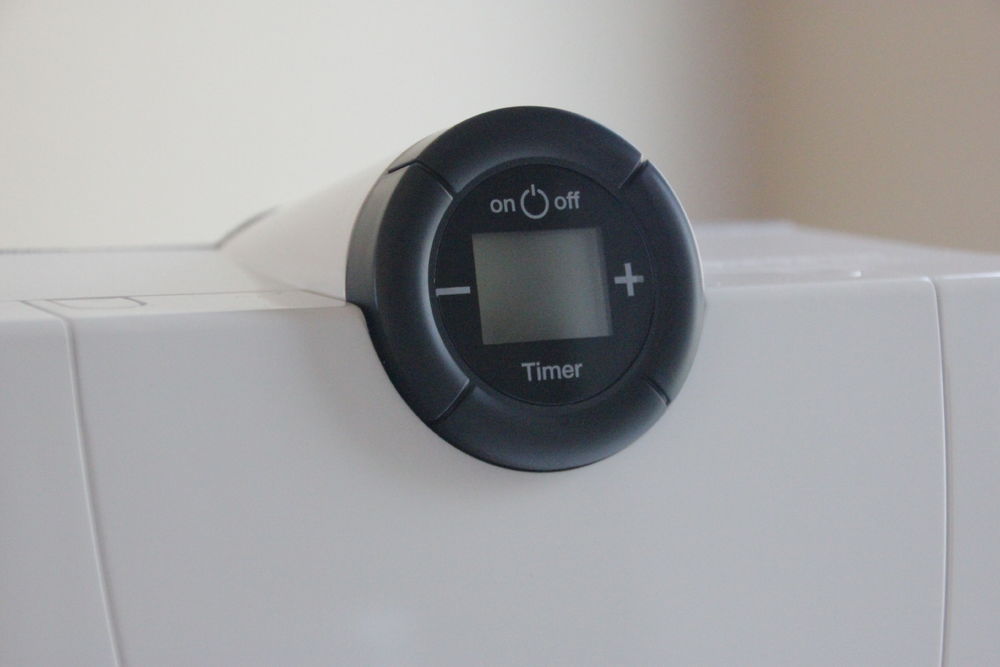

Temporarily illuminated control display:

• Display the amount of air in the bar chart
• Personal display and power level
• Built-in automatic timer (adjustable by user)
• Filter change indicator
• Concealed operating hours counter

Weatherproof plastic without additional mechanical fastening and fitted with exterior paint painted over.

The following specifications apply when using the standard filter G3, weather protection and 80 mm pipe diameter:
Level difference: Dn, e, w = 50 dB
Inherent noise: LPA = about 24 dB (A) at 60 m3 / h (A0 = 10 m2)
Power: P = 2 - 5 W to 60 m3 / h
Electrical connection: 230 V / 50 Hz, 0.14 amps
Protection class: II, double insulation
Degree of protection: IP 40
Housing and front panel made easily cleanable plastic ASA class B2, interchangeable faceplate.
Maximum allowed dimensions (W x H x D): 270 mm x 467 mm x 132 mm.
Backplane connector largely compatible with previous generation of fans.
Variable cable length centimeter through integrated cable tray max. Length: 4.5 m.
Housing finish: high gloss

Housing colors:
alpine white, similar to RAL 9003 or jet black similar to RAL 9005

Color front panel:
alpine white, similar to RAL 9003 or jet black similar to RAL 9005

7039 optional front bezel is also available in beige or gray, similar to RAL 7006 Quartz gray RAL.

(Color surcharge 19,50 EUR)

Thermal protection circuit
CE mark
GS Mark
VDE approval

Building approval (currently valid approval number shall be mentioned in the offer).
Product warranty: 5 years
Design Innovation Award PlusX

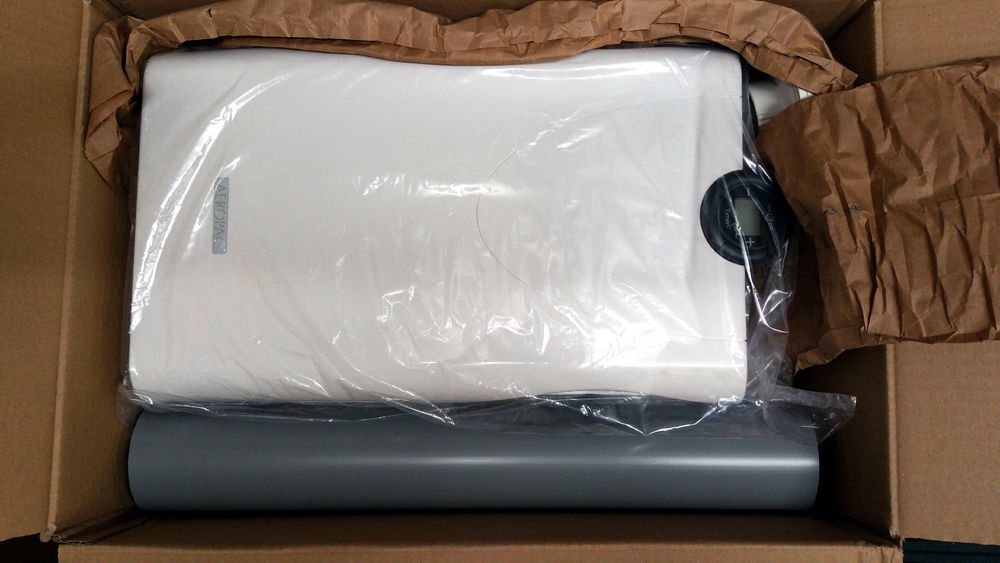

Supplied with 80 mm pipe penetration, weatherproof plastic, drilling template and Bedienungs-/Montageanleitung.

If you want the device in a different color variant as alpine white, then please indicate this in your order / request.

Part numbers for ordering:
AEROPAC front panel, similar to RAL 9003 alpine white * L5460260-004010
AEROPAC front panel, similar to RAL 9005 black * L5460260-023010
AEROPAC front panel, similar to RAL 7006 Beige Gray * L5460260-0I5010
AEROPAC front panel, quartz gray, similar to RAL 7039 * L5460260-0I3010
Dust filter G3 AEROPAC (for coarse dust) black L5460270-097010
Dust filter F5 AEROPAC (for pollen / matter) knows L5460280-096010
Activated carbon filter AEROPAC (eg for exhaust odors) black L5460290-099010
PVC pipe, NW 75, outer diameter 80 mm, length 500 mm gray 135600
Weatherproof F. NW75, similar. RAL 9010 white 158289
Weatherproof F. NW75, similar. RAL 8019 Brown 158296
Button on the remote control for wave radio wave white AEROPAC L5460380-096010

* = Gloss
Type: Wandlüfter mit Schalldämmung
