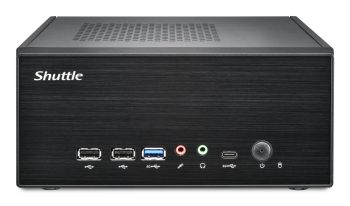

SHUTTLE Barebone XPC slim XB860G2 LGA1851 2xSODIMM DDR4 3xM.2 2xSATA
|
327,19 EUR |
|
|
( 389,36 EUR incl. VAT ) ≈ £276.48 | ≈ $365.80 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 860243 |
| Mfg Part No: | XB860G2 |
| UPC/EAN: | 0887993008134 |
| Weight: | 3.66 kg |
| Type: | BARE |
Product information for Shuttle XB860G2:
| Audio | |
| Built-in speaker(s) | |
| Design | |
| Chassis type | 3.5L sized PC |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power |
| Cable lock slot type | Kensington |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | PC barebone |
| Cable lock slot | |
| VESA mounting | |
| Graphics | |
| On-board graphics card | |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| Internal memory installed | |
| Non-ECC | |
| Network | |
| LAN controller | Intel I226-LM, Intel® I219-LM |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Power cord included | |
| AC adapter included | |
| Quick start guide | |
| Drivers included | |
| Performance | |
| Motherboard form factor | mini ITX |
| Motherboard chipset | Intel B860 |
| Processor socket | LGA 1851 (Socket V1) |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Trusted Platform Module (TPM) | |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0/2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Microphone in | |
| DC-in jack | |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 180 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 9.23 A |
| Processor | |
| Built-in processor | |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express |
| Number of storage drives supported | 3 |
| Storage drives installed | |
| NVMe | |
| Sustainability | |
| Sustainability certificates | ErP, ENERGY STAR |
| Technical details | |
| Compliance certificates | UKCA, CE, Federal Communications Commission (FCC), BSMI, RCM, VCCI, RoHS |
| Weight & dimensions | |
| Width | 238 mm |
| Depth | 200 mm |
| Height | 72.5 mm |
| Weight | 1.9 kg |
| Package weight | 3.2 kg |
