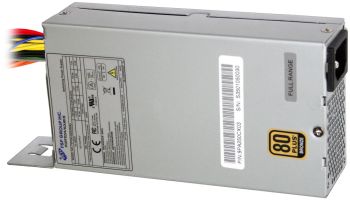

Shuttle PC45G ATX12V Power Supply - 85% Efficiency - 250 W - 120 V AC, 230 V AC Input Voltage
|
61,49 EUR |
|
|
( 73,18 EUR incl. VAT ) ≈ £52.27 | ≈ $69.06 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 815327 |
|---|---|
| Mfg Part No: | PC45G |
| UPC/EAN: | 4046047102860 |
| Weight: | 0.78 kg |
| Type: | ACCS |
Product information for Shuttle PC45G:
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, CB, WEEE, ErP |
| Design | |
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Country of origin | China |
| Other features | |
| Rise time | 20 ms |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | Flex ATX |
| Compatible products | Shuttle XPC G, G2, G5, G6, ST61G4 |
| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| ATX Power connector (24-pin) | |
| Power | |
| Total power | 250 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 - 1.5 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 216 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 17 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
| Hold time | 17 ms |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage, Overheating |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 150 mm |
| Height | 40 mm |
Questions & answers
What is the delivery time of Shuttle PC45G ATX12V Power Supply - 85% Efficiency - 250 W - 120 V AC, 230 V AC Input Voltage?
The article Shuttle PC45G ATX12V Power Supply - 85% Efficiency - 250 W - 120 V AC, 230 V AC Input Voltage is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Shuttle PC45G to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Shuttle PC45G ATX12V Power Supply - 85% Efficiency - 250 W - 120 V AC, 230 V AC Input Voltage always at the best possible price. We can give you a discount of 2% on Shuttle PC45G ATX12V Power Supply - 85% Efficiency - 250 W - 120 V AC, 230 V AC Input Voltage if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
