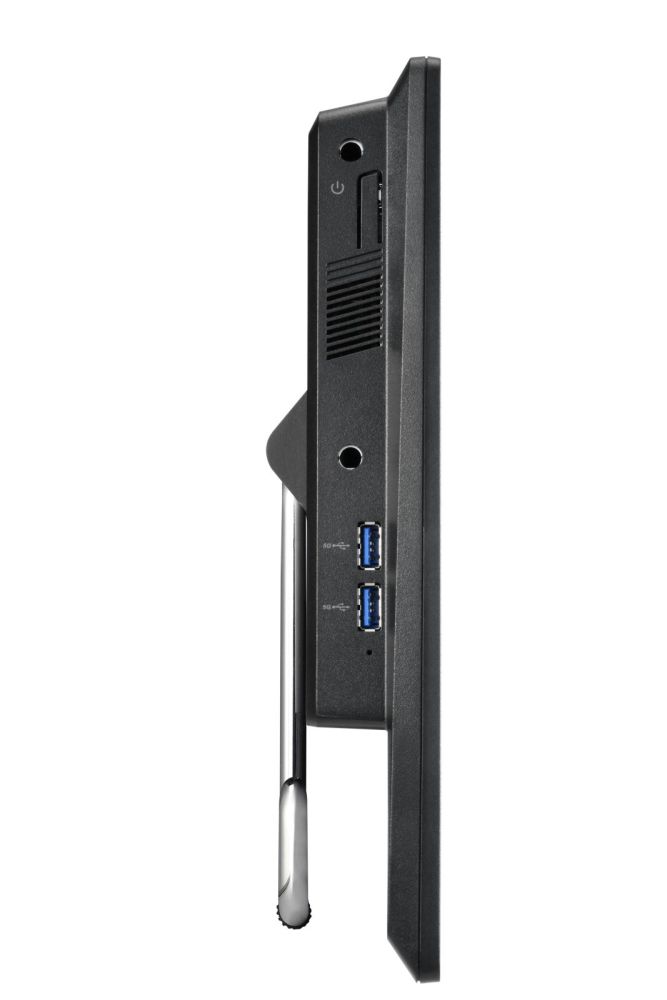

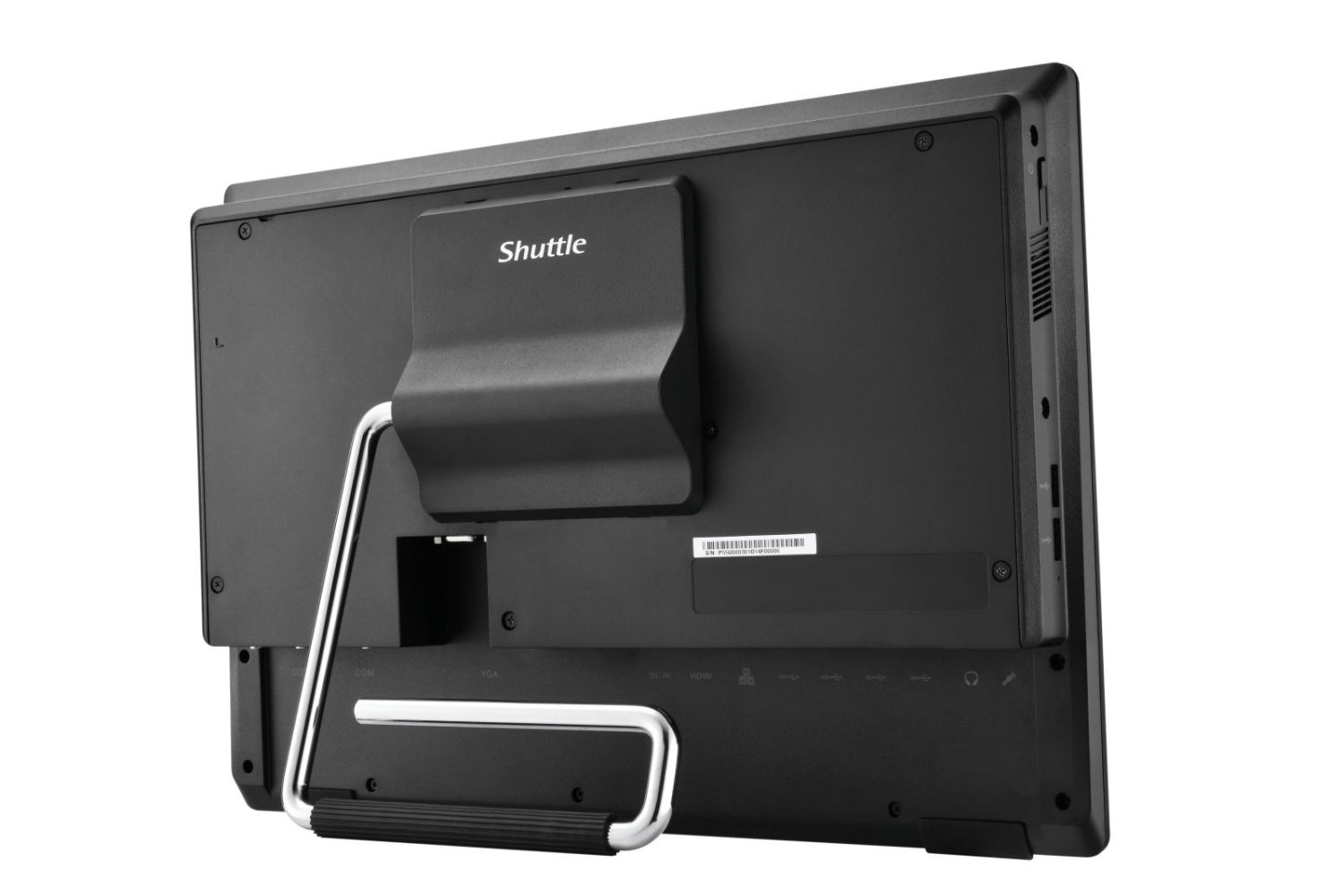

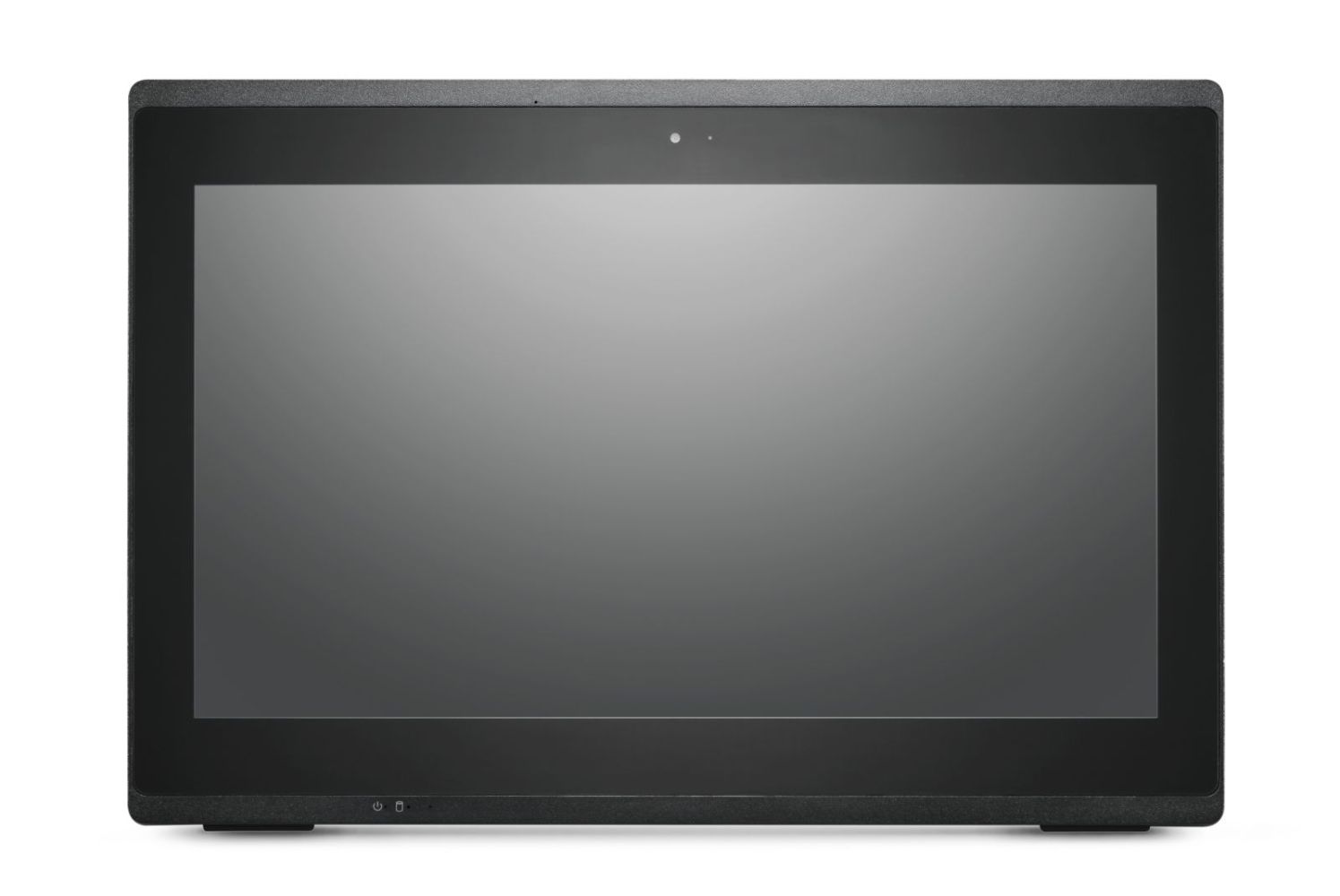

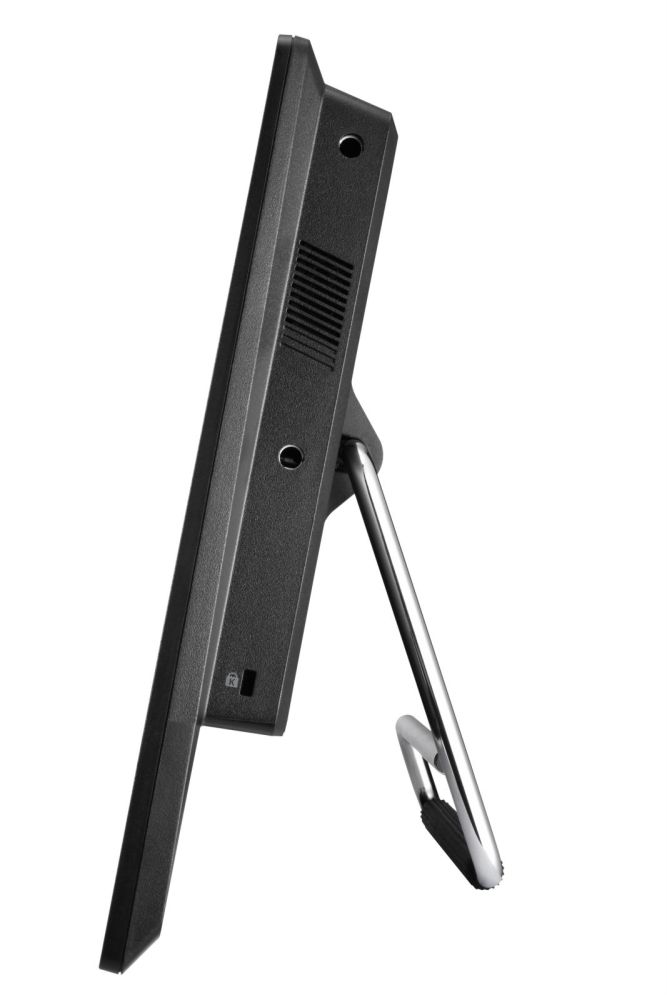

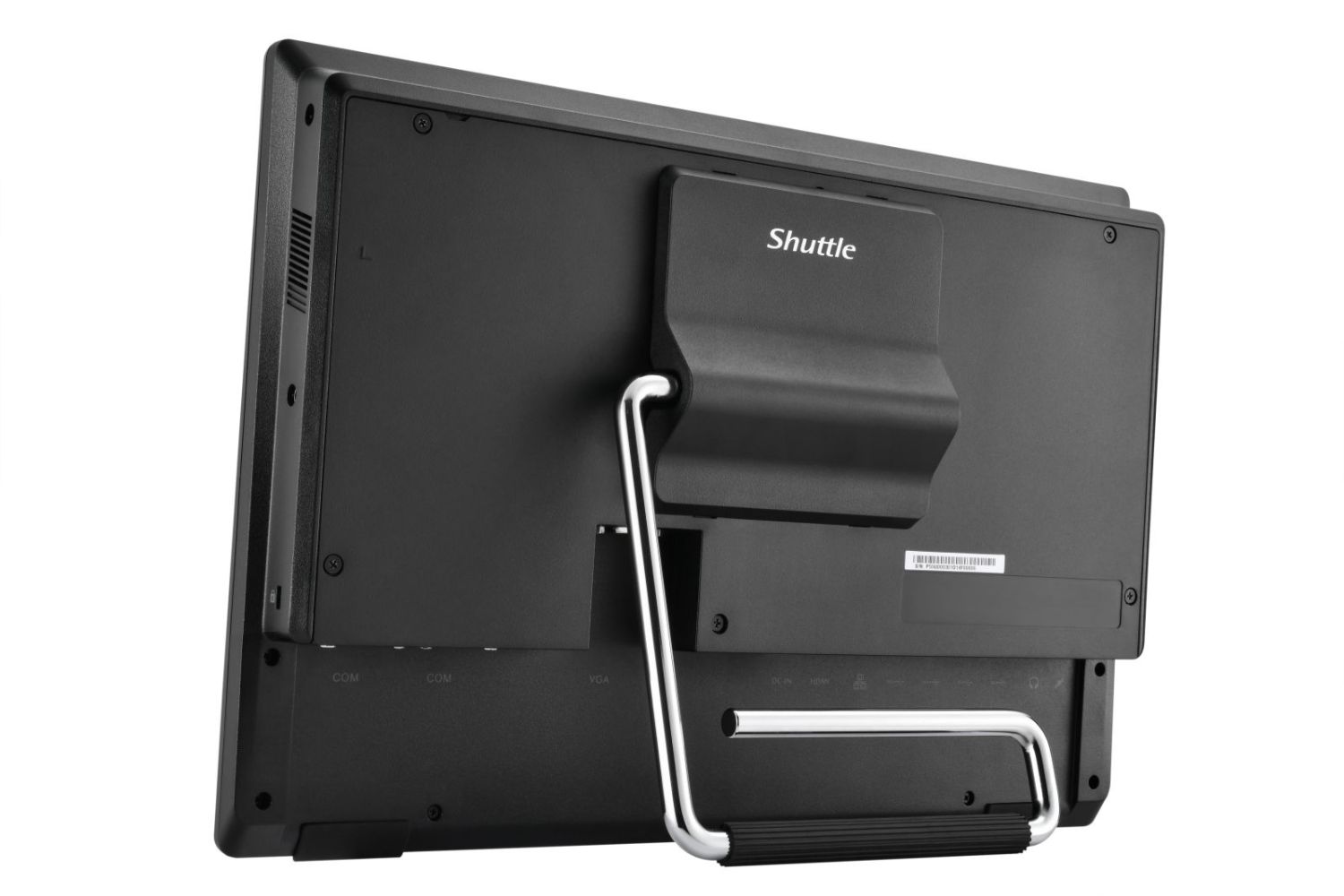

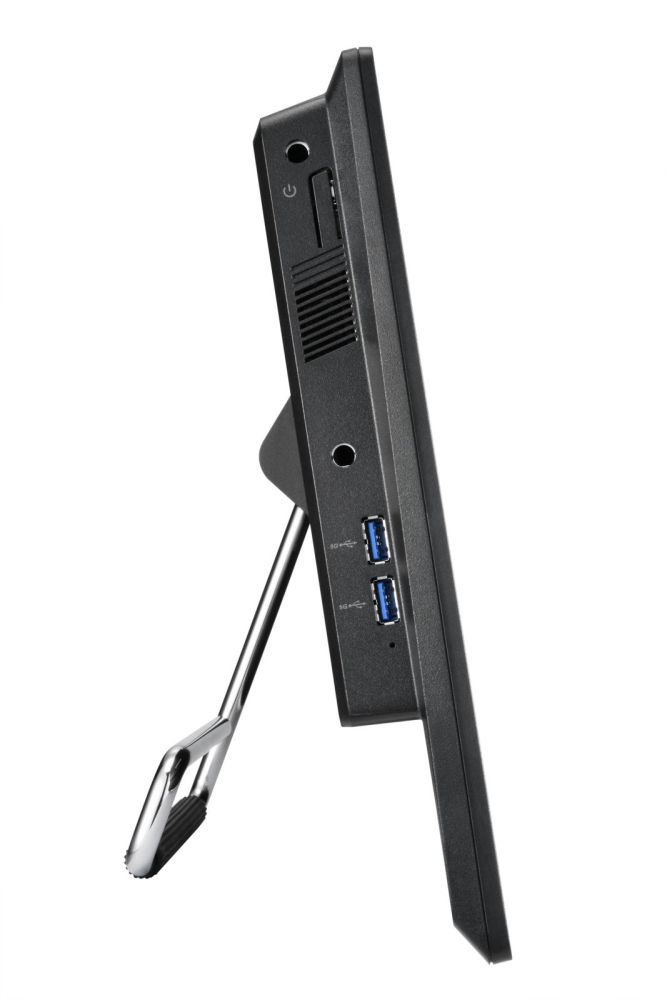

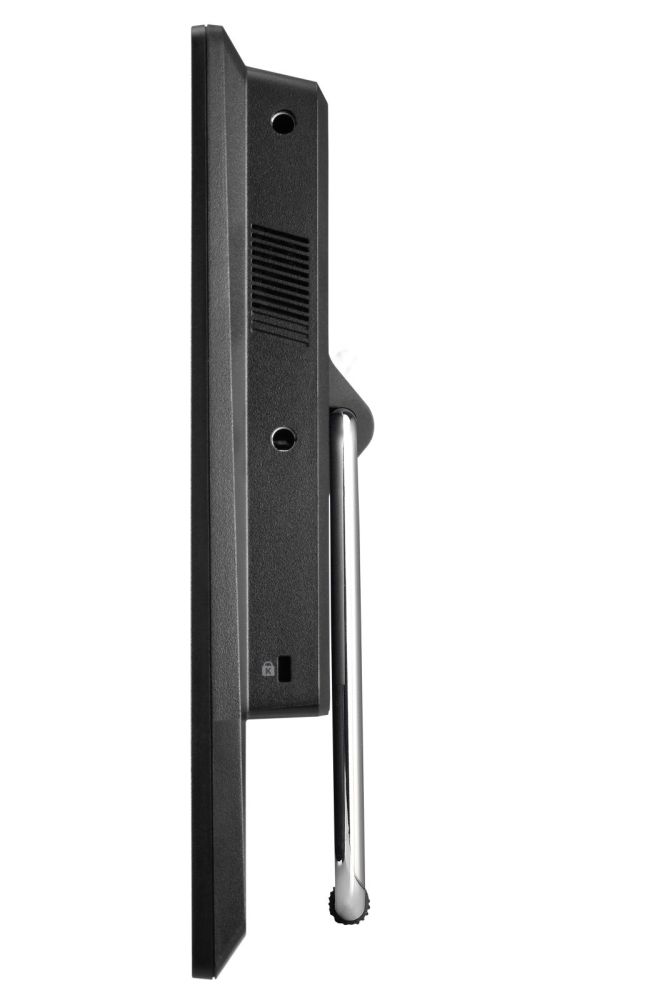

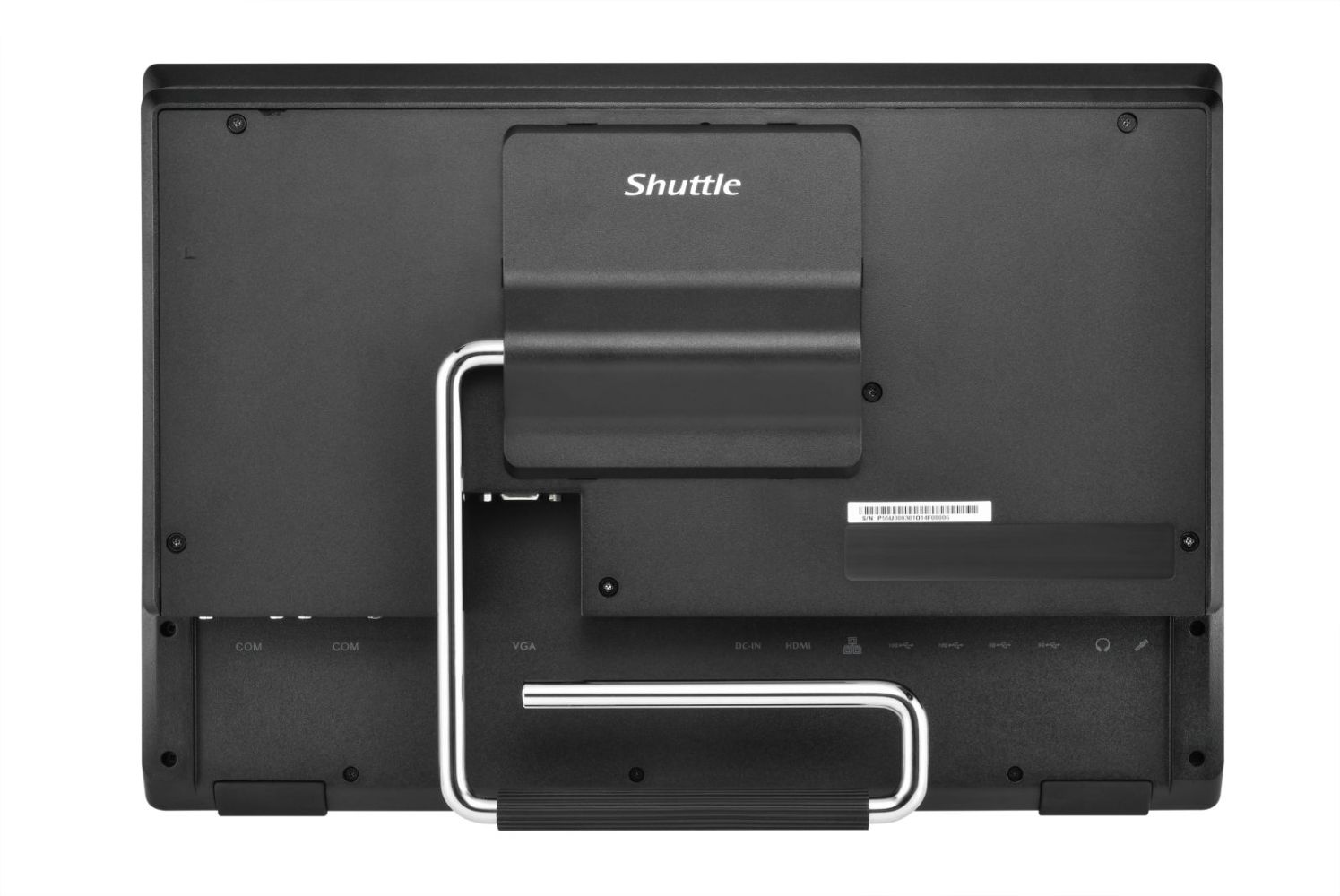

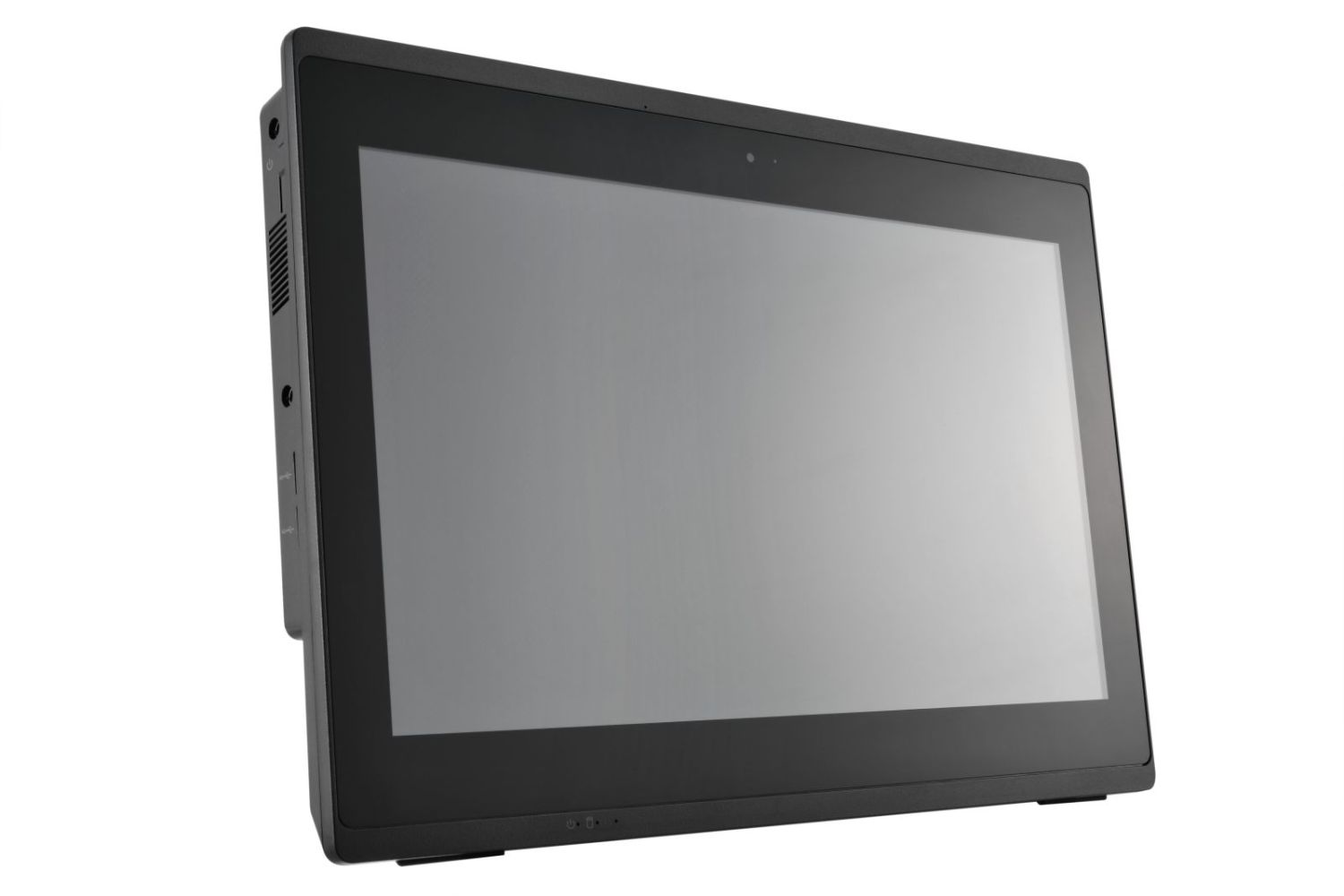

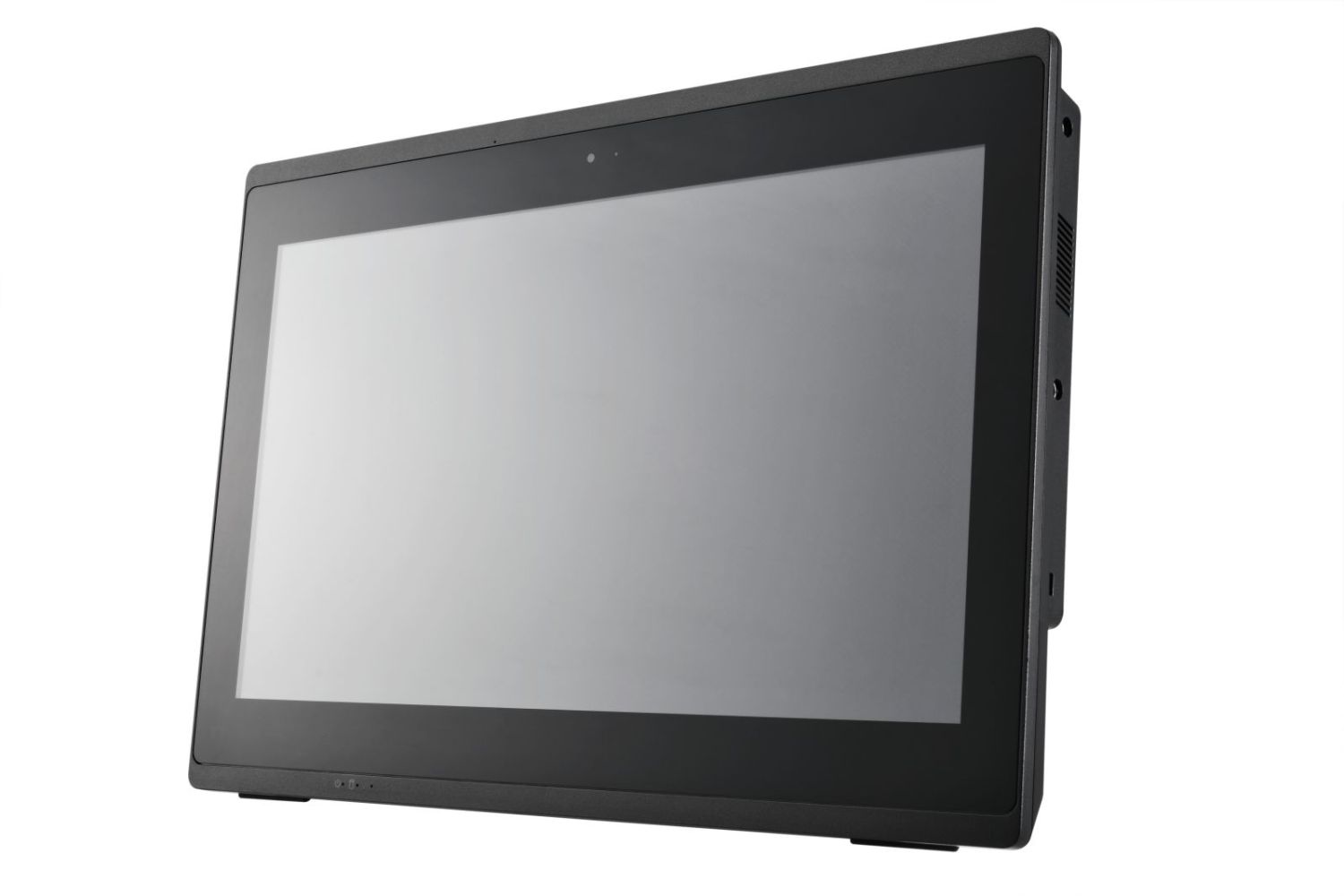

Shuttle P55U Barebone AIO 39,6 cm ( 15,6 inch ) C7305/DDR5 black
|
482,22 EUR |
|
|
( 573,84 EUR incl. VAT ) ≈ £407.48 | ≈ $539.12 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2212524 |
| Mfg Part No: | P55U |
| UPC/EAN: | 0887993007113 |
| Weight: | 4.84 kg |
| Type: | BARE |
Product information for Shuttle P55U:
15.6 TOUCH. 2XCOM-PORT WLAN HDMI
| Audio | |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in speaker(s) | |
| Design | |
| Chassis type | All-in-One |
| Product colour | Black |
| Cooling type | Passive |
| LED indicators | Power, SSD |
| Cable lock slot type | Kensington |
| Panel mounting interface | 100 x 100 mm |
| Product type | All-in-One PC barebone |
| Cable lock slot | |
| VESA mounting | |
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| Touchscreen | |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| Graphics | |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Number of displays supported | 3 |
| On-board graphics card | |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 4800 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| ECC | |
| Non-ECC | |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller model | Realtek RTL8821CE |
| LAN controller | Intel I219V |
| Bluetooth version | 4.2 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Power cord included | |
| AC adapter included | |
| Quick start guide | |
| Drivers included | |
| Performance | |
| Motherboard chipset | Intel SoC |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| BIOS type | AMI EEPROM |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Built-in camera | |
| Trusted Platform Module (TPM) | |

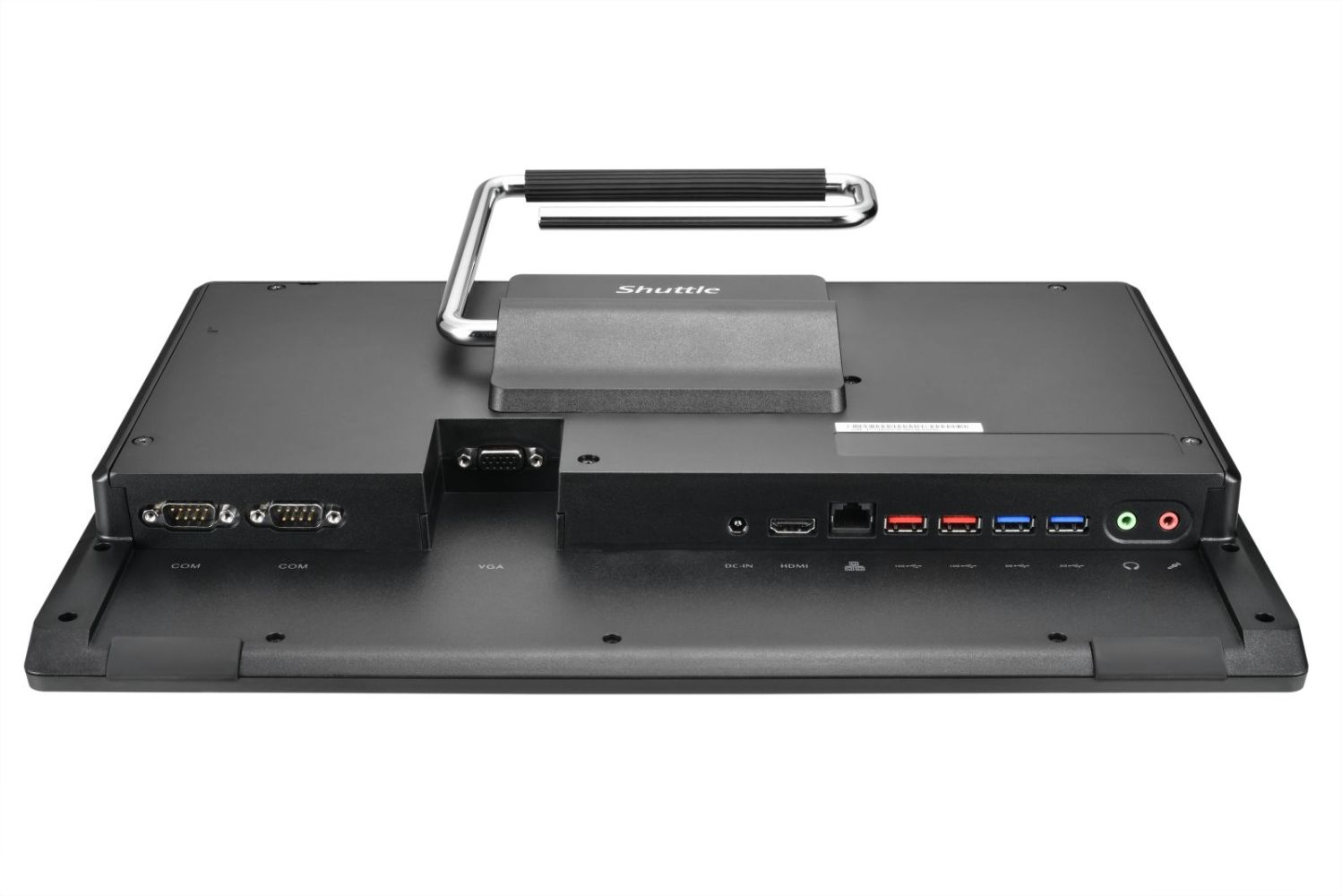

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| COM ports quantity | 2 |
| Microphone in | |
| DC-in jack | |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 90 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 4.74 A |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 7305 |
| Processor cores | 5 |
| Processor threads | 5 |
| Performance cores | 1 |
| Efficient cores | 4 |
| Processor cache | 8 MB |
| Built-in processor | |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express |
| NVMe | |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Technical details | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus |
| Weight & dimensions | |
| Width | 393.6 mm |
| Depth | 39.8 mm |
| Height | 272.5 mm |
| Weight | 3.25 kg |
| Package weight | 4.5 kg |
