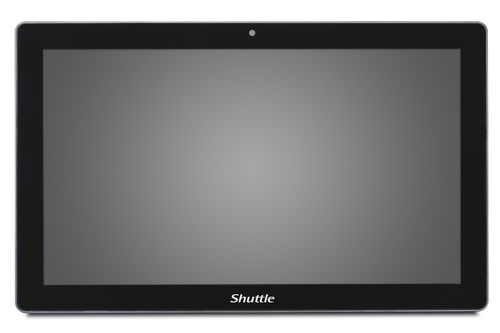

Shuttle P21WL01-I3XA I3-8145UE 90W EXT
|
1.099,80 EUR |
|
|
( 1.308,76 EUR incl. VAT ) ≈ £920.53 | ≈ $1,208.68 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1204443 |
| Mfg Part No: | P21WL01-I3XA |
| UPC/EAN: | 4046047103744 |
| Weight: | 9.89 kg |
| Type: | CMU |
Product information for Shuttle P21WL01-I3XA:
| Audio | |
| Built-in speaker(s) | |
| Camera | |
| Total megapixels | 2 MP |
| Camera resolution | 1920 x 1080 pixels |
| Camera HD type | Full HD |
| Built-in camera | |
| Certificates | |
| Certification | CE, FCC Class A, VCCI, BSMI, CB, cTUVus, BSMI |
| Design | |
| Housing material | Aluminium |
| Product colour | Black, Blue |
| Panel mounting interface | 100 x 100 mm |
| Country of origin | China |
| VESA mounting | |
| On/off button | |
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display brightness | 300 cd/m² |
| Panel type | LCD |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 89° |
| Viewing angle, vertical | 89° |
| Touchscreen | |
| Multi-touch | |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 620 |
| Discrete graphics card | |
| On-board graphics card | |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Memory | |
| Internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory form factor | DIMM/SO-DIMM |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Realtek |
| WLAN controller model | Realtek RTL8821CE |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth version | 4.2 |
| Wi-Fi | |
| Ethernet LAN | |
| Bluetooth | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Performance | |
| Product type | All-in-One PC |
| Market positioning | Business |
| Motherboard chipset | Intel SoC |
| Trusted Platform Module (TPM) | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Headphone outputs | 1 |
| Serial ports quantity | 3 |
| DVI port | |
| Microphone in | |
| DC-in jack | |
| Power | |
| AC adapter power | 90 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 8th gen Intel® Core™ i3 |
| Processor model | i3-8145UE |
| Processor cores | 2 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 2.2 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 2.4 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down frequency | 1.6 GHz |
| Configurable TDP-down | 12.5 W |
| Processor special features | |
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | |
| Intel Trusted Execution Technology | |
| Intel VT-x with Extended Page Tables (EPT) | |
| Intel TSX-NI | |
| Intel Software Guard Extensions (Intel SGX) | |
| Intel 64 | |
| Execute Disable Bit | |
| Idle States | |
| Embedded options available | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel Virtualization Technology (VT-x) | |
| Software | |
| Operating system installed | |
| Storage | |
| Total storage capacity | 120 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 2 |
| Total SSDs capacity | 120 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 120 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Optical drive type | |
| Weight & dimensions | |
| Width (without stand) | 543 mm |
| Depth (without stand) | 49.9 mm |
| Height (without stand) | 334 mm |
| Weight (without stand) | 7.6 kg |
Questions & answers
What is the delivery time of Shuttle P21WL01-I3XA I3-8145UE 90W EXT?
The article Shuttle P21WL01-I3XA I3-8145UE 90W EXT is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Shuttle P21WL01-I3XA to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Shuttle P21WL01-I3XA I3-8145UE 90W EXT always at the best possible price. We can give you a discount of 2% on Shuttle P21WL01-I3XA I3-8145UE 90W EXT if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
