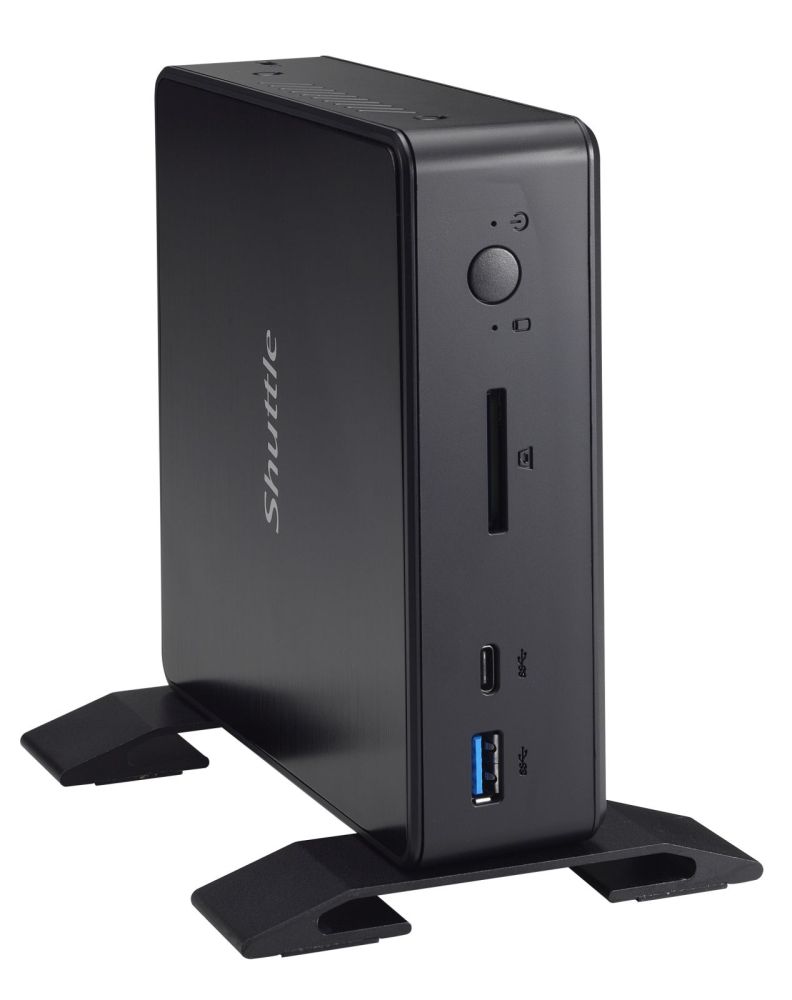

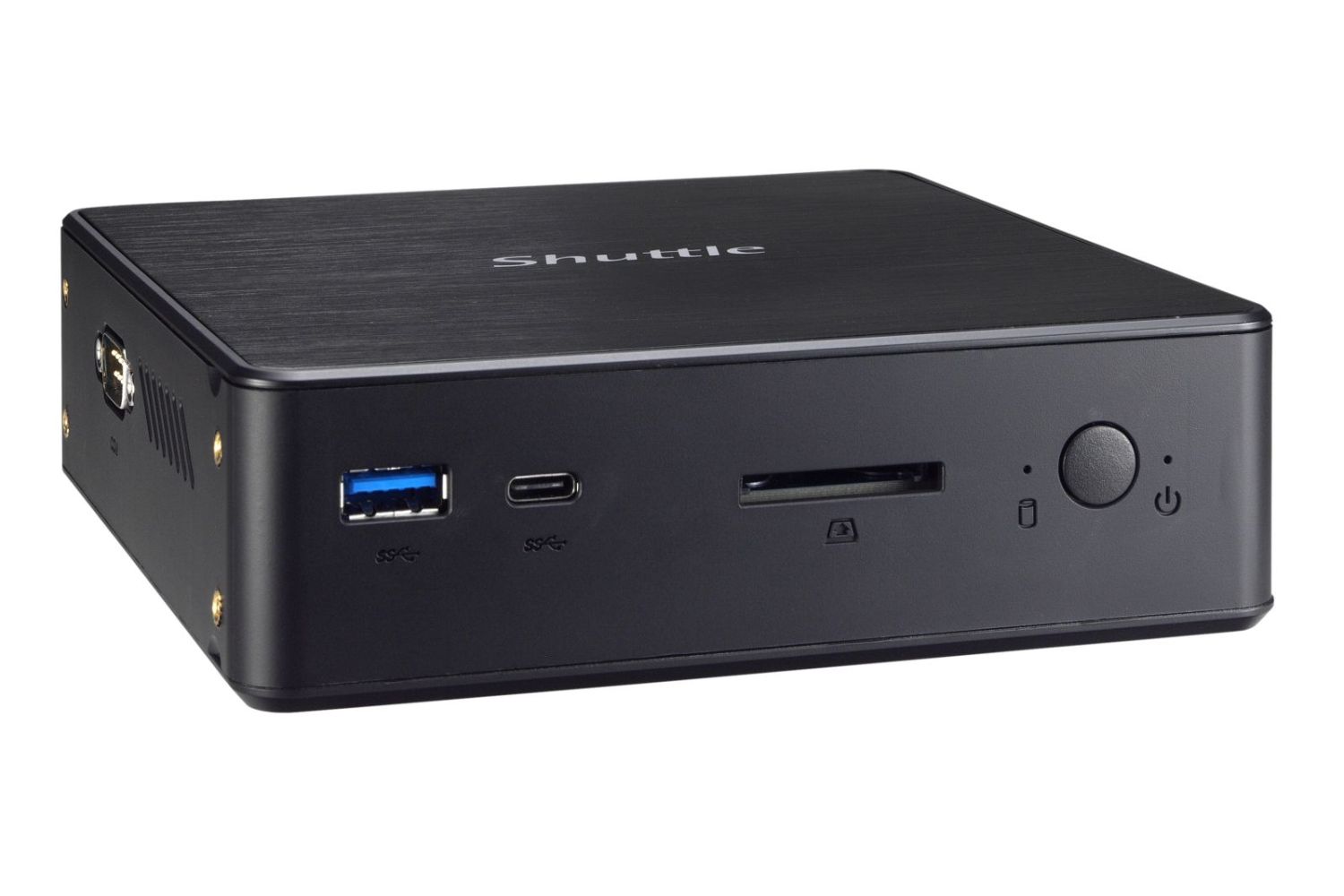

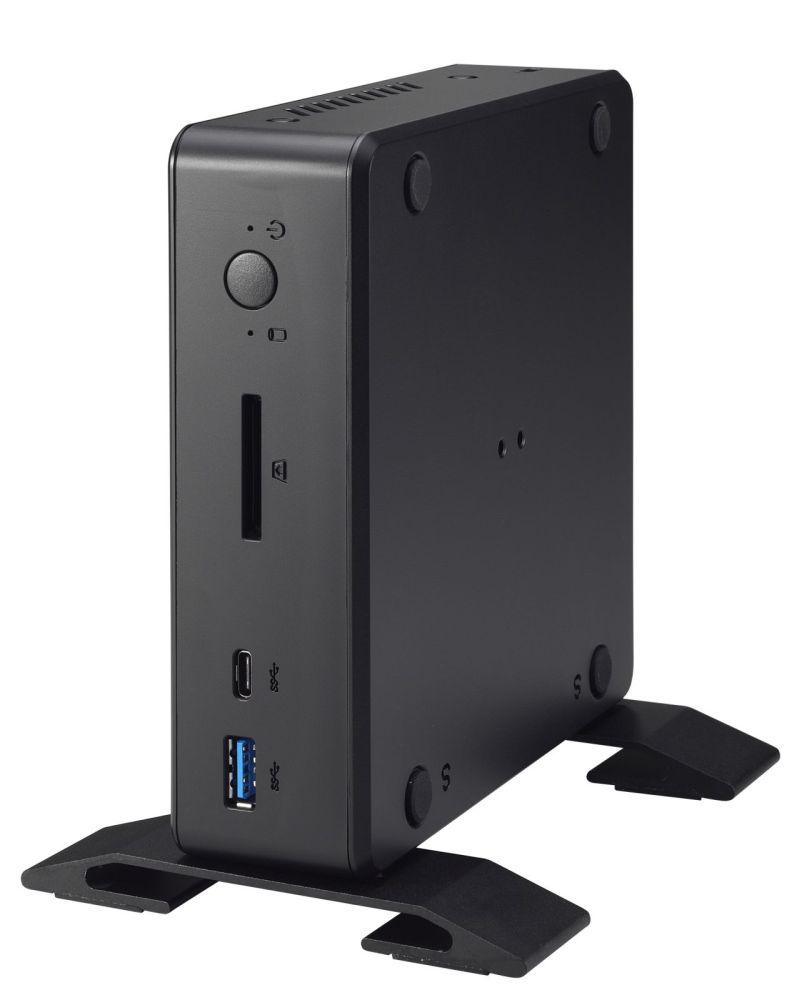

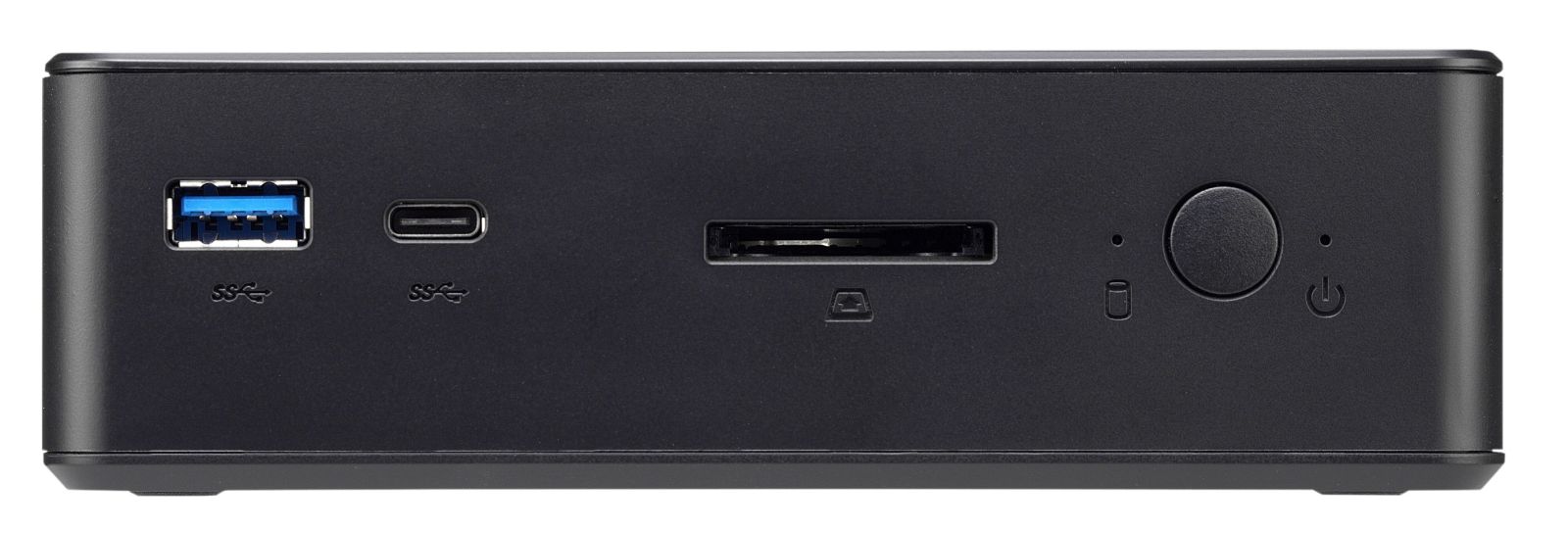

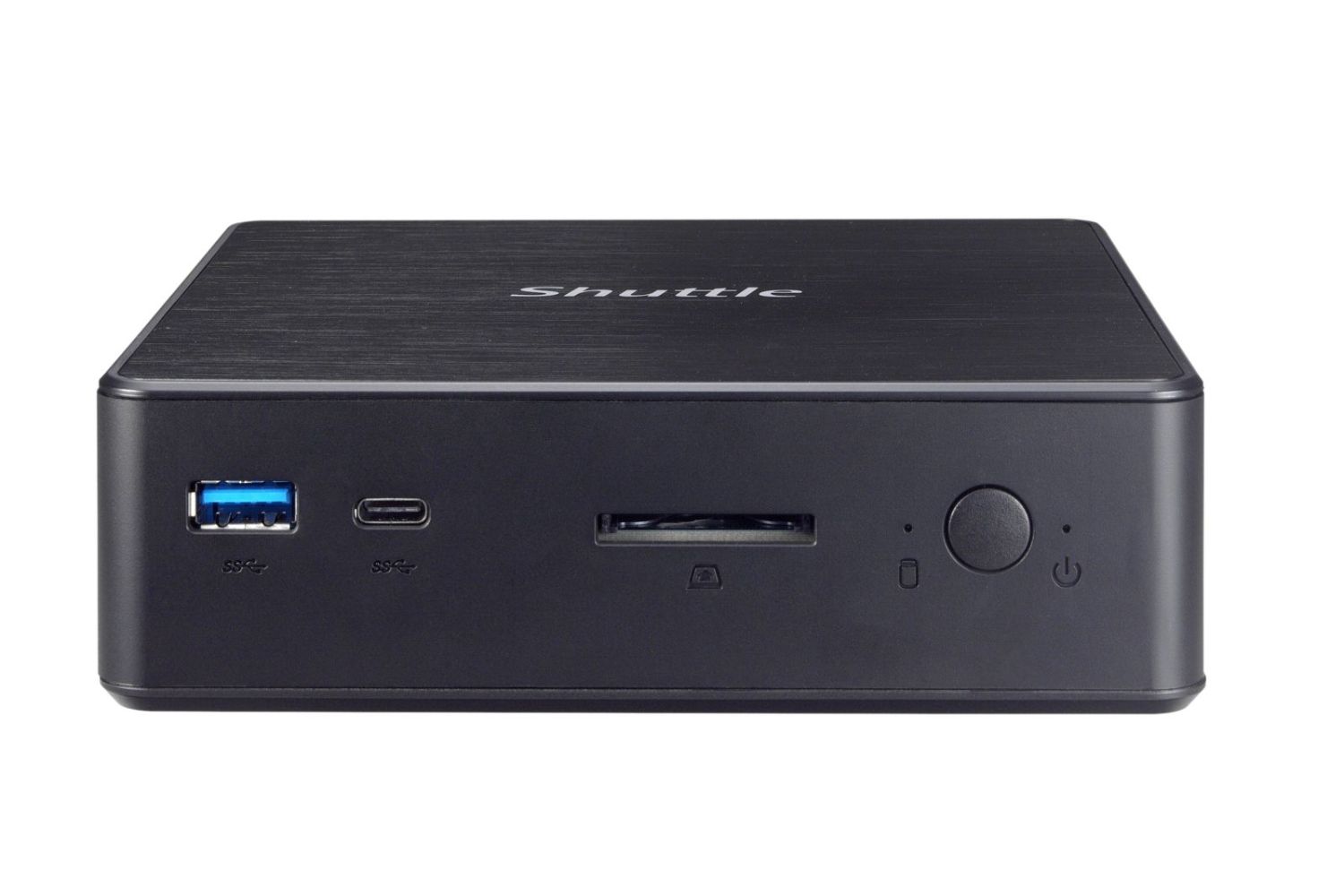

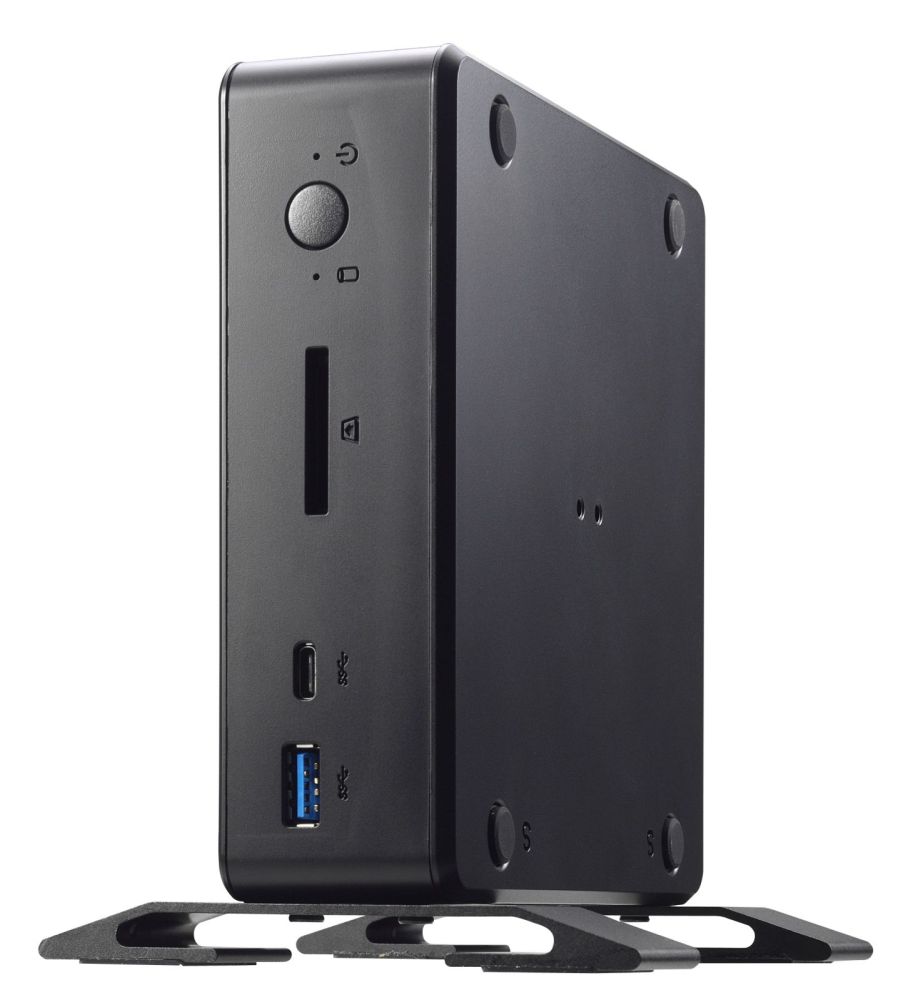

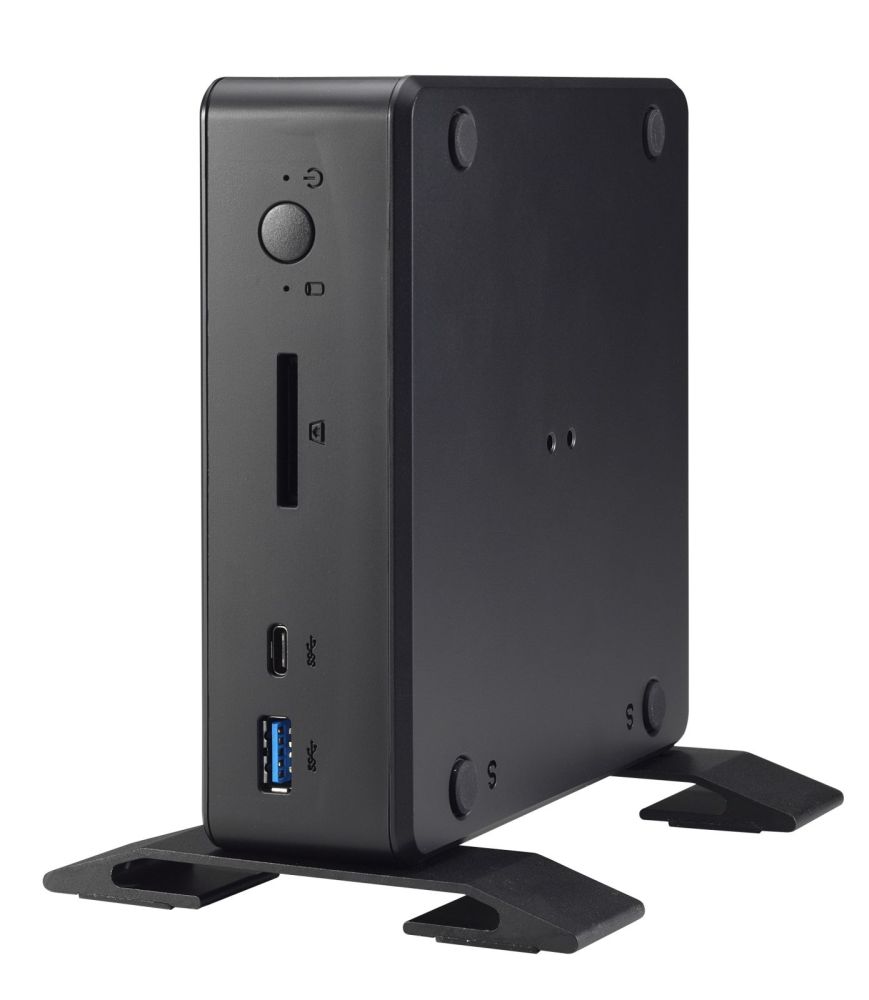

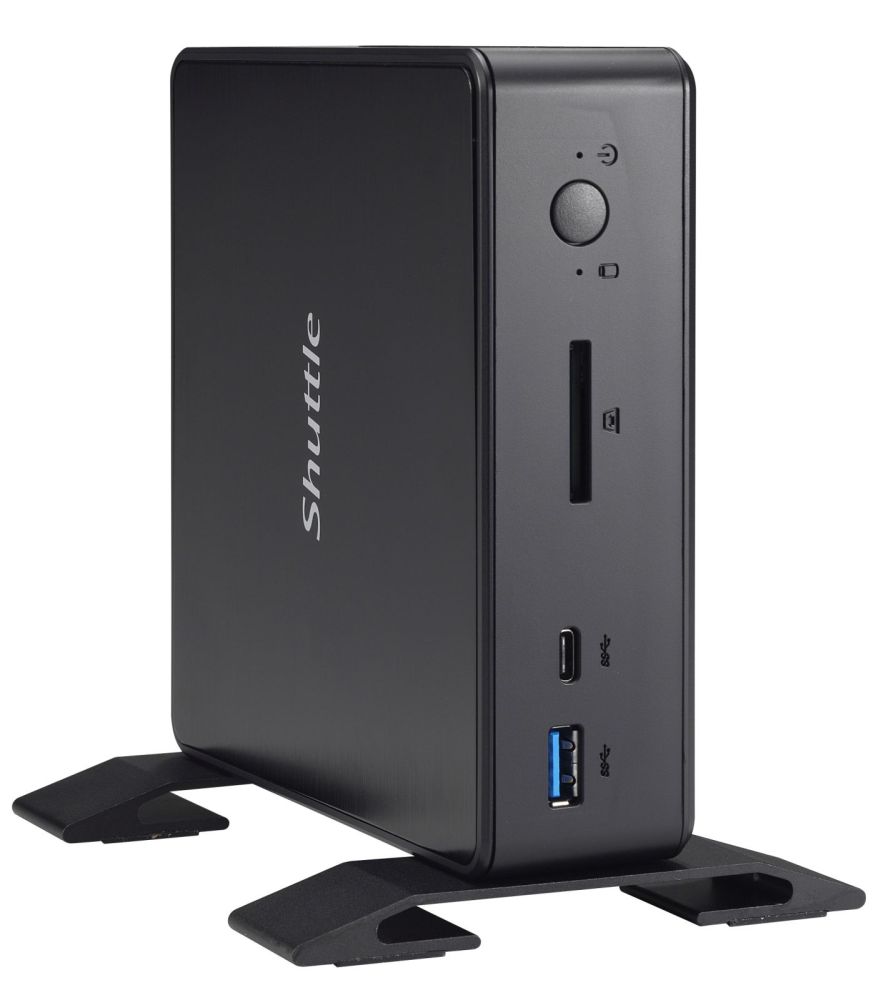

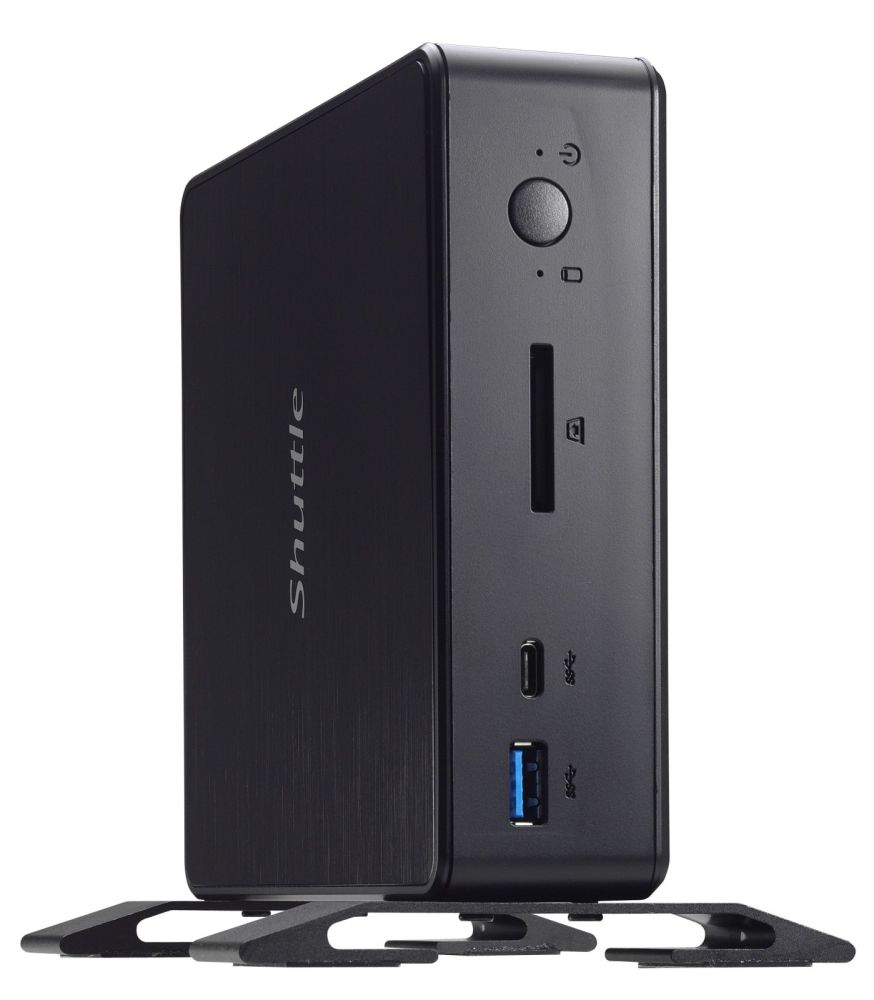

Shuttle XPCIAO NC1010BA 4205U/4GB/64GBSSD/black W10P
|
338,51 EUR 338,51 EUR |
|
|
( 402,83 EUR incl. VAT ) ≈ £285.03 | ≈ $380.15 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1604028 |
| Mfg Part No: | NC1010BA |
| UPC/EAN: | 4046047103515 |
| Weight: | 1.45 kg |
Further Small Form Factor from ShuttleFurther products in category Small Form Factor
All products of Shuttle
| Audio | |
| Audio chip | Realtek ALC662 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, BSMI, RCM, RED, VCCI CB, BSMI, ETL ErP |
| Design | |
| Chassis type | Mini PC |
| Volume | 0.847 L |
| Placement supported | Horizontal/Vertical |
| Number of 2.5" bays | 1 |
| Cable lock slot type | Kensington |
| Product colour | Black |
| VESA mounting | |
| Cable lock slot | |
| Display | |
| Display included | |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics 610 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 900 MHz |
| Maximum on-board graphics card memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA1 |
| Discrete graphics card | |
| On-board graphics card | |
| Logistics data | |
| Harmonized System (HS) code | 84715000 |
| Memory | |
| Internal memory | 4 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2133 MHz |
| Non-ECC | |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | |
| Wi-Fi | |
| Wake-on-LAN ready | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| VESA mount included | |
| Packaging data | |
| Package weight | 1.2 kg |
| Performance | |
| BIOS type | AMI |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | |

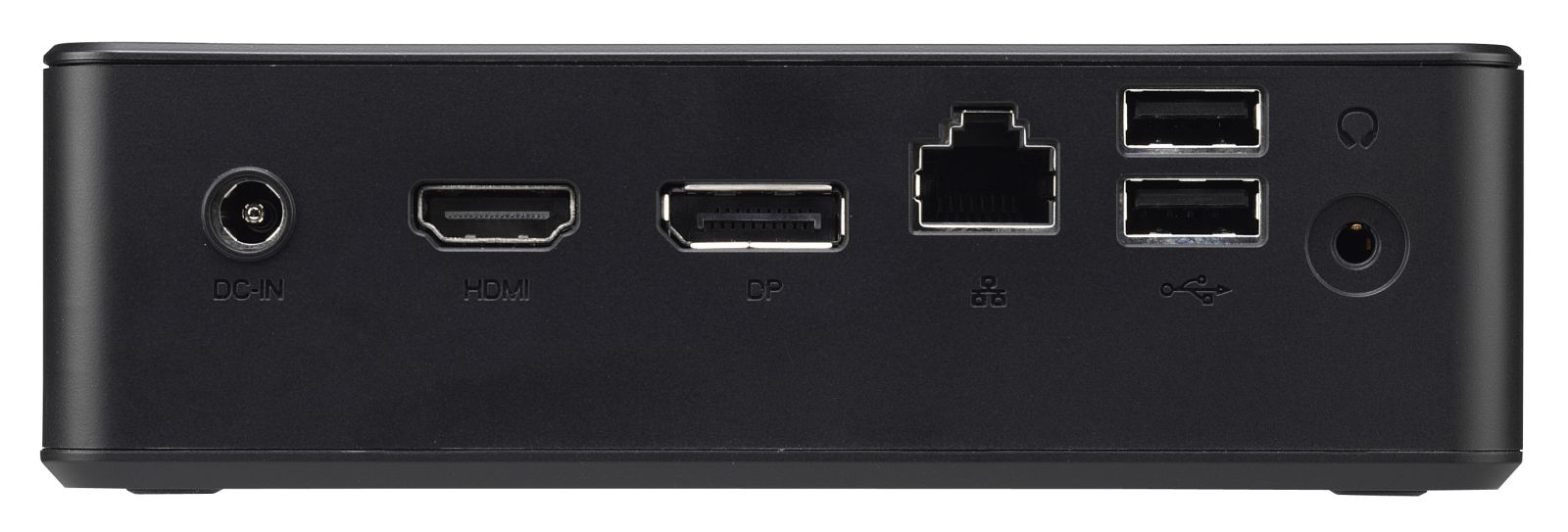

| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | |
| Microphone in | |
| DVI port | |
| DC-in jack | |
| Power | |
| Power supply | 65 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 4205U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.8 GHz |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| System bus rate | 4 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Whiskey Lake |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-down | 12.5 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Tjunction | 100 °C |
| PCI Express slots version | 2.0 |
| Maximum number of PCI Express lanes | 12 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| Number of processors installed | 1 |
| Processor socket | BGA 1528 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 2133,1866 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Processor special features | |
| Processor package size | 46x24 mm |
| Supported instruction sets | SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Processor ARK ID | 189309 |
| Intel 64 | |
| Enhanced Intel SpeedStep Technology | |
| Embedded options available | |
| Intel® Clear Video HD Technology (Intel® CVT HD) | |
| Intel Clear Video Technology | |
| Intel VT-x with Extended Page Tables (EPT) | |
| Intel TSX-NI | |
| Idle States | |
| Thermal Monitoring Technologies | |
| Intel® AES New Instructions (Intel® AES-NI) | |
| Intel® Secure Key | |
| Intel® OS Guard | |
| Intel Trusted Execution Technology | |
| Execute Disable Bit | |
| Intel Flex Memory Access | |
| Intel Software Guard Extensions (Intel SGX) | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel Virtualization Technology (VT-x) | |
| Intel® Smart Response Technology | |
| Intel® Turbo Boost Technology | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | |
| Intel® Quick Sync Video Technology | |
| Intel® My WiFi Technology (Intel® MWT) | |
| Intel® Identity Protection Technology (Intel® IPT) | |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Storage | |
| Total storage capacity | 120 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 120 GB |
| SSD form factor | M.2 |
| Compatible memory cards | SD, SDHC, SDXC |
| Optical drive type | |
| Card reader integrated | |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 142 mm |
| Depth | 142 mm |
| Height | 42 mm |
| Weight | 400 g |
Questions & answers
What is the delivery time of Shuttle XPCIAO NC1010BA 4205U/4GB/64GBSSD/black W10P?
The article Shuttle XPCIAO NC1010BA 4205U/4GB/64GBSSD/black W10P is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Shuttle NC1010BA to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Shuttle XPCIAO NC1010BA 4205U/4GB/64GBSSD/black W10P always at the best possible price. We can give you a discount of 2% on Shuttle XPCIAO NC1010BA 4205U/4GB/64GBSSD/black W10P if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
