Shuttle NA10H7 Barebone black (AMD R7-8845HS) 24/7, NPU

Your rating:
Average rating
product review for Shuttle NA10H7 Barebone black (AMD R7-8845HS) 24/7, NPU
( 4.3 / 5 ) 3 ratings
Shuttle NA10H7
This image may differ from the desired article.
Shuttle NA10H7Shuttle NA10H7Shuttle NA10H7Shuttle NA10H7Shuttle NA10H7Shuttle NA10H7
412,28 EUR
( 490,61 EUR incl. VAT )
≈ £345.08  |  ≈ $453.10
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >10 pieces
1x Shuttle NA10H7 Barebone black (AMD R7-8845HS) 24/7, NPU
Datasheet:file_download Download
Lieske Part No.:1240358
Mfg Part No: NA10H7
UPC/EAN: 0887993007403
Weight:1.8 kg
Type:BARE

Product information for Shuttle NA10H7:

The Shuttle XPC nano Barebone NA10H7 is a compact mini-PC in 1-litre format, developed based on the AMD Ryzen™ 7-8845HS APU with Zen-4 microarchitecture. The device is designed as a Barebone system, i.e. it is delivered without an operating system and requires installation of software such as Windows 11 x64 or supported Linux distributions. It is designed for 24/7 continuous operation and is suitable for applications in office, content creation, AIoT, retail, as well as scenarios requiring high productivity with multiple displays.

Applications

The NA10H7 is suitable for various application scenarios, particularly where a combination of compact design, high computing performance and multiple connection options is required. The support for up to four independent 4K/UHD displays makes it especially interesting for workstations requiring increased screen area, such as in the financial trading sector, for software developers, graphic designers, video editors, or in control rooms and monitoring systems. The integrated NPU (Neural Processing Unit) with 16 TOPS performance also enables efficient processing of AI-based tasks, with the total performance of CPU, GPU and NPU reaching up to 39 TOPS.

Functions and equipment in detail

The system features an integrated AMD Ryzen™ 7-8845HS processor with 8 cores and 16 threads. The clock frequency is 3.8 GHz (base) and can increase up to 5.1 GHz in boost mode. The processor features 16 MB L3 cache and 8 MB L2 cache and is designed with a Thermal Design Power (TDP) of 45 W. The integrated graphics are based on the AMD Radeon 780M, supporting up to four UHD displays at 60 Hz. Graphics acceleration enables hardware decoding and encoding of video codecs such as AV1 and H.265.

Technology explained simply

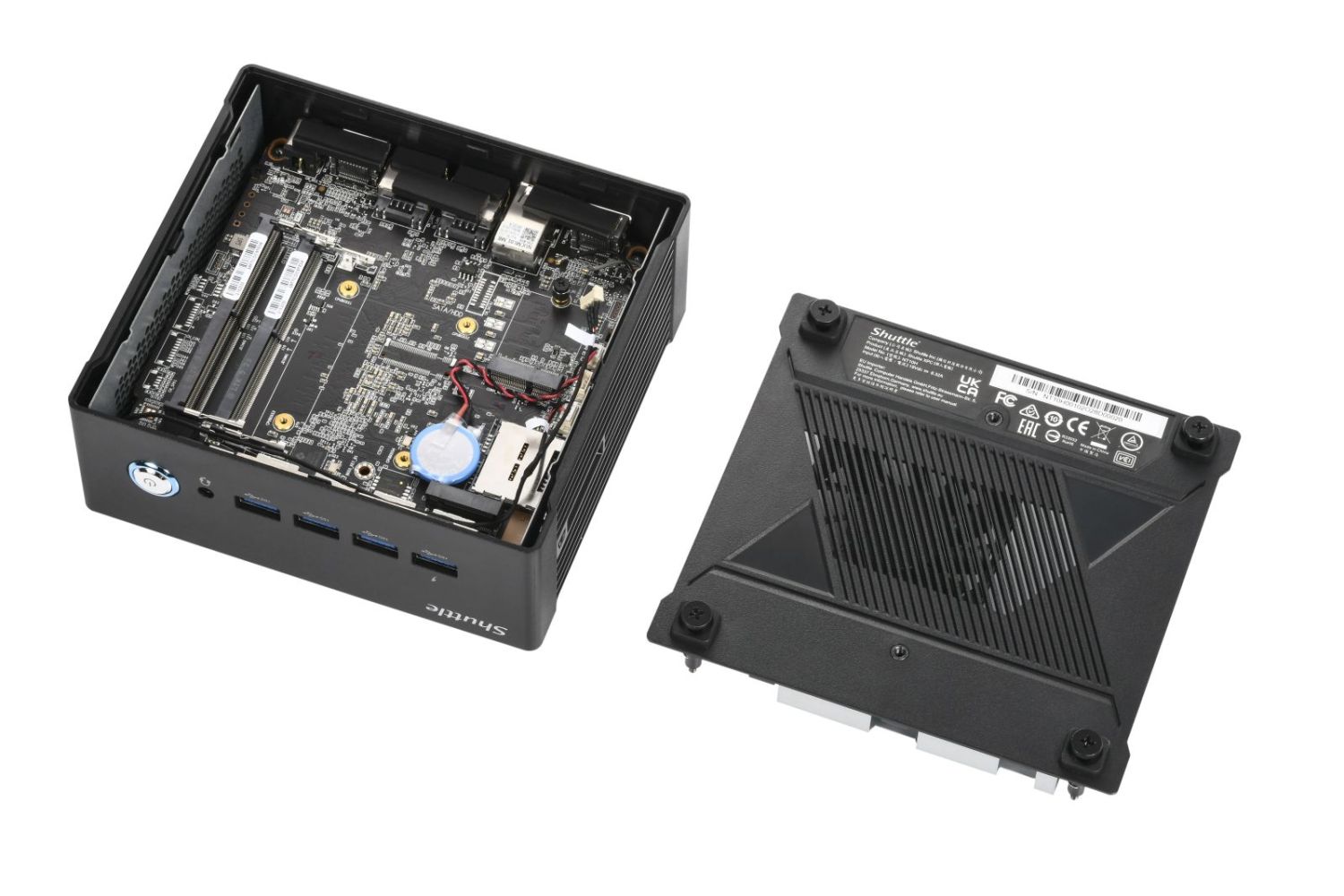

The NA10H7 offers two SO-DIMM memory slots for DDR5-SDRAM with maximum support for 64 GB of RAM. The supported memory bandwidth is 5600 MHz, ensuring fast data transfer. The memory architecture is dual-channel, further increasing performance. Additionally, an integrated SD card reader is located on the left side of the housing.

Compatibility and accessories

The device is equipped with an external 120-W power supply supporting an input voltage of 100–240 V and a frequency of 50/60 Hz. The output voltage is 19 V at a current of 6.32 A. Power supply is via a 3-pole AC cable with grounding contact. Network functions include two 2.5-Gbit/s Ethernet ports (RJ-45) with a Realtek RTL8125B controller.

Mounting and installation

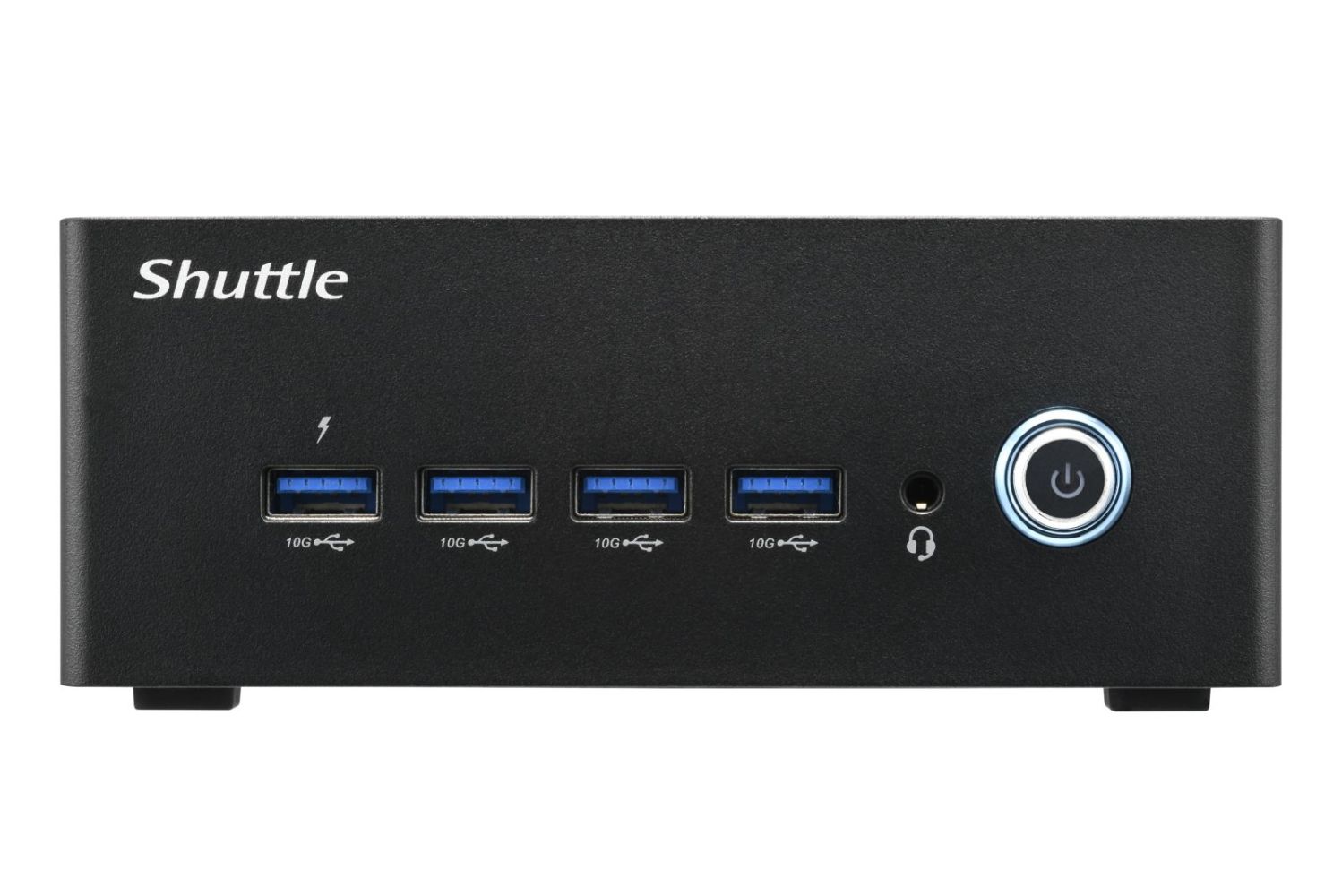

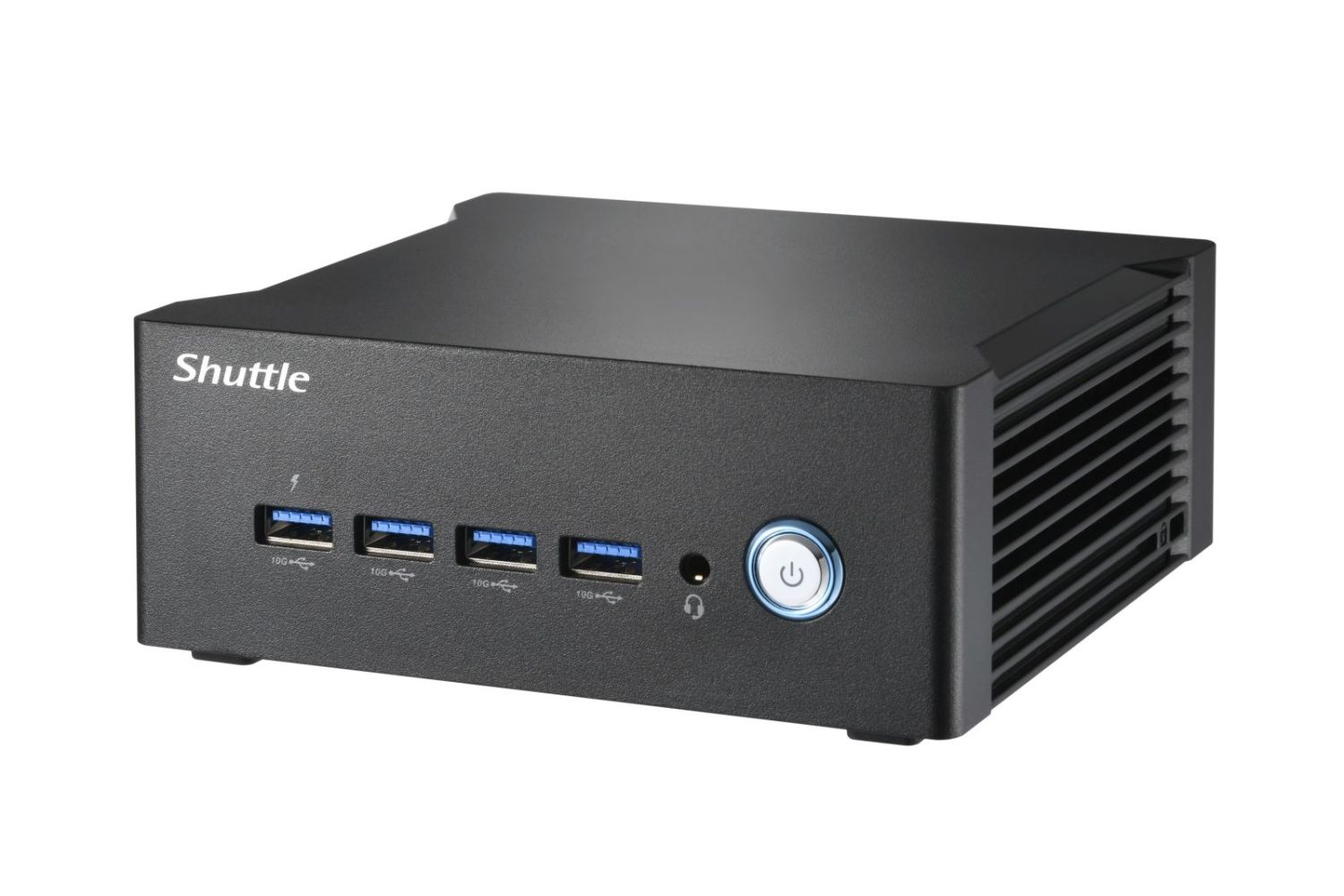

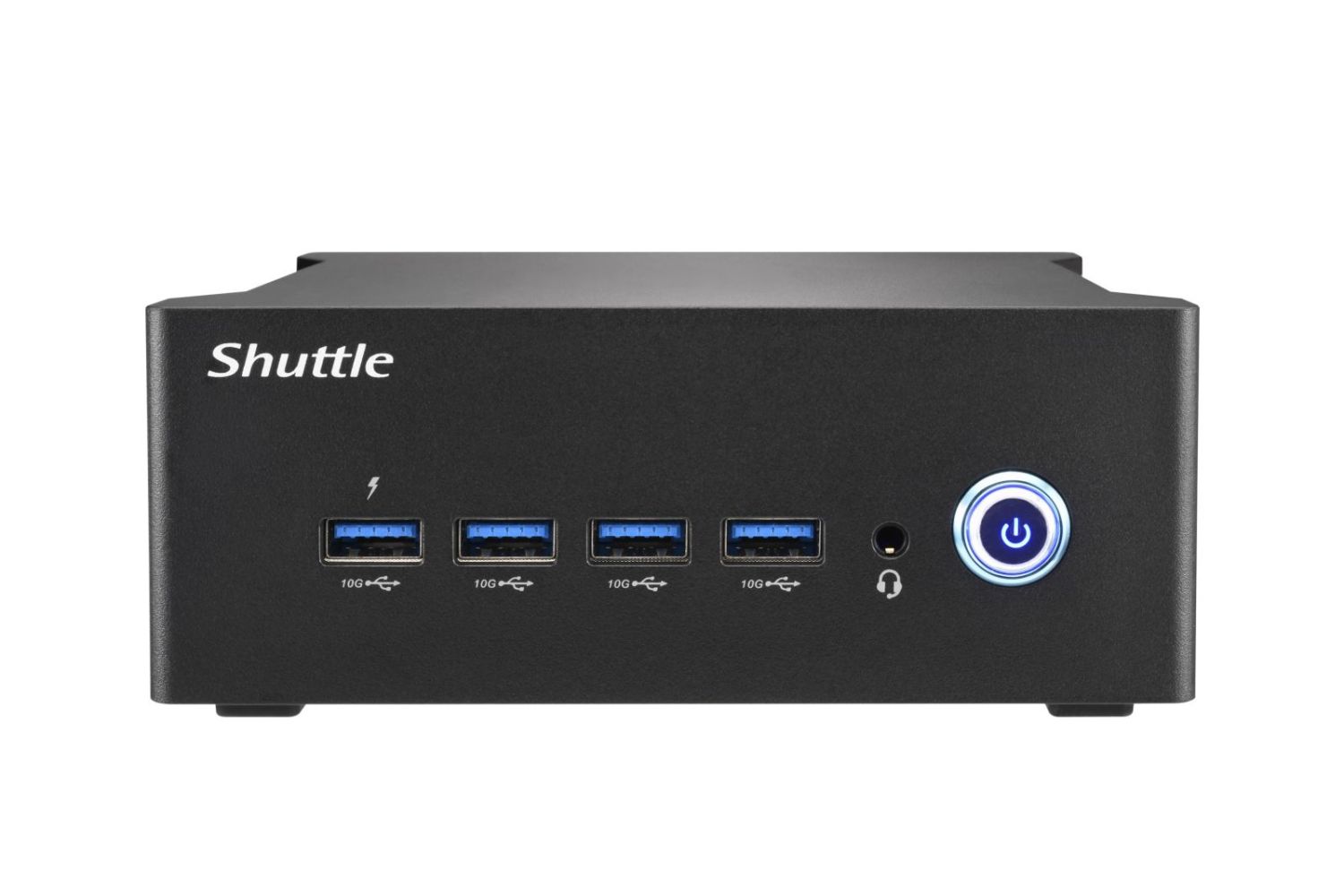

The housing is made of plastic and is black in colour. Dimensions are 132 mm (width) × 143 mm (depth) × 55 mm (height), weight is 800 g. Cooling is active via a heatpipe system with two fans (80 mm for the processor, 60 mm for the housing area). The device features a VESA mounting interface (75 × 75 mm and 100 × 100 mm), enabling wall or monitor mounting. Additionally, a Kensington-style cable lock slot is provided to protect the device against theft. The front side features a power button with LED status indicator.

Advantages in operation

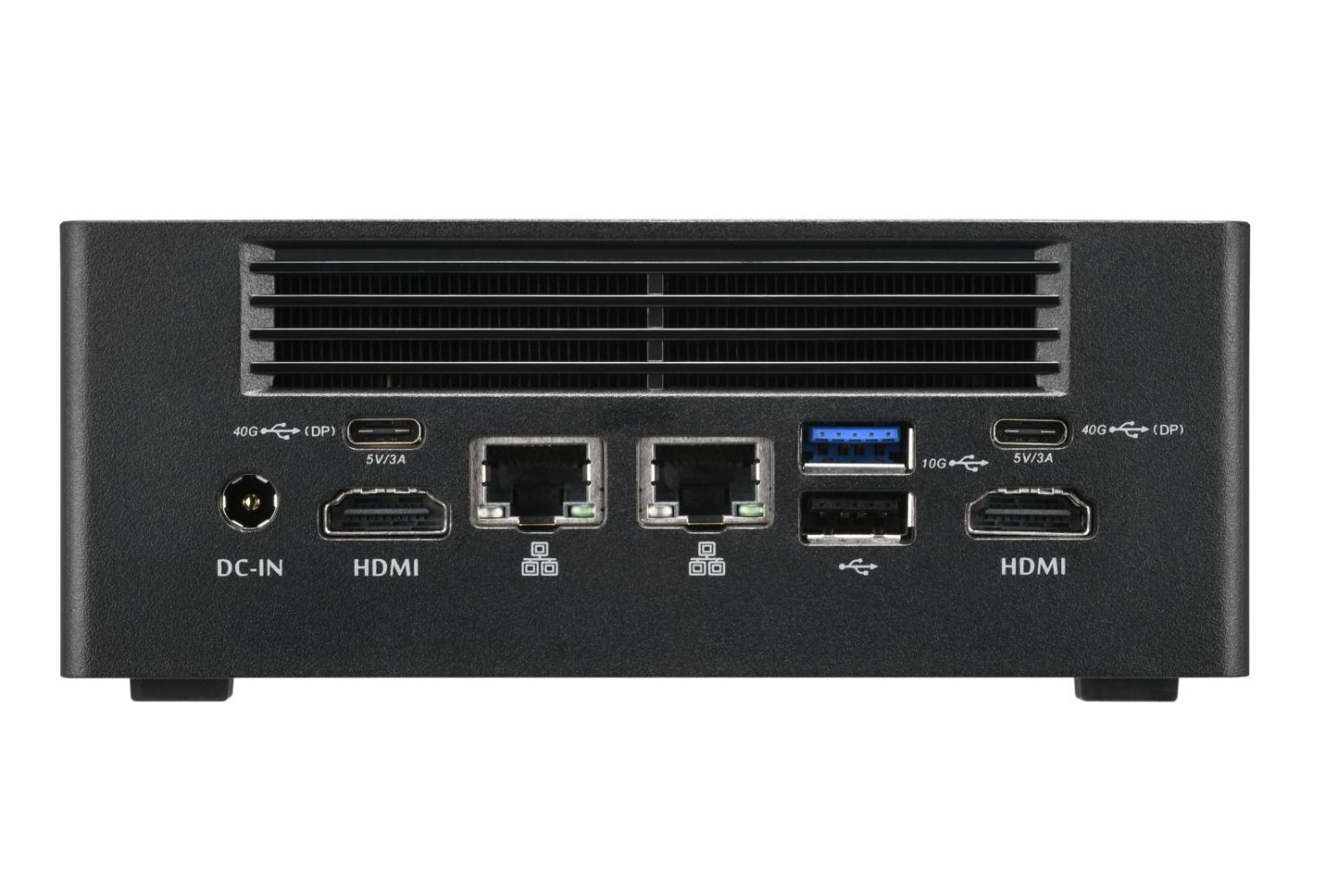

The NA10H7 offers a high density of connections in a compact format. In addition to two HDMI 2.0 ports (version 2.0) and two USB4 ports (Gen 2×2, max. 40 Gbit/s, with DisplayPort 1.4 and 3A Power Delivery), there are five USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports and one USB 2.0 port. A 3.5-mm combo jack for headphones and microphone is also integrated. Support for Windows 11 x64 and Linux (64-bit), as well as driver availability via the website go.shuttle.eu/NA10H, simplifies system configuration. Compliance with standards such as CE, FCC, BSMI, RoHS, cTUVus and CB, as well as certification according to ENERGY STAR and ErP, underline the quality and safety of the device. The device is designed for operating temperatures from 0 to 40 °C and relative humidity from 10 to 90 % (non-condensing).

Scope of delivery

The scope of delivery includes the Barebone system, an external 120-W power supply, a power cable and a quick start guide.

Audio
Built-in speaker(s)No
Design
Chassis type1L sized PC
Product colourBlack
Cooling typeActive
LED indicatorsPower
Housing materialPlastic
Cable lock slot typeKensington
Panel mounting interface75 x 75,100 x 100 mm
Product typeMini PC barebone
Cable lock slotYes
VESA mountingYes
Graphics
Graphics card familyAMD
On-board graphics card modelAMD Radeon 780M
Number of displays supported4
On-board graphics cardYes
Logistics data
Harmonized System (HS) code84714900
Memory
Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Supported memory clock speeds5600 MHz
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Memory voltage1.1 V
Internal memory installedNo
Non-ECCYes
Network
LAN controllerRealtek RTL8125B
Ethernet LANYes
Wi-FiNo
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Packaging content
Power cord includedYes
AC adapter includedYes
Quick start guideYes
Performance
BIOS typeUEFI AMI
Trusted Platform Module (TPM) version2.0
Audio chipRealtek ALC269
Trusted Platform Module (TPM)Yes
Ports & interfaces
USB 2.0 ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity5
USB4 Gen 2x2 ports quantity2
HDMI ports quantity2
HDMI version2.0
Ethernet LAN (RJ-45) ports2
Combo headphone/mic portYes
Power
Power supply typeExternal AC adapter
Power supply120 W
Number of power supply units1
AC input voltage100 - 240 V
AC input frequency50/60 Hz
AC adapter output voltage19 V
AC adapter output current6.32 A
Processor
Processor manufacturerAMD
Processor familyAMD Ryzen™ 7
Processor generationAMD Ryzen 8000 Series
Processor model8845HS
Processor cores8
Processor threads16
Processor boost frequency5.1 GHz
Processor frequency3.8 GHz
L2 cache8 MB
L3 cache16 MB
Thermal Design Power (TDP)45 W
Built-in processorYes
Software
Windows operating systems supportedWindows 11 x64
Linux operating systems supportedYes
Storage
Supported storage drive typesSSD
Storage drive sizes supportedM.2
SSD form factorM.2
Storage drive interfacePCI Express
Compatible memory cardsSD
Storage drives installedNo
NVMeYes
Card reader integratedYes
Sustainability
Sustainability certificatesENERGY STAR, ErP
Technical details
Compliance certificatesBSMI, CB, CE, Federal Communications Commission (FCC), RoHS, cTUVus
Weight & dimensions
Width132 mm
Depth143 mm
Height55 mm
Weight800 g
Package weight1.7 kg


Product data sheet
Datasheet for Shuttle NA10H7, EAN: 0887993007403
